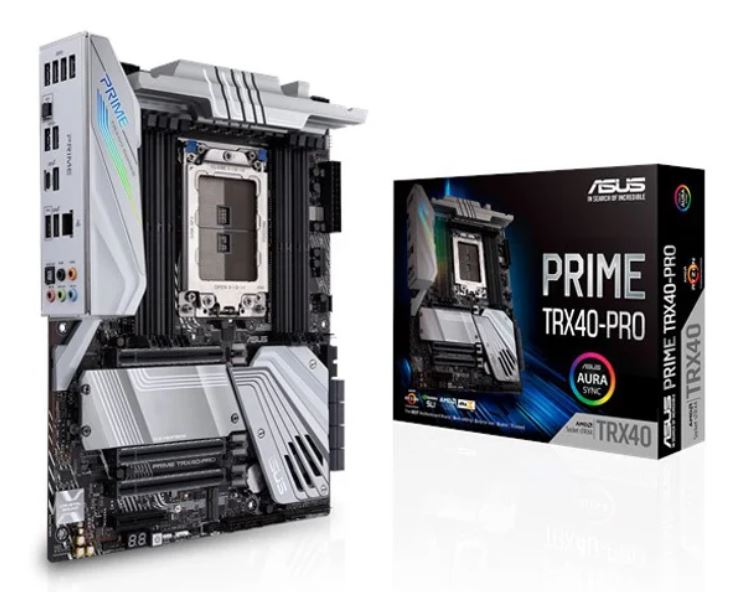

ASUS PRIME TRX40-PRO

CPU

AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
 Refer to www.asus.com for CPU support list

Chipset

    Build in AMD TRX40

Bộ nhớ

3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors

8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI® Technology

Supports NVIDIA® 2-Way SLI® Technology

Supports AMD Quad-GPU CrossFireX™ Technology

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors

3 x PCIe 4.0 x16 (x16/x16/x16) *

AMD TRX40 chipset

1 x PCIe 4.0 (x4 mode)

Storage

3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :

2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)

AMD TRX40 chipset :

1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

8 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Intel® I211-AT

ASUS Turbo LAN Utility

ASUS LAN Guard

Audio

Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in)

Audio Feature :

- DTS X®:Ultra

- Optical S/PDIF out port(s) at back panel

Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

#NAME?

- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

USB Ports

AMD Ryzen™ Threadripper™ Processors :

4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)

AMD TRX40 chipset :

1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board)

AMD TRX40 chipset :

6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board)

AMD TRX40 chipset :

2 x USB 2.0 port(s) (2 at mid-board)

ASMedia® USB 3.2 Gen 1 controller :

4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A)

GL852G USB Hub :

2 x USB 2.0 port(s) (2 at mid-board)

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :

5Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

ASUS SafeSlot - Protect your graphics card Investment

AURA :

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

- Addressable Gen 2 Header

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- Onboard Button : Power

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

- Turbo LAN

- Crystal Sound 3

- Armoury Crate

- Pre-mounted I/O Shield

ASUS Quiet Thermal Solution :

- Stylish Design Heat-pipe solution

- Stylish Fanless Design with M.2 Heat-sink solution

- ASUS Fan Xpert 4

ASUS EZ DIY :

- ASUS EZ Flash 3

- ASUS USB BIOS FlashBack™

- ASUS UEFI BIOS EZ Mode

- Multi-language BIOS

ASUS Q-Design :

- ASUS Q-Code

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Back I/O Ports

1 x LAN (RJ45) port(s)

4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)

6 x USB 3.2 Gen 1 (blue)

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x USB BIOS FlashBack™ Button(s)

Internal I/O Ports

1 x Q_Code

2 x Aura RGB Strip Header(s)

2 x Addressable Gen 2 header(s)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x M.2 with E key for Wi-Fi module

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x W_PUMP+ connector (1 x 4 -pin)

1 x 24-pin EATX Power connector(s)

2 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Q-Connector) x With flexkey function

1 x Thermal sensor connector(s)

1 x Power-on button(s)

1 x Clear CMOS jumper(s)

1 x Node Connector(s)

1 x USB 3.2 Gen 2 front panel connector

BIOS

1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability

WfM 2.0, WOL by PME, PXE

Hệ điều hành

Support for Windows 10 64-bit

Kích Thước

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
