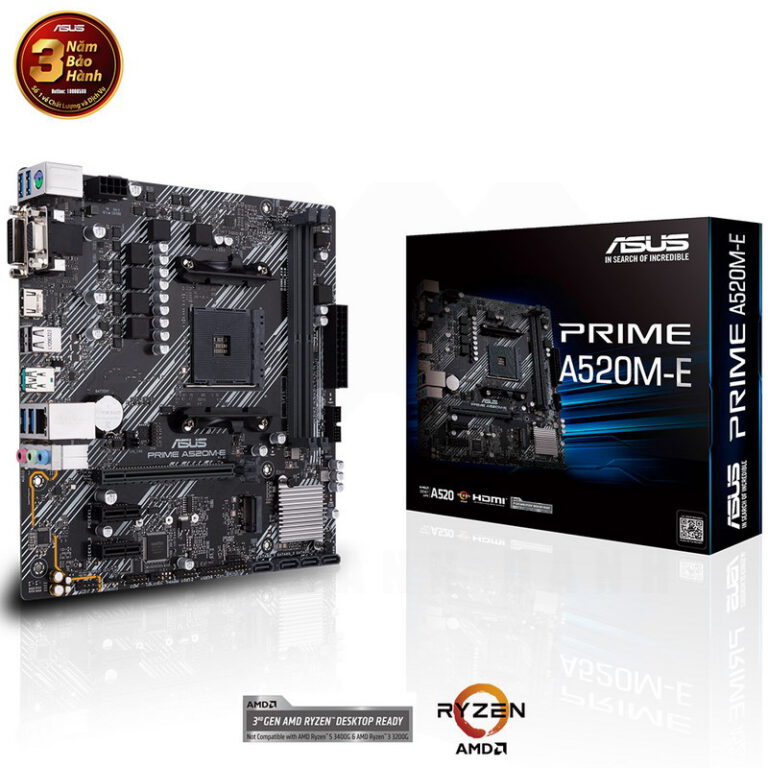

ASUS PRIME A520M-E

CPU hỗ trợ

AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *

Chipset

AMD A520

Bộ nhớ trong

2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Hiển thị đồ họa

1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)

Hỗ trợ Multi-GPU

Khe mở rộng

3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1

Chuẩn lưu trữ

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Mạng

Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard

Âm Thanh

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Kết nối ngoài

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Kết nối trong

1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

Phụ kiện

User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)

Kích thước

mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
