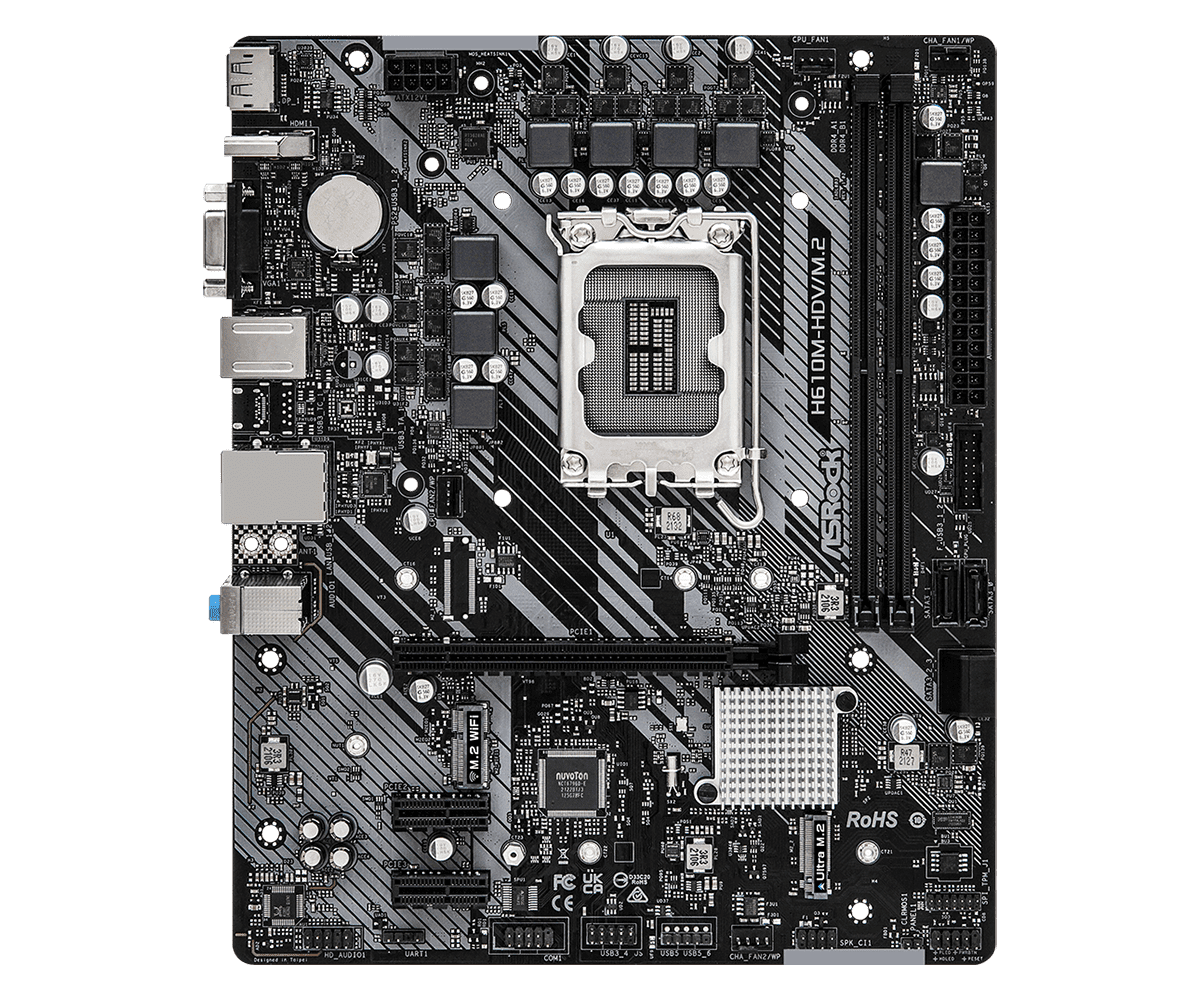

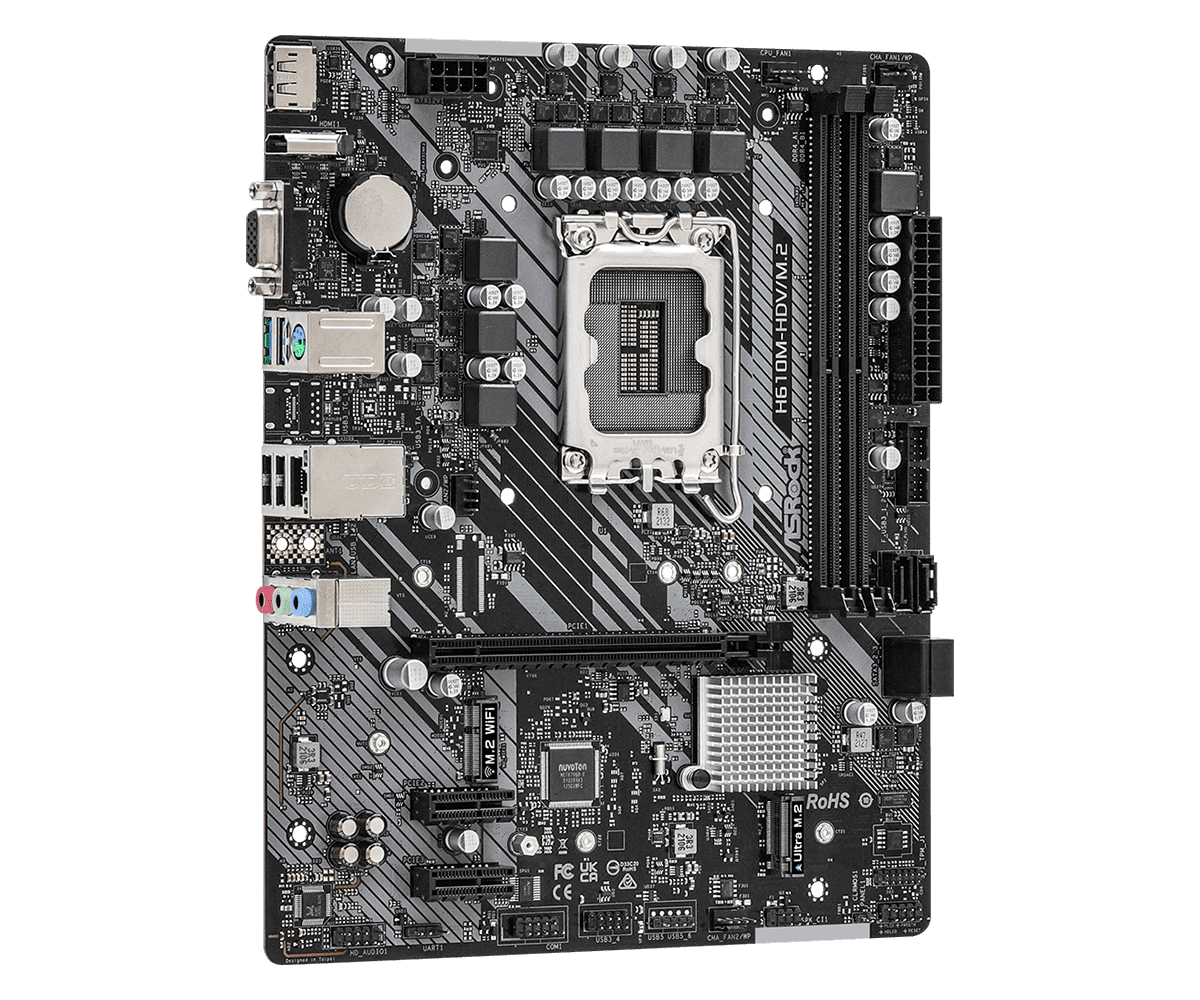

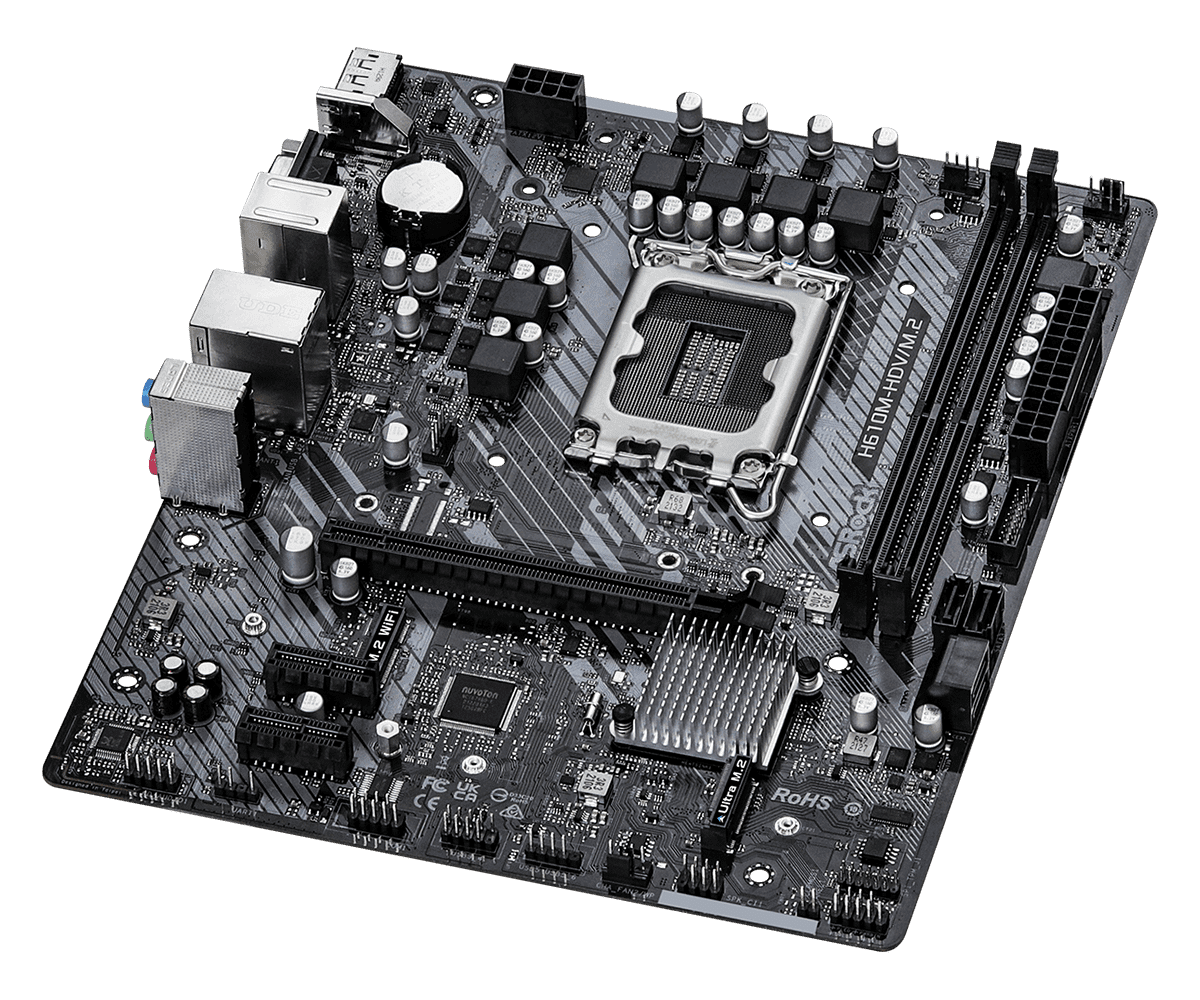

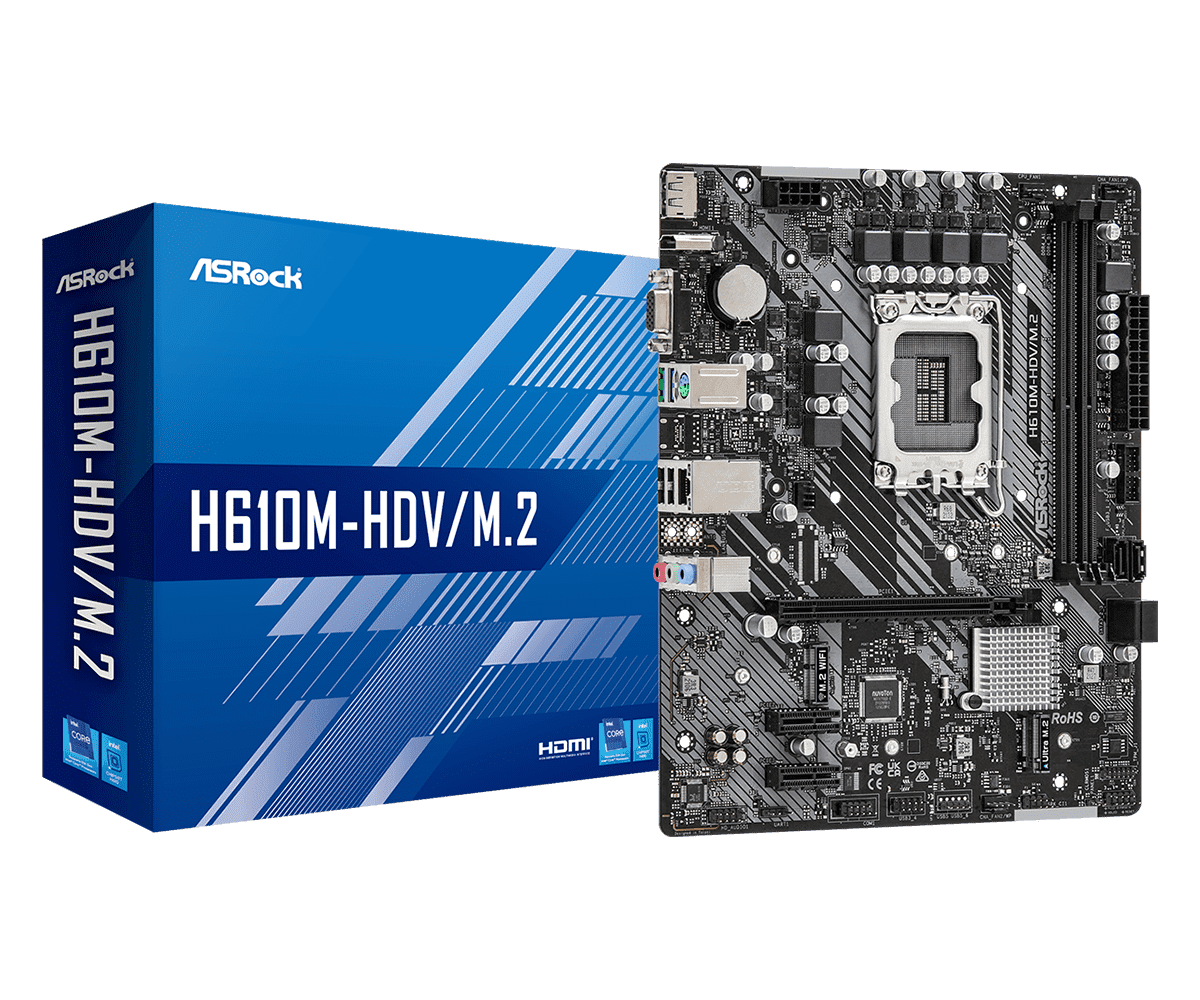

Mainboard Asrock H610M-HDV/M.2 DDR4 | LGA1700 - mATX

Đặc điểm đặc biệt

• ASRock Super Alloy

  • Premium Power Choke

  • Sapphire Black PCB

  • High Density Glass Fabric PCB

• ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)

• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

• ASRock Live Update & APP Shop

CPU

• Supports 13th Gen & 12th Gen Intel^® Core™ Processors (LGA1700)

• Digi Power design

• 6 Power Phase design

• Supports Intel^® Hybrid Technology

• Supports Intel^® Turbo Boost Max 3.0 Technology

Chipset

• Intel^® H610

Bộ nhớ RAM

• Dual Channel DDR4 Memory Technology

• 2 x DDR4 DIMM Slots

• Supports DDR4 non-ECC, un-buffered memory up to 3200

• Supports ECC UDIMM memory modules (operate in non-ECC mode)

• Max. capacity of system memory: 64GB

• Supports Intel^® Extreme Memory Profile (XMP) 2.0

BIOS

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 6.0 Compliant wake up events

• SMBIOS 2.7 Support

• CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Card đồ họa

• Intel^® Xe Graphics Architecture (Gen 12)

• Three graphics output options: D-Sub, HDMI and DisplayPort 1.4Supports HDMI 2.1

• TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60HzSupports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

• Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

• 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)

• Supports Surge Protection

LAN

• Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel^® I219V

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Efficient Ethernet 802.3az

• Supports UEFI PXE

Khe cắm

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Lưu trữ

• 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

• 4 x SATA3 6.0 Gb/s Connectors**

Cổng kết nối

• 1 x COM Port Header

• 1 x SPI TPM Header

• 1 x Chassis Intrusion and Speaker Header

• 1 x CPU Fan Connector (4-pin)*

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

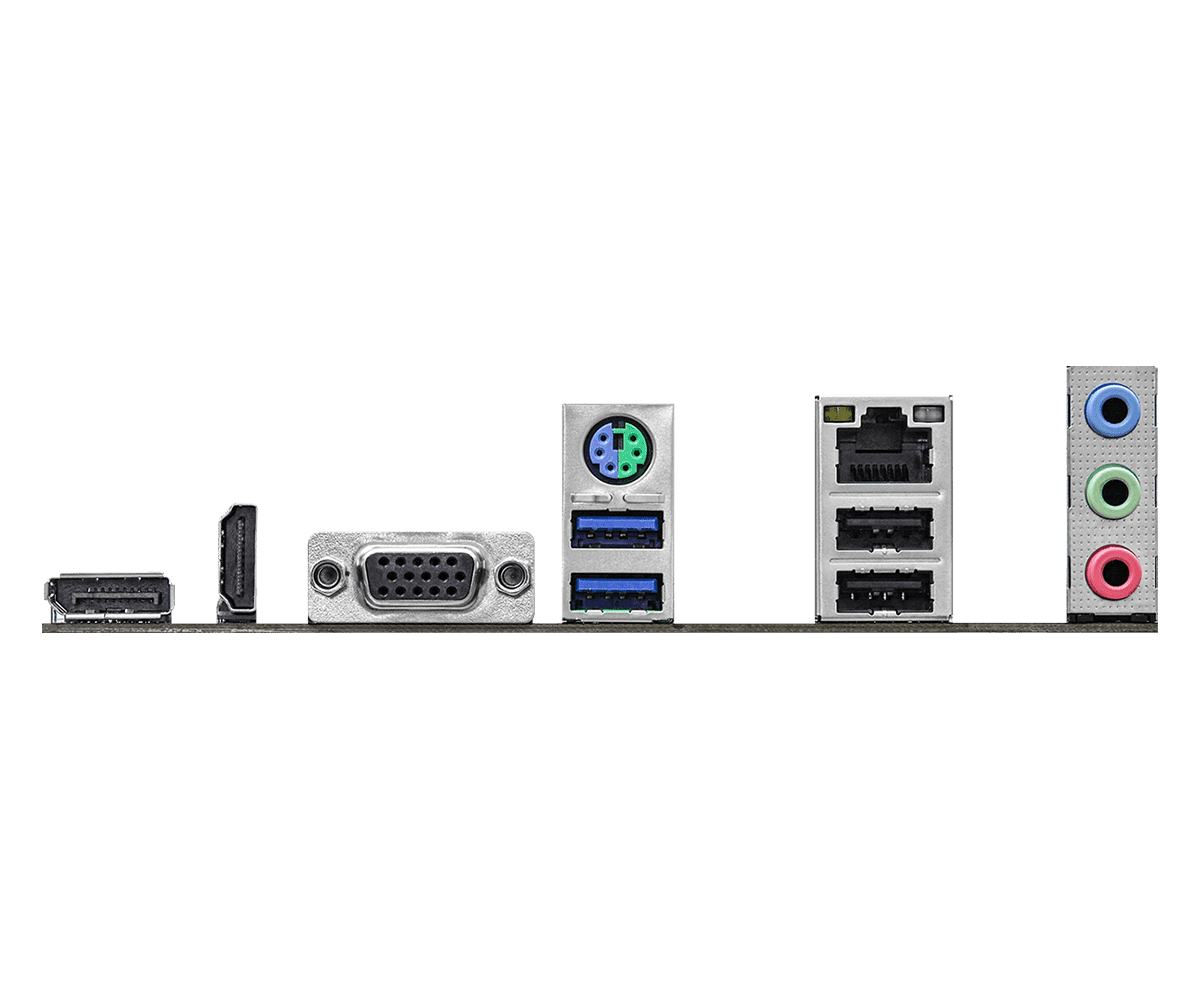

Bảng điều khiển Input/Output phía sau

• 2 x Antenna Mounting Points

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Phần mềm và UEFI

• Software

  •  ASRock Motherboard Utility (A-Tuning)

  • ASRock XFast LAN

• UEFI

  •  ASRock EZ Mode

  • ASRock Full HD UEFI

  • ASRock My Favorites in UEFI

  • ASRock Instant Flash

Phụ kiện

• Quick Installation Guide, Support CD, I/O Shield

• 2 x SATA Data Cables

• 2 x Screws for M.2 Sockets

Hỗ trợ phần cứng

• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

• CASE OPEN detection

• Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V

Chuẩn vỏ máy

• Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

• Solid Capacitor design
