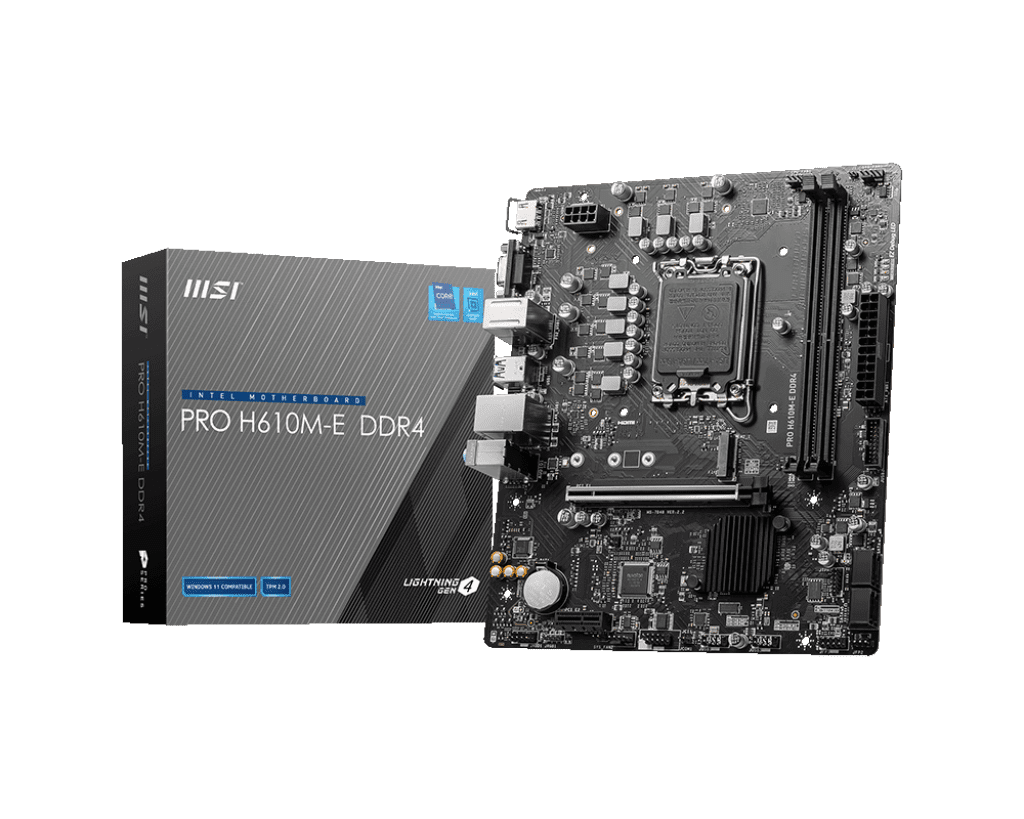

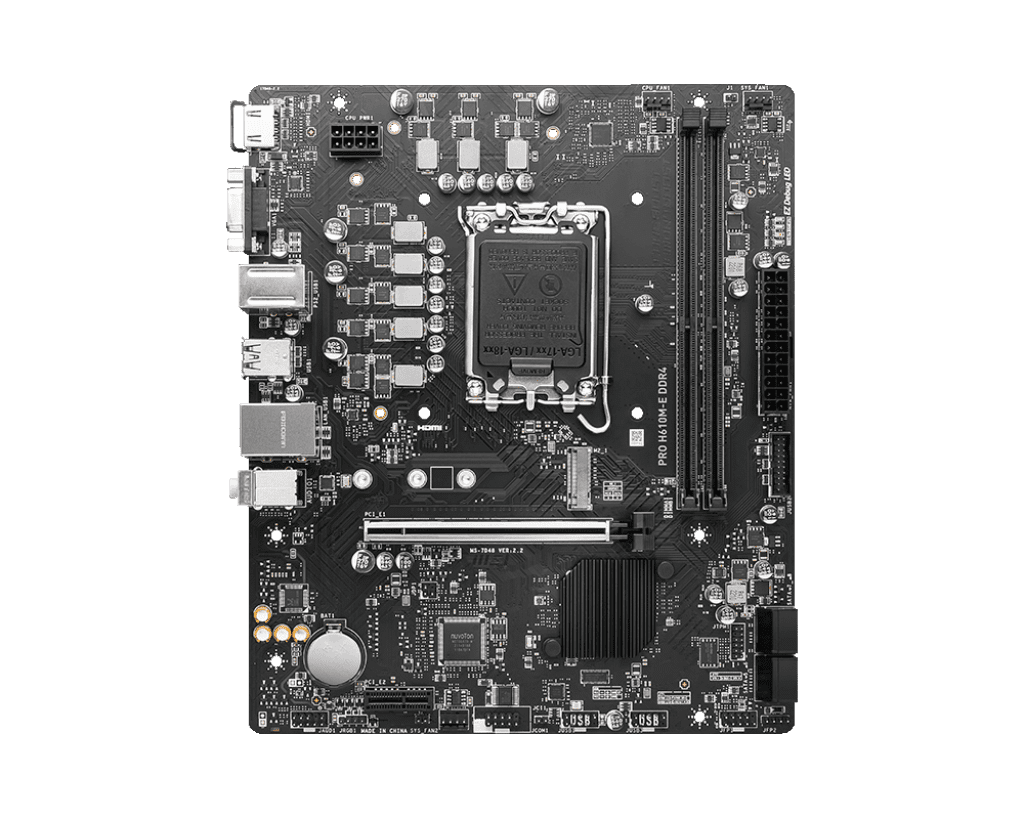

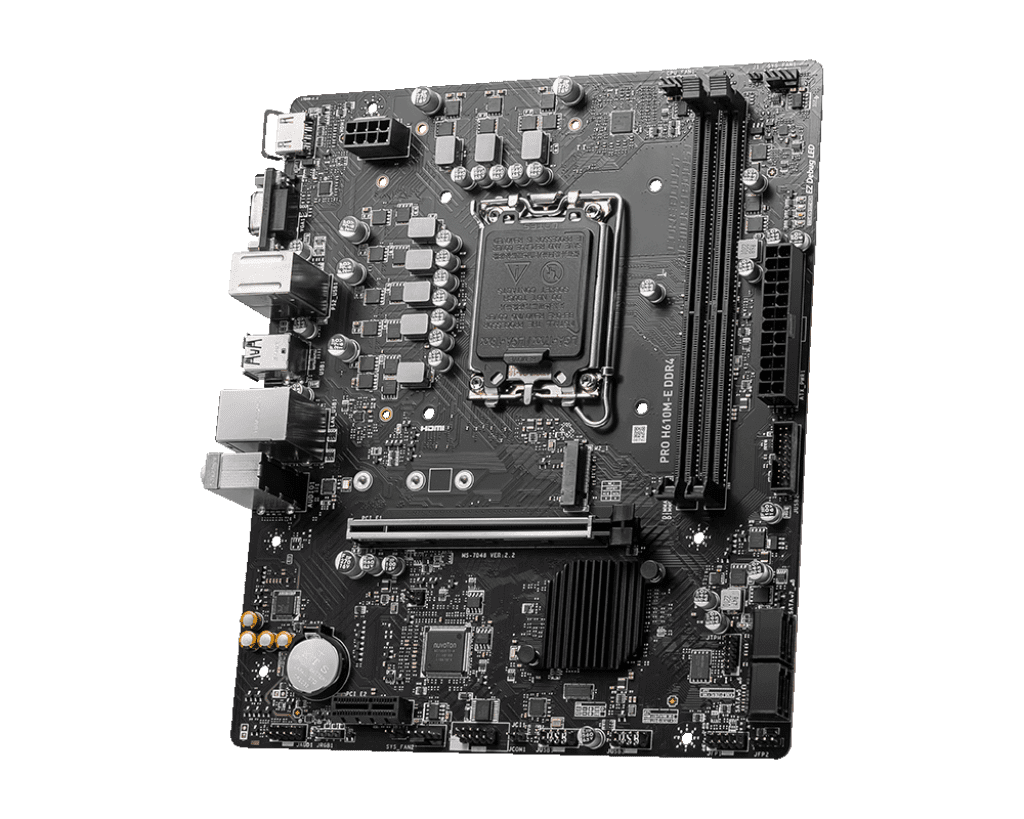

Mainboard MSI PRO H610M-E DDR4 | LGA1700 - mATX

PROCESSOR

• Supports 12th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹

• Processor socket LGA1700

CHIPSET

• Intel^® H610 Chipset

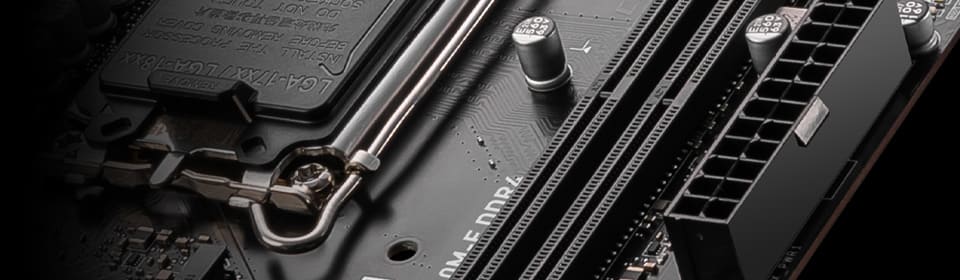

MEMORY

• 2x DDR4 memory slots, support up to 64GB ¹

• Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

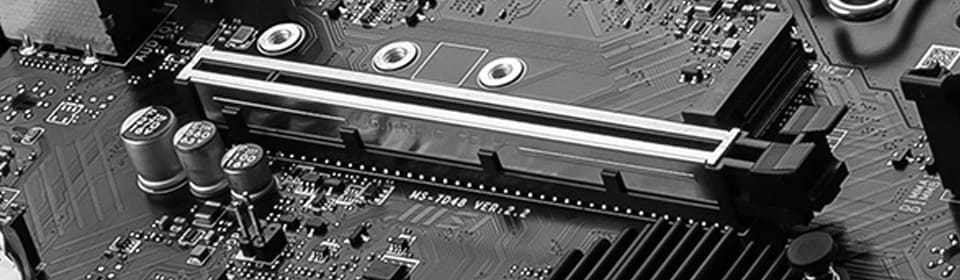

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)

  • Supports up to PCIe 4.0 x16

• 1x PCIe x1 slot (From H610 chipset)

  • Supports PCIe 3.0 x1

ONBOARD GRAPHICS

• 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz ¹ / ²
• 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz ¹ / ²
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

SATA PORTS

• 4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT

• 1x M.2 slot (Key M) (from CPU)

  • Supports up to PCIe 3.0 x4

  • Supports 2242/ 2260/ 2280 storage devices

AUDIO

• Realtek^® ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® RTL8111H 1Gbps LAN controller

POWER CONNECTORS

• 1x 24-pin ATX main power connector

• 1x 8-pin +12V power connector

INTERNAL USB CONNECTORS

• 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
  • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
• 2x USB 2.0 Type-A connectors (From Hub-GL850G)
  • Supports additional 4 USB 2.0 ports

FAN CONNECTORS

• 1x 4-pin CPU fan connector

• 2x 4-pin system fan connectors

SYSTEM CONNECTORS

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Chassis Intrusion connector

• 1x TPM module connector

• 1x Serial port connector

JUMPERS

• 1x Clear CMOS jumper

LED FEATURES

• 1x 4-pin RGB LED connector

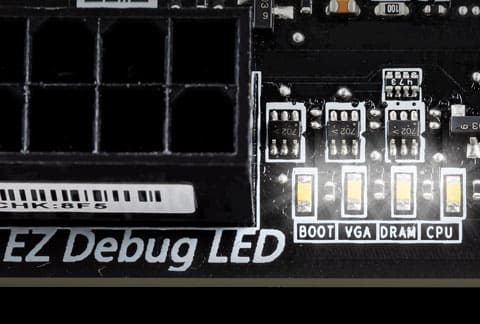

• 4x EZ Debug LED

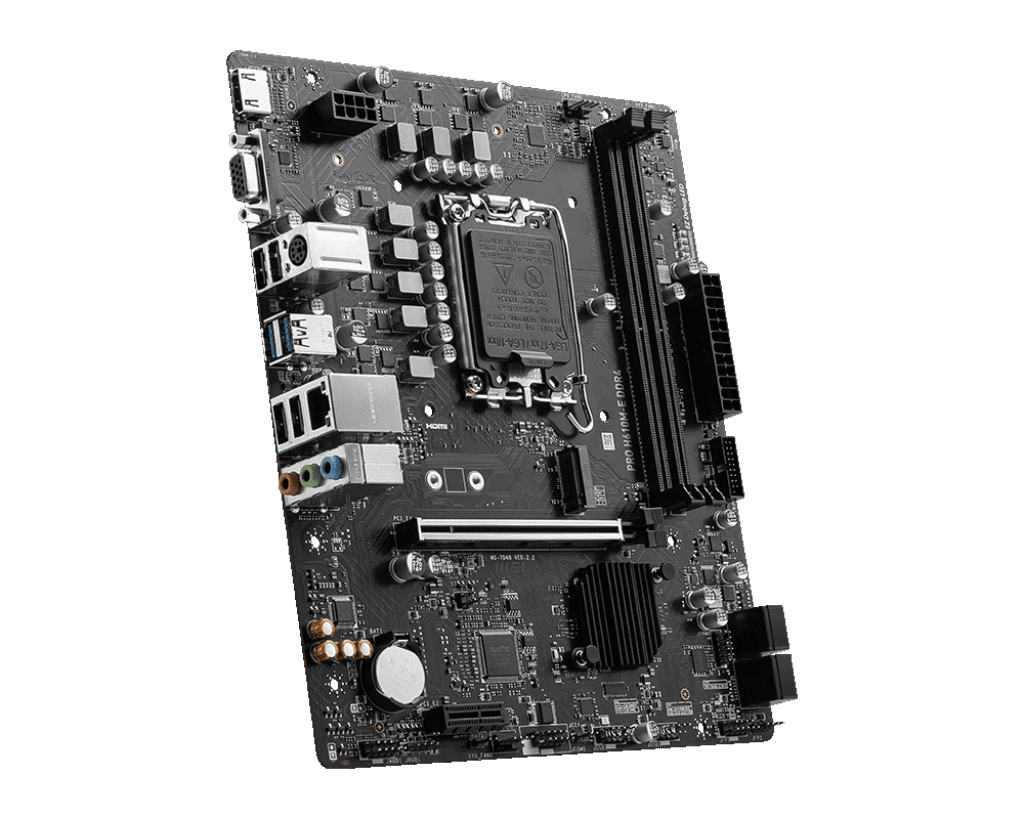

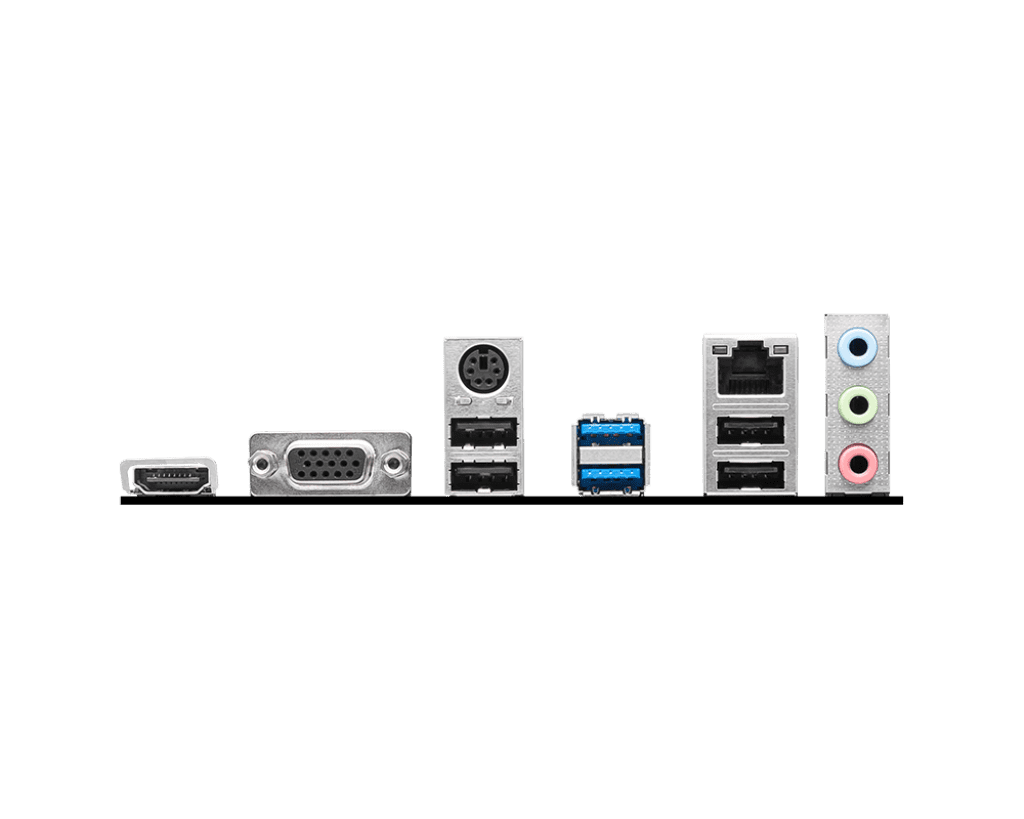

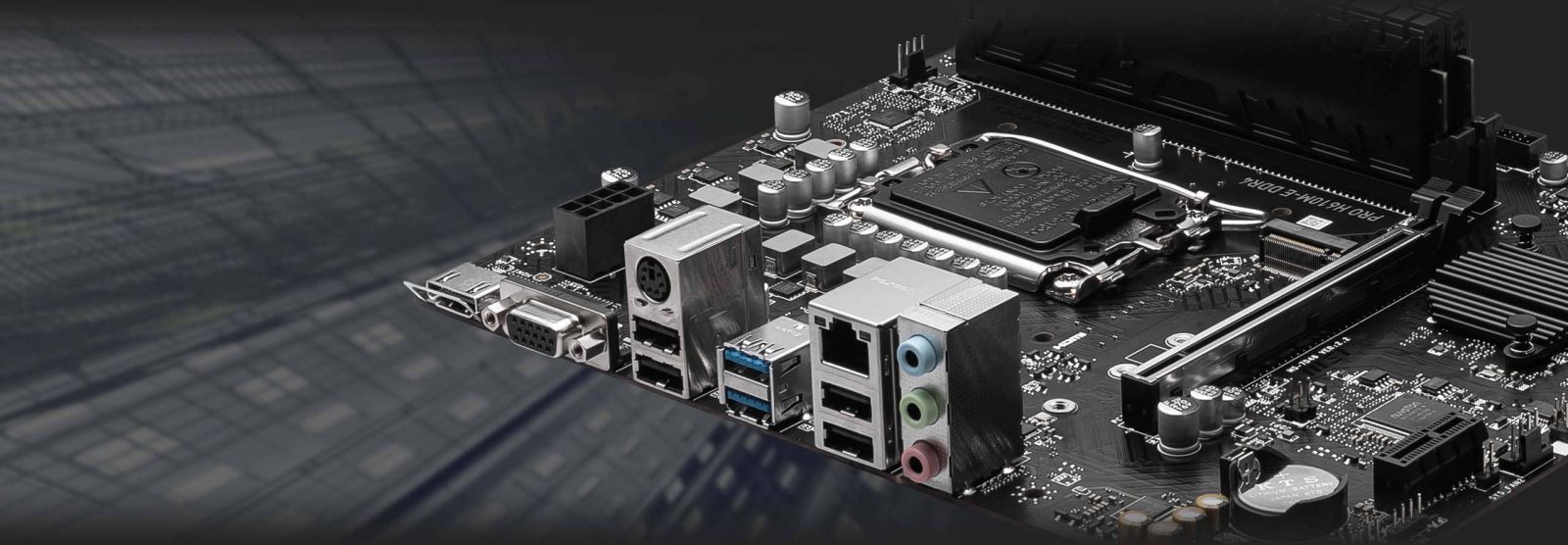

BACK PANEL PORTS

1. HDMI™
2. VGA
3. Keyboard / Mouse
4. USB 3.2 Gen 1 5Gbps Type-A
5. LAN port
6. Audio connector
7. USB 2.0

DIMENSIONS

• M-ATX Form Factor

• 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
