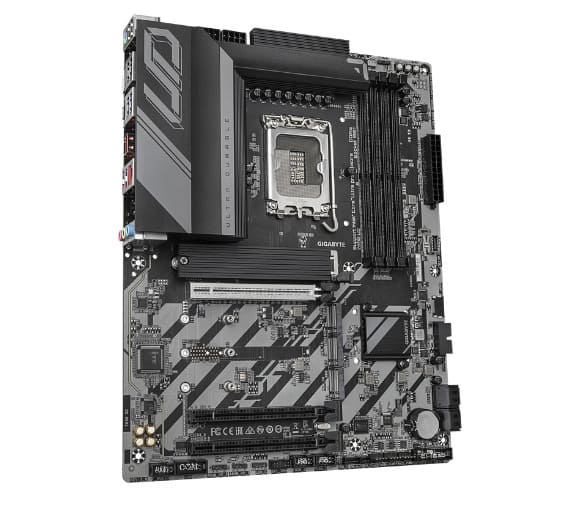

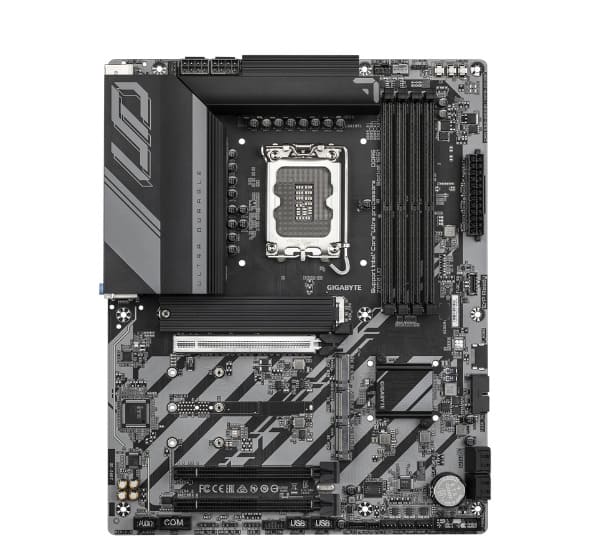

Mainboard Gigabyte Z890 UD

• LGA1851 socket: Support for Intel® Core™ Ultra Processors
• L3 cache varies with CPU

• Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Support CUDIMM memory module

• Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

• CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16).
• Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

• CPU:
• - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
• - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
• Chipset:
• - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB)
• - 4 x SATA 6Gb/s connectors
• USB

• - 1 x USB4® USB Type-C® port on the back panel

• - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Chipset+2 USB 2.0 Hubs:
• - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 2 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
• 1 x serial port header

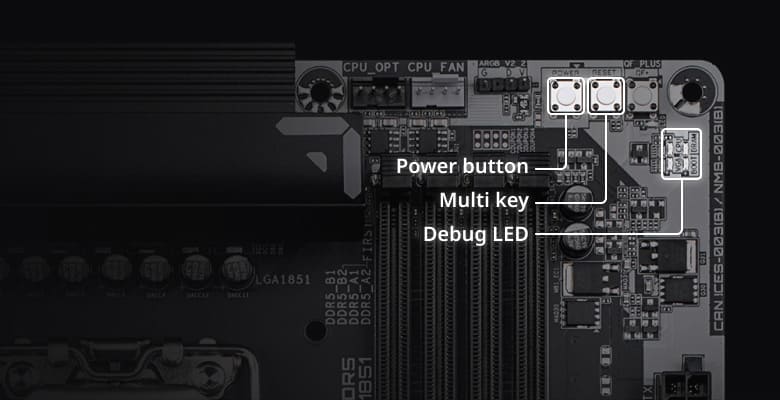

• 1 x power button
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

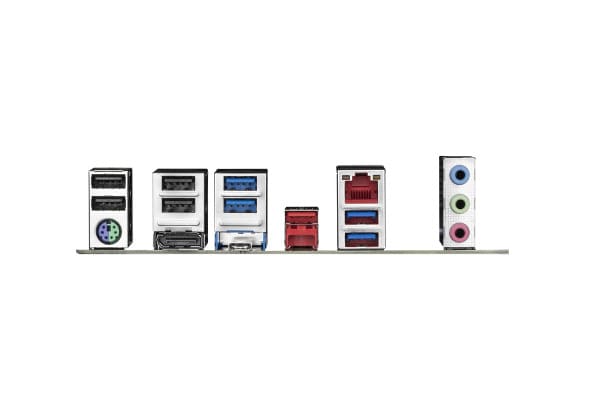

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x DisplayPort (Note)
• 4 x USB 3.2 Gen 1 ports
• 1 x USB4® USB Type-C® port (DisplayPort (Note))
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x RJ-45 port
• 3 x audio jacks

• iTE® I/O Controller Chip
• Theo dõi phần cứng
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Hệ điều hành: Support for Windows 11 64-bit

Hệ số khuôn: ATX Form Factor; 30.5cm x 24.4cm
