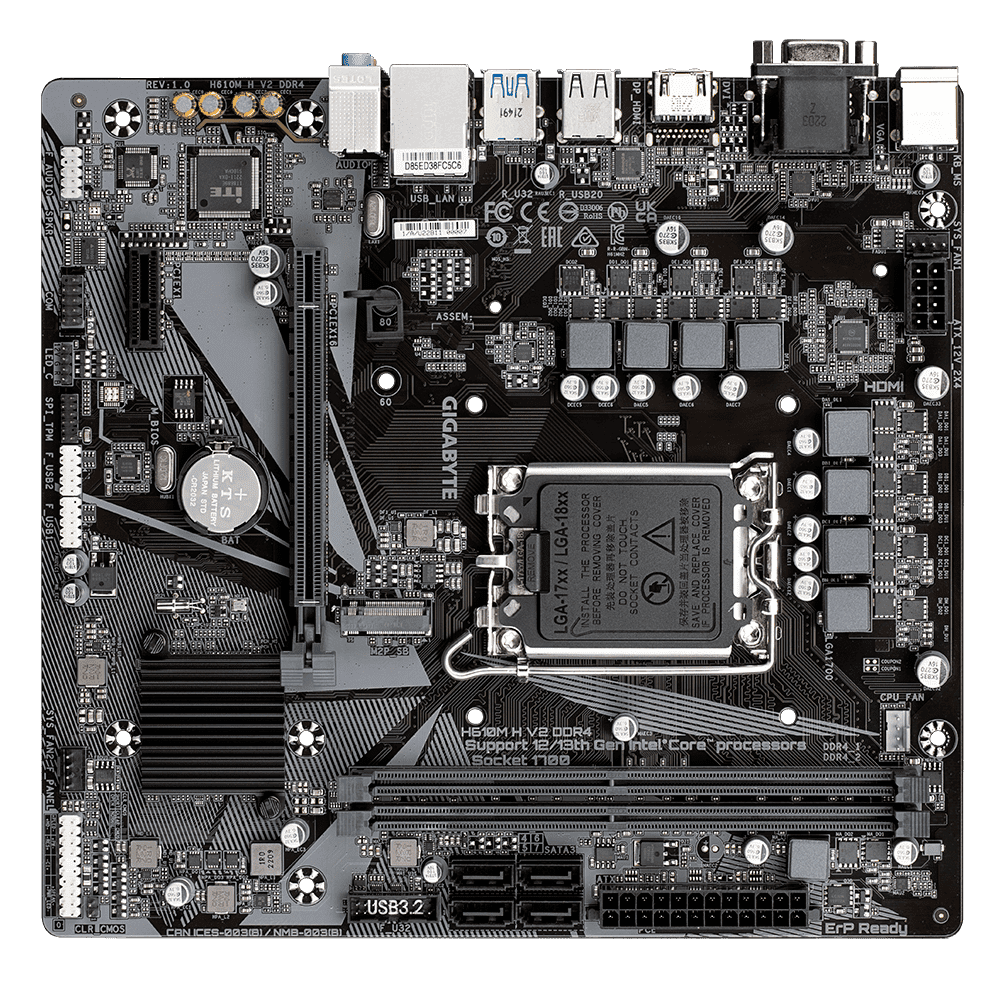

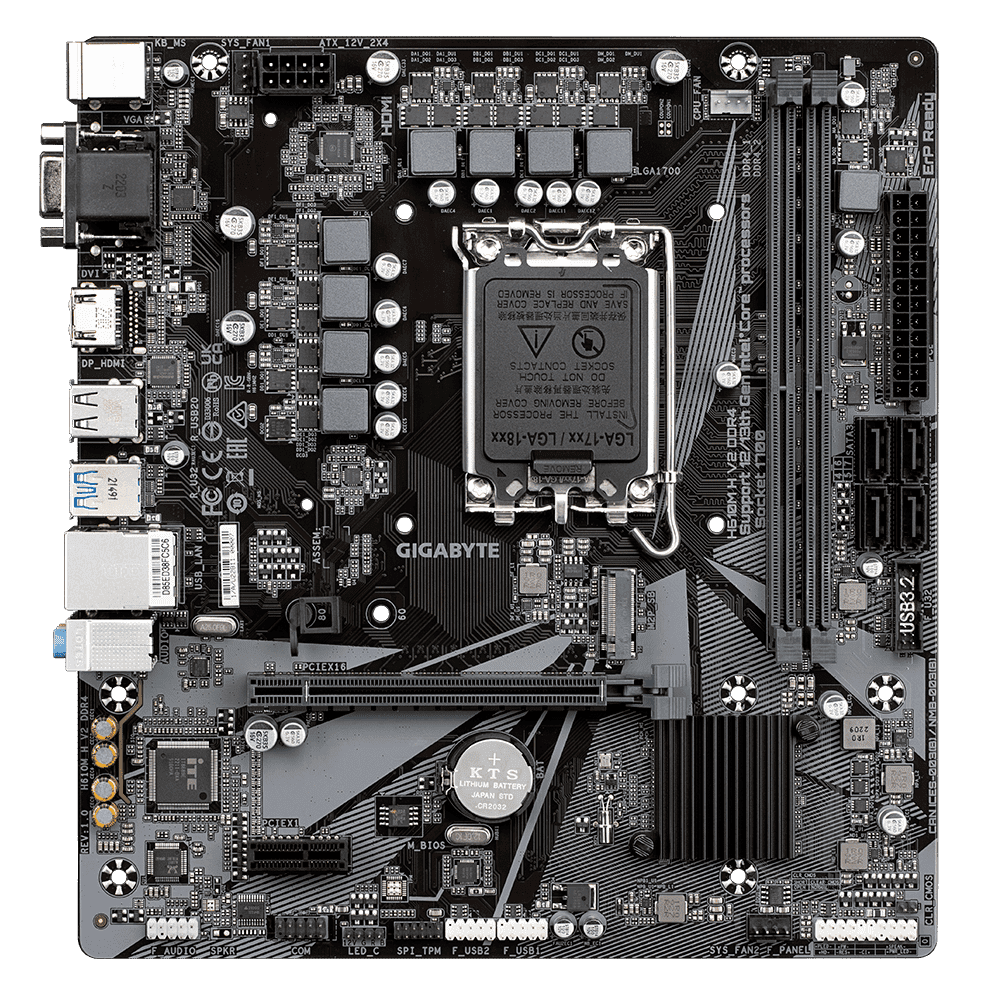

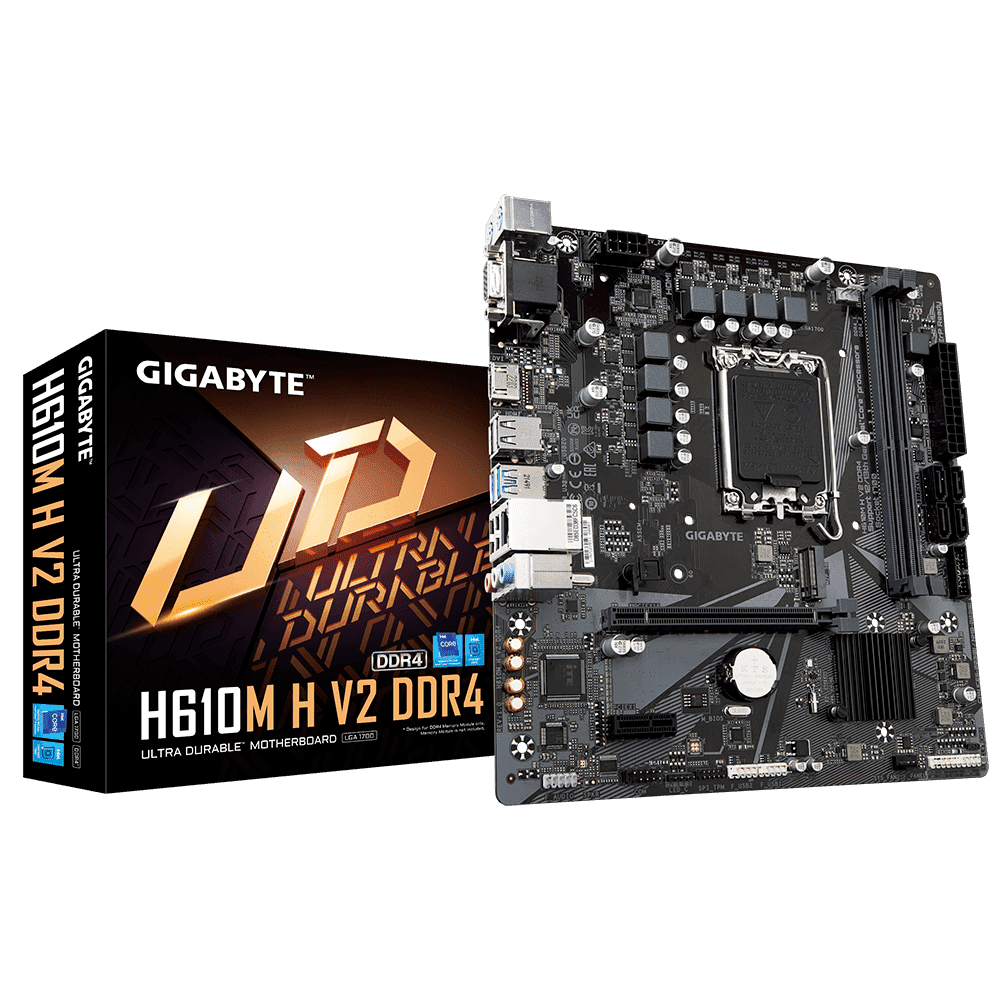

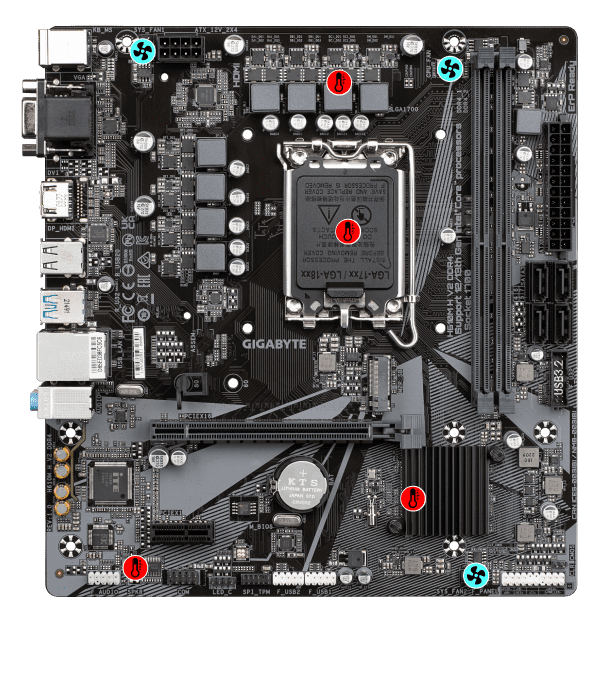

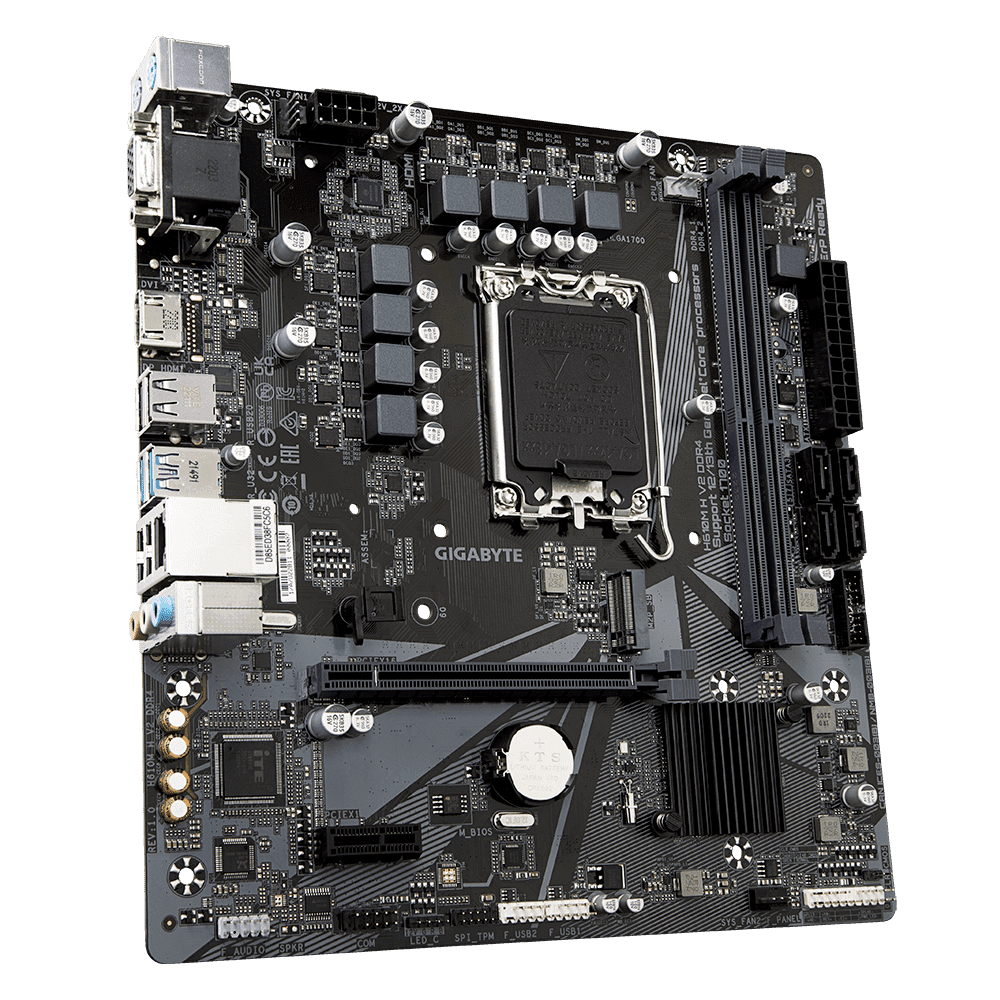

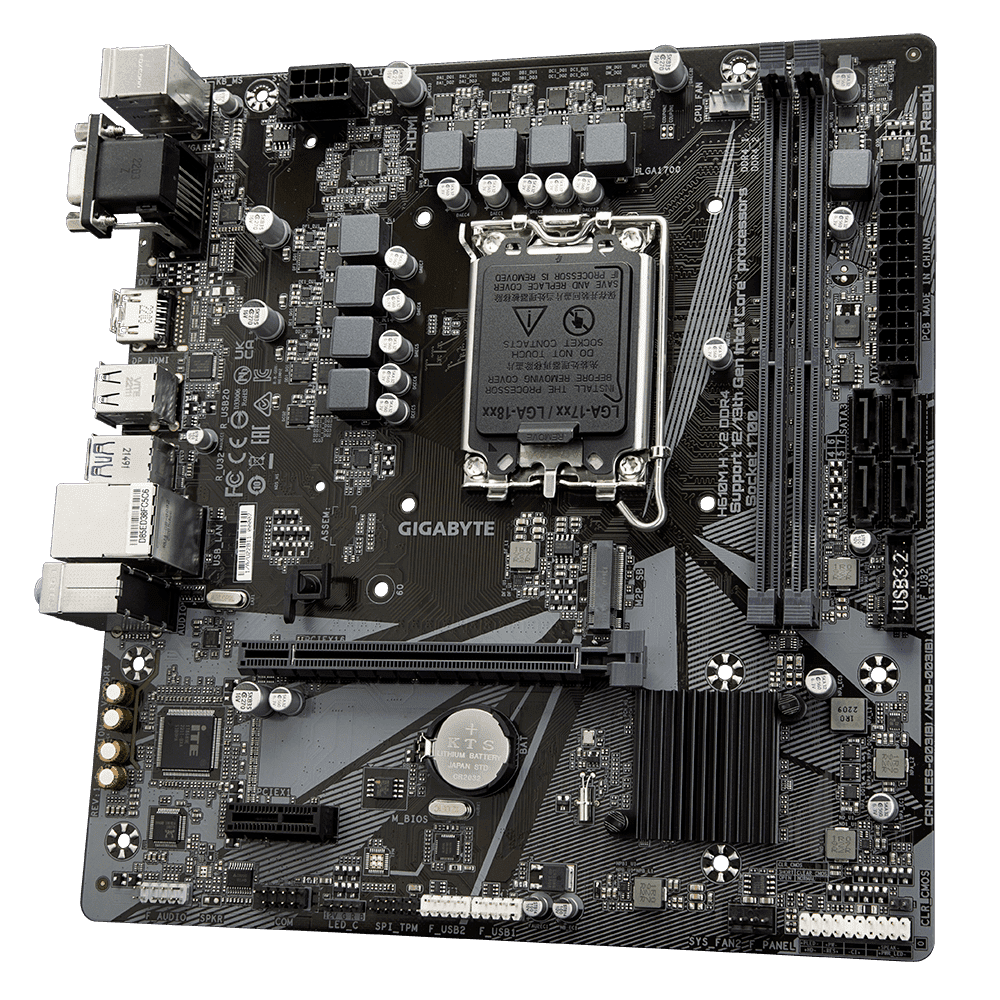

Mainboard Gigabyte H610M H DDR4 V2 | LGA1700 - mATX

CPU

• LGA1700 socket: Support for 13th Generation Intel^® Core™ Processors and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
• L3 cache varies with CPU

Chipset

• Intel^® H610 Express Chipset

Bộ nhớ

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

Card đồ họa tích hợp

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Âm thanh

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

Khe cắm mở rộng

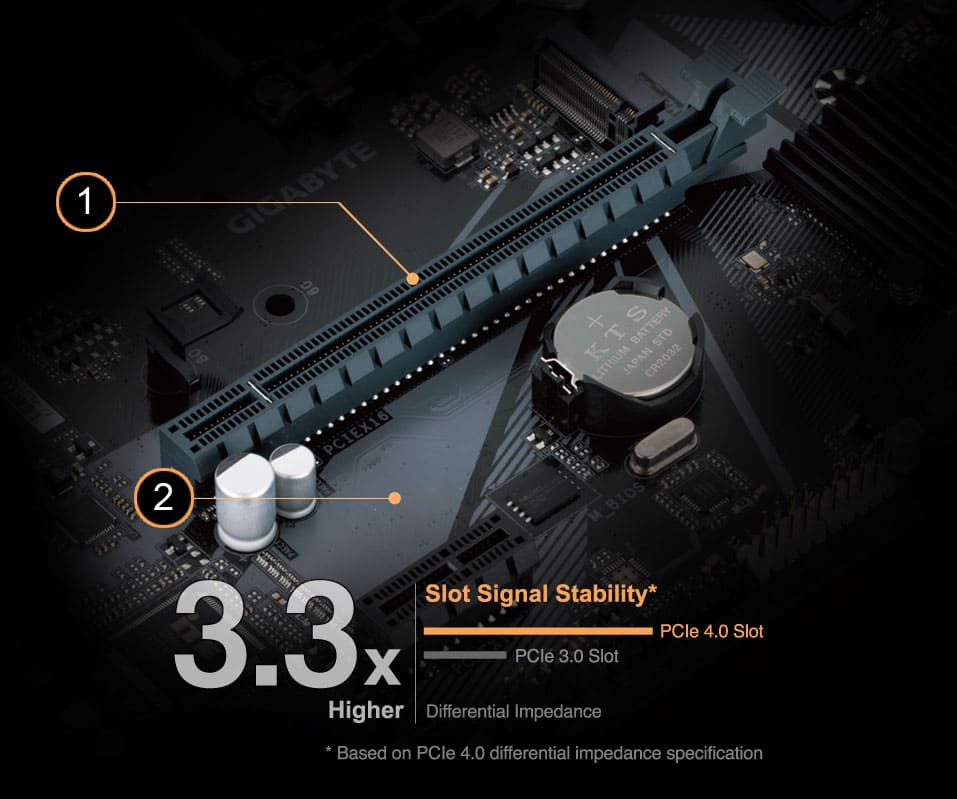

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Giao diện lưu trữ

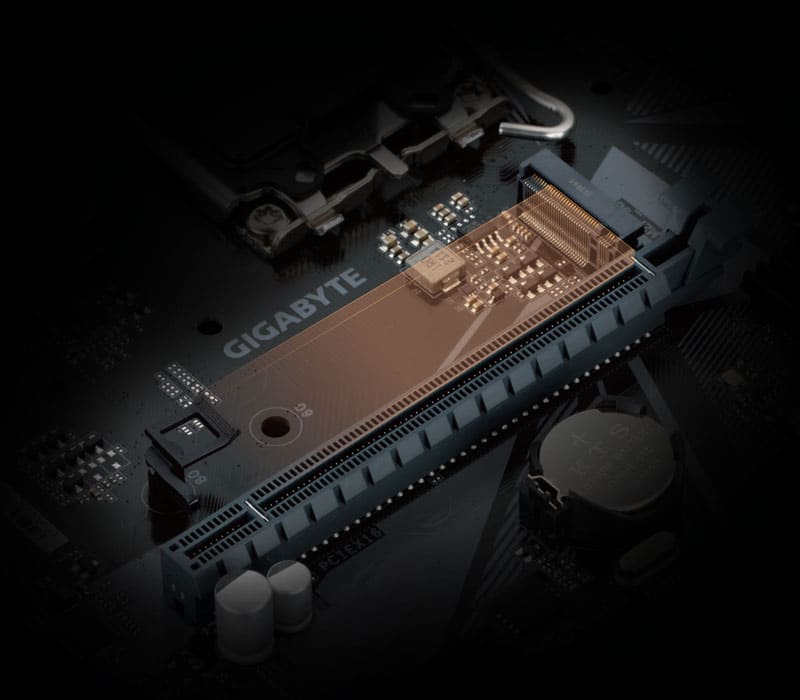

• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors

USB

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Kết nối I/O bên trong

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

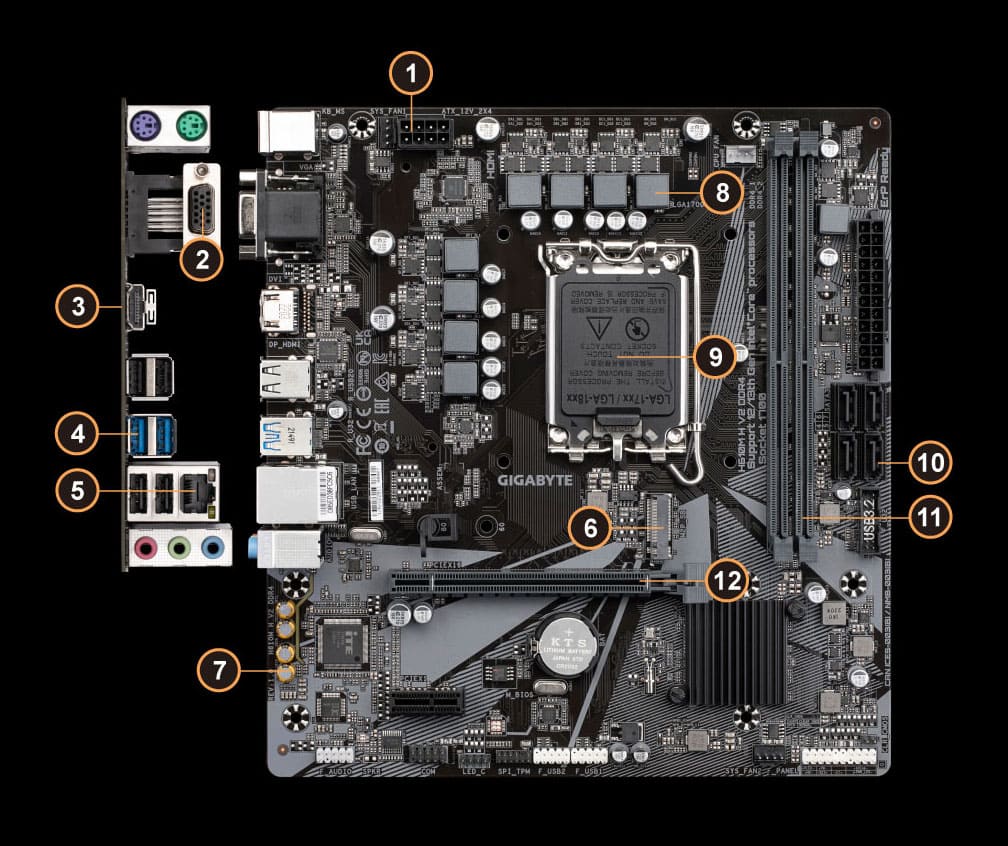

Kết nối bảng phía sau

• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Điều khiển I/O

• iTE^® I/O Controller Chip

Theo dõi phần cứng

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning

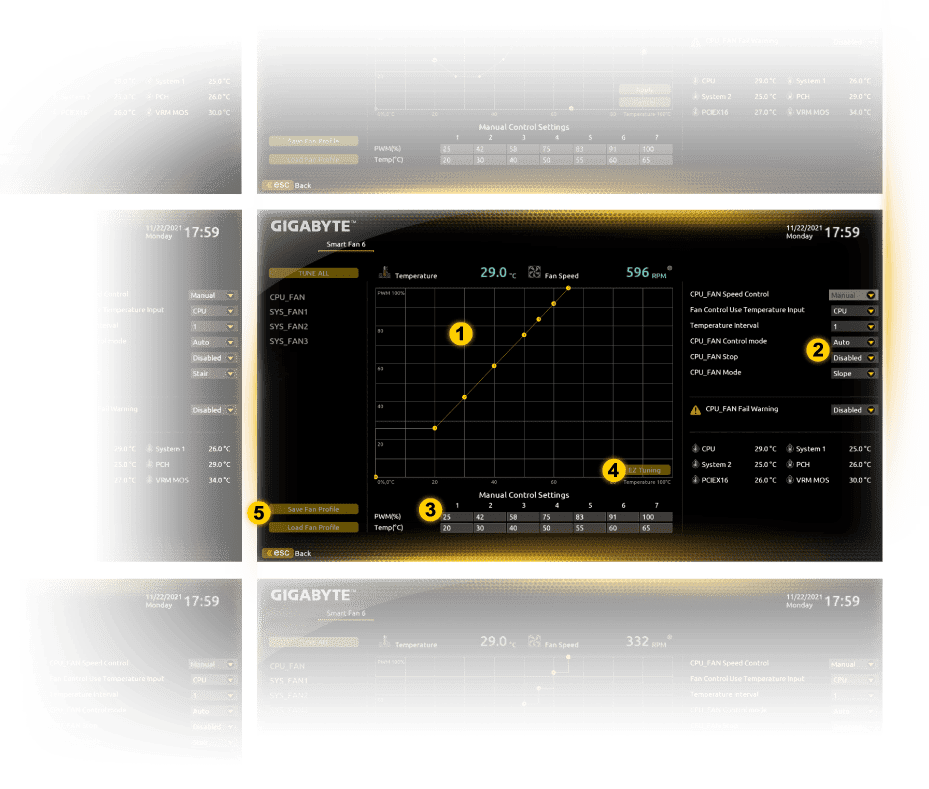

• Fan speed control

Tính năng duy nhất

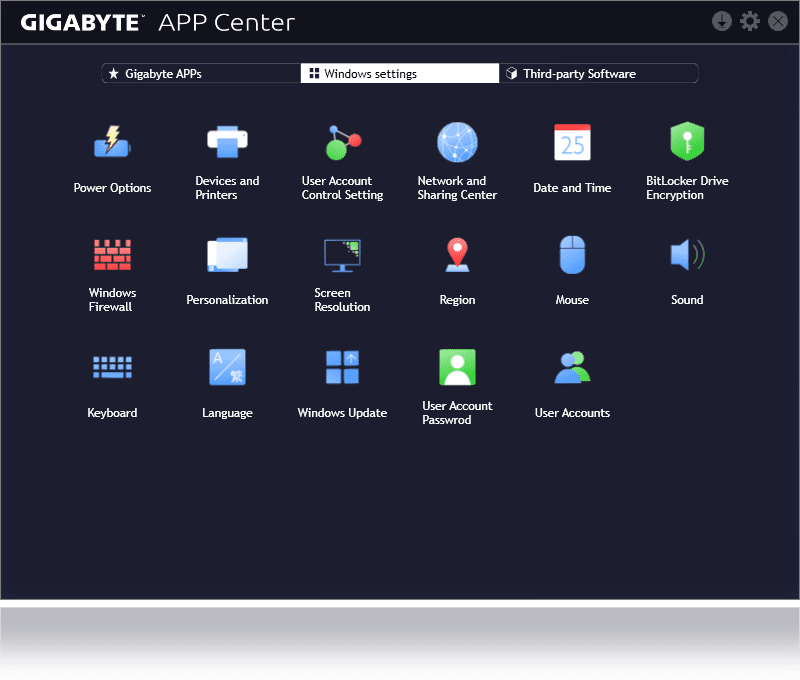

• Support for APP Center
  • @BIOS
  • Ambient LED
  • EasyTune
  • Smart Backup

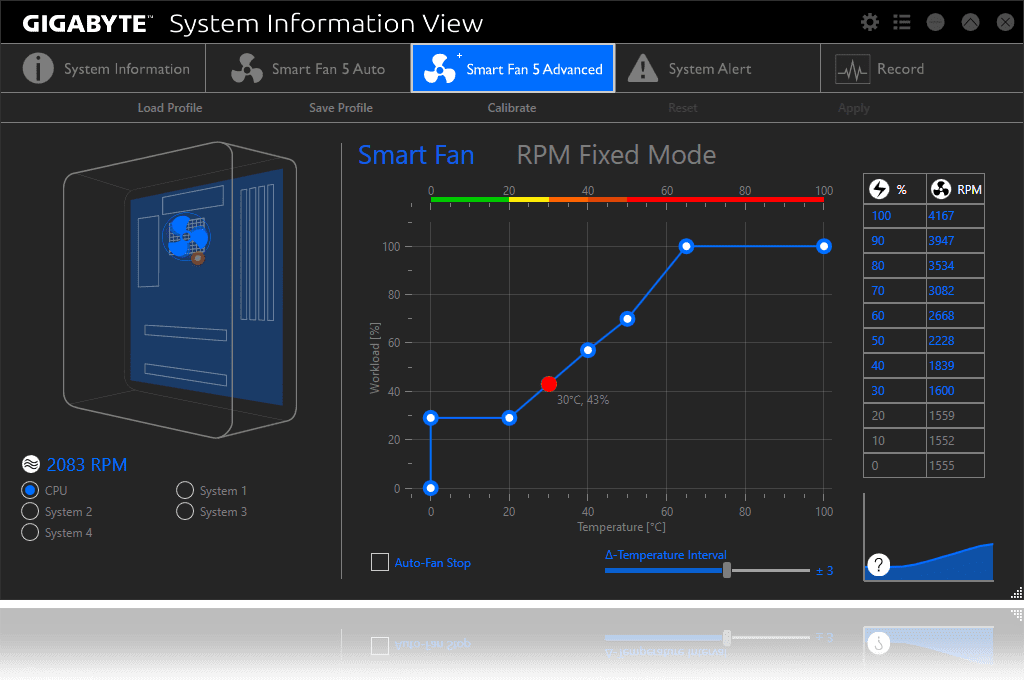

  • System Information Viewer
• Support for Q-Flash
• Support for Xpress Install

Hệ điều hành

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Thông số chi tiết

• Micro ATX Form Factor; 23.0cm x 21.5cm
