Mainboard Gigabyte H610M GAMING WF DDR4 Mainboard Gigabyte H610M GAMING WF DDR4 Mainboard Gigabyte H610M GAMING WF DDR4
Mainboard Gigabyte H610M GAMING WF DDR4 Mainboard Gigabyte H610M GAMING WF DDR4 Mainboard Gigabyte H610M GAMING WF DDR4

Mainboard Gigabyte H610M GAMING WF DDR4

  • Tên sản phẩm: Mainboard Gigabyte H610M GAMING WF DDR4
  • Socket: LGA1700
  • Chipset: Intel® H610 Express Chipset
  • Số khe RAM: 2 x DDR4 DIMM sockets hỗ trợ lên đến 64 GB
  • Số khe mở rộng:1 x PCI Express x16 slot
  • Kích thước: 24.4cm x 22.0cm
Tình trạng: Còn hàng
  • Mã sản phẩm: 3BD3445B67
  • Bảo hành: 36 tháng

2,550,000đ

Mua ngay

Địa chỉ: 52 Trần Minh Quyền, Phường 11, Quận 10, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 9h30 - 20h30

Hotline: 0.888.000.112

  • Thông số kỹ thuật

Socket

  • LGA1700: Supports 14th, 13th, and 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors (check Gigabyte website for latest CPU compatibility)

Chipset

  • Intel H610 Express Chipset

Memory

  • Dual-channel DDR4 3200/3000/2933/2666/2400/2133 MHz
  • 2x DDR4 DIMM slots, up to 64GB total capacity (32GB per DIMM)
  • Supports ECC and non-ECC unbuffered memory
  • XMP memory profile support

Integrated Graphics

  • Intel HD Graphics with support for:
    • 2x DisplayPort (max resolution 4096x2304@60Hz, DisplayPort 1.2, HDCP 2.3)
    • 1x HDMI port (max resolution 4096x2160@60Hz, HDMI 2.1, HDCP 2.3)
    • Triple display support

Audio

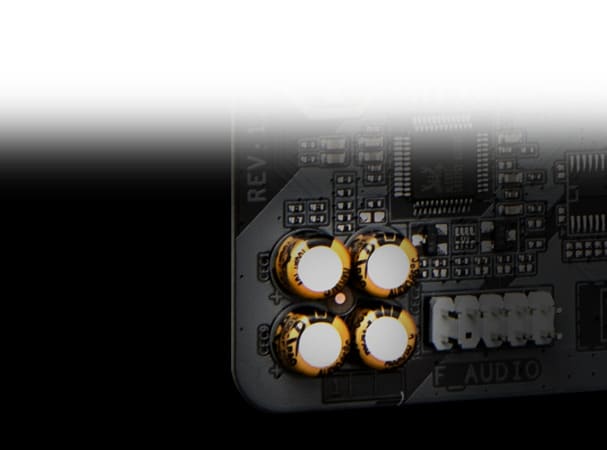

  • Realtek Audio Codec with High Definition Audio (2/4/5.1/7.1 channel)

Networking

  • Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
  • Intel Wireless-AC 9560 module (Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.1)

Expansion Slots

  • 1x PCI Express x16 slot (PCIe 4.0)
  • 1x PCI Express x1 slot (PCIe 3.0)

Storage

  • 2x M.2 connectors (M key, type 2280/2260) supporting PCIe 3.0 x4/x2 SSDs
  • 4x SATA 6Gb/s connectors

USB Ports

  • 4x USB 3.2 Gen 1 ports (2 rear panel, 2 internal headers)
  • 6x USB 2.0/1.1 ports (4 rear panel, 2 internal headers)

Internal Connectors

  • Various headers for power, fans, RGB strips, USB, TPM module, serial port, and front panel connections

Rear Panel I/O

  • PS/2 keyboard and mouse ports
  • 2x SMA antenna connectors
  • 2x DisplayPorts
  • 1x HDMI port
  • 2x USB 3.2 Gen 1 ports
  • 4x USB 2.0/1.1 ports
  • RJ45 LAN port
  • 3x Audio jacks

Form Factor

  • Micro ATX (24.4cm x 22.0cm)
