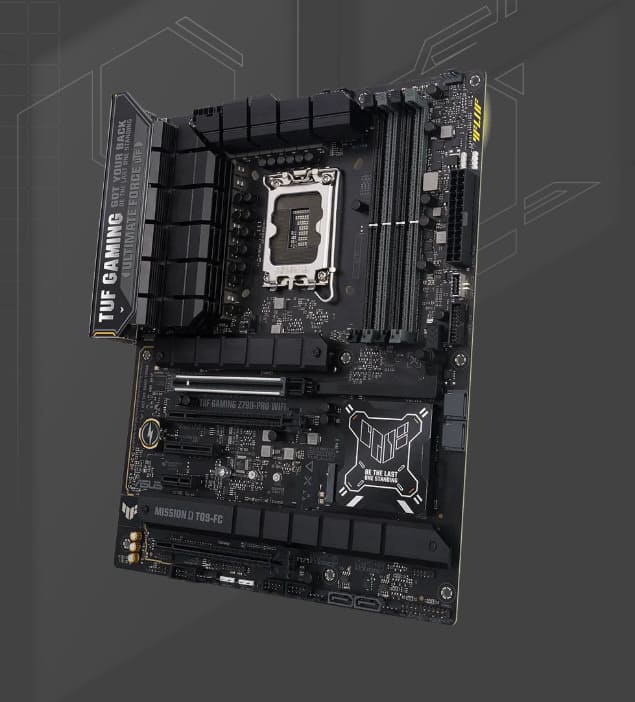

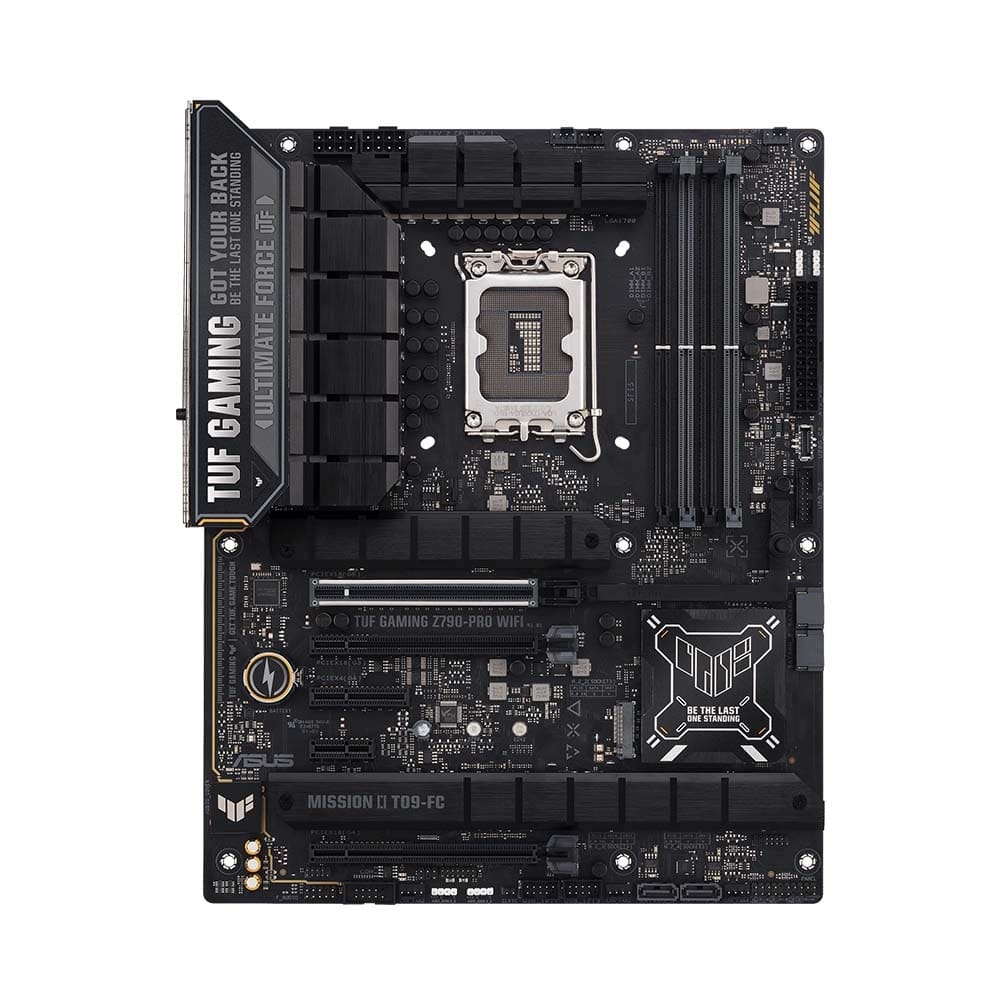

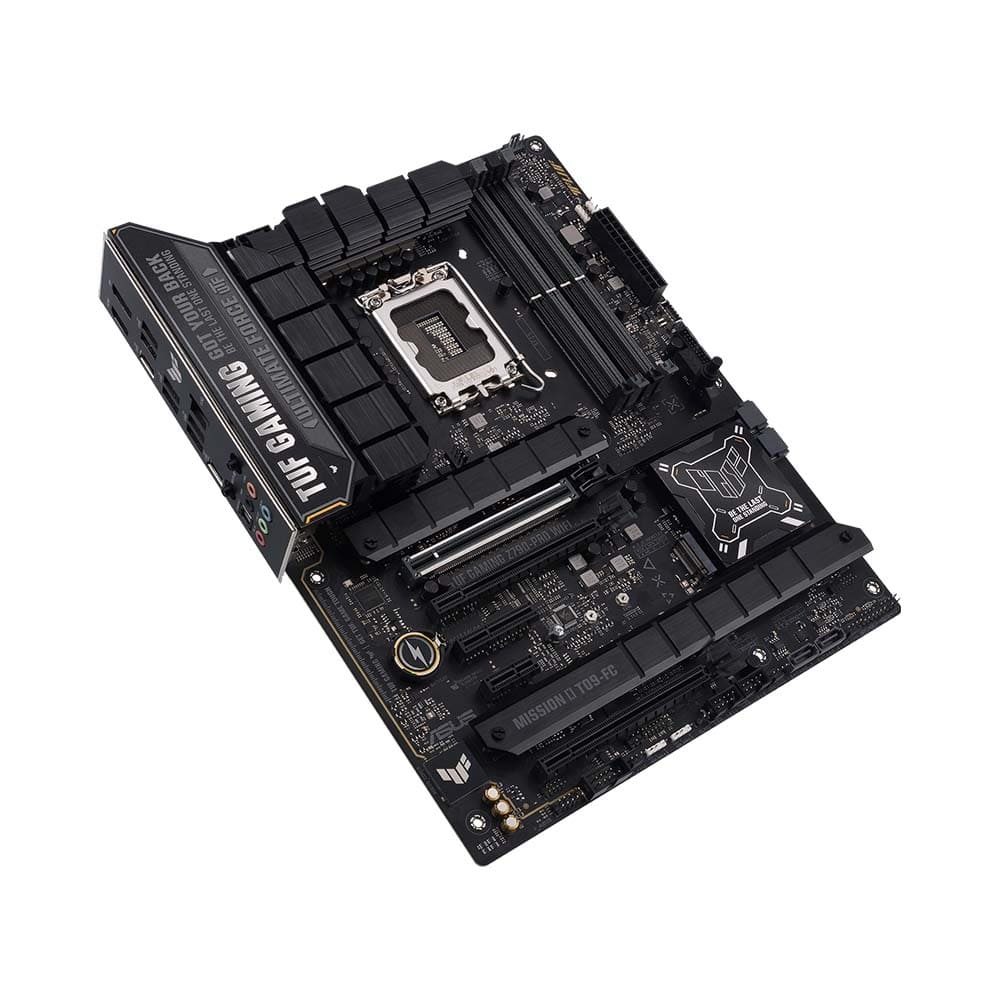

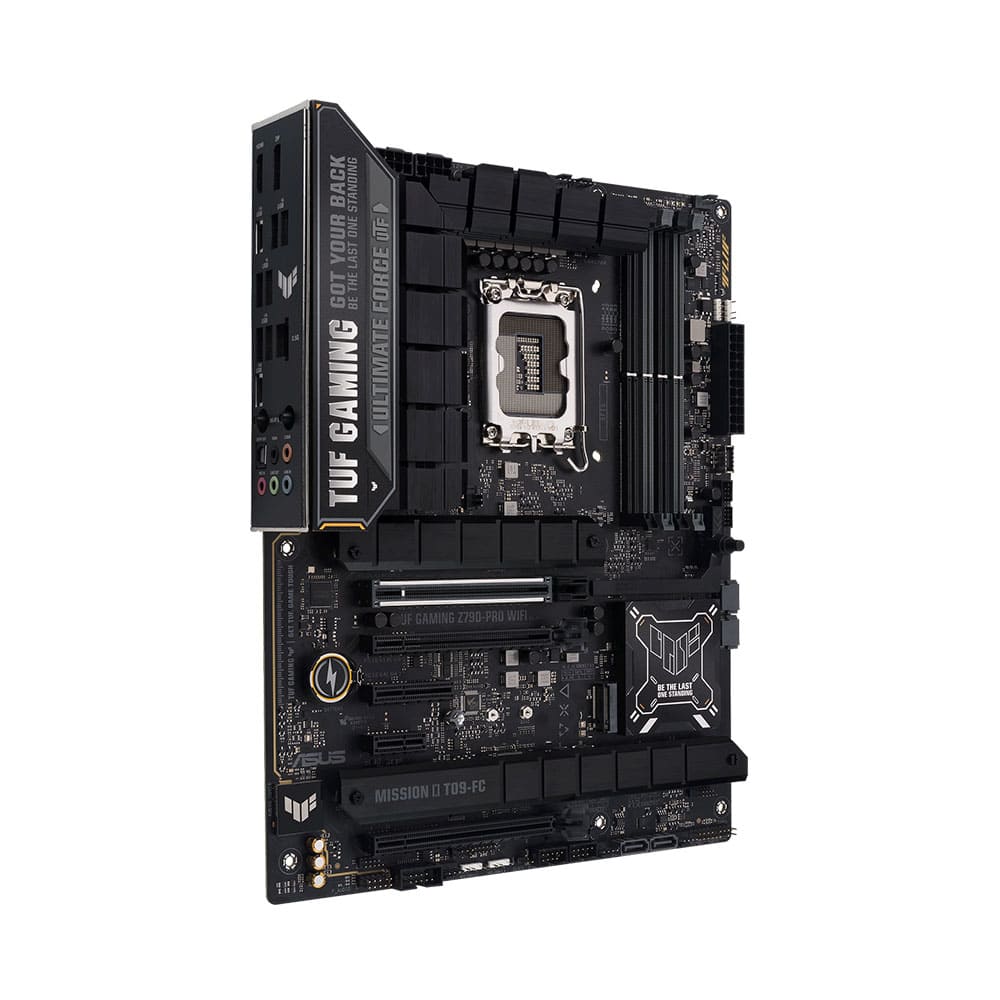

Mainboard Asus TUF GAMING Z790-PRO WIFI

CPU hỗ trợ

• Intel Core 12th/ 13th/ 14th

• Socket LGA1700

* Tham khảo www.asus.com để biết danh sách hỗ trợ CPU.

Chipset

Intel Z790

Hỗ trợ Ram

4x DDR5 7800+(OC)/7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC) /6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz (Maximum 192GB)

Khe cắm mở rộng

1 x PCIe 5.0 x16

1 x PCIe 4.0 x16 (x4 mode)

1 x PCIe 4.0 x4

1 x PCIe 3.0 x16 slot (x1 mode)

1 x PCIe 3.0 x1 slot

Hỗ trợ ổ cứng

2 x M.2 2242/2260/2280/22110 PCIe 4.0 x4

1 x M.2 2242/2260/2280 PCIe 4.0 x4

1 x M.2242/2260/2280 PCIe 4.0 x4 & SATA

4 x SATA 6Gbps

*Support Raid 0, 1, 5, 10 cho SATA

LAN/Wireless

• LAN: Intel® 2.5Gb Ethernet + TUF LANGuard

• Wireless: Wi-Fi 6E + Bluetooth 5.3

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Cổng kết nối bên trong

Fan and cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage

4 x M.2 slot

4 x SATA 6Gb/s

USB

1 x USB 20Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM port header

1 x Front panel audio header (F_AUDIO)

1 x 20-3 pin system panel header with chassis intrusion function

1 x Thunderbolt™ (USB4®) header

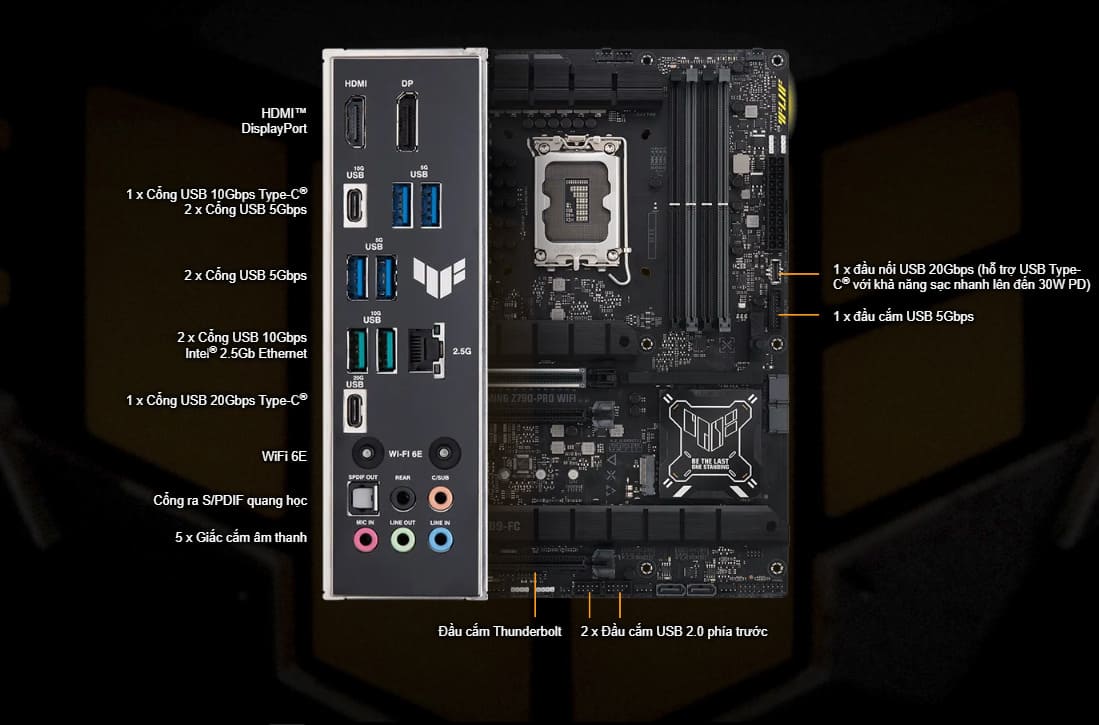

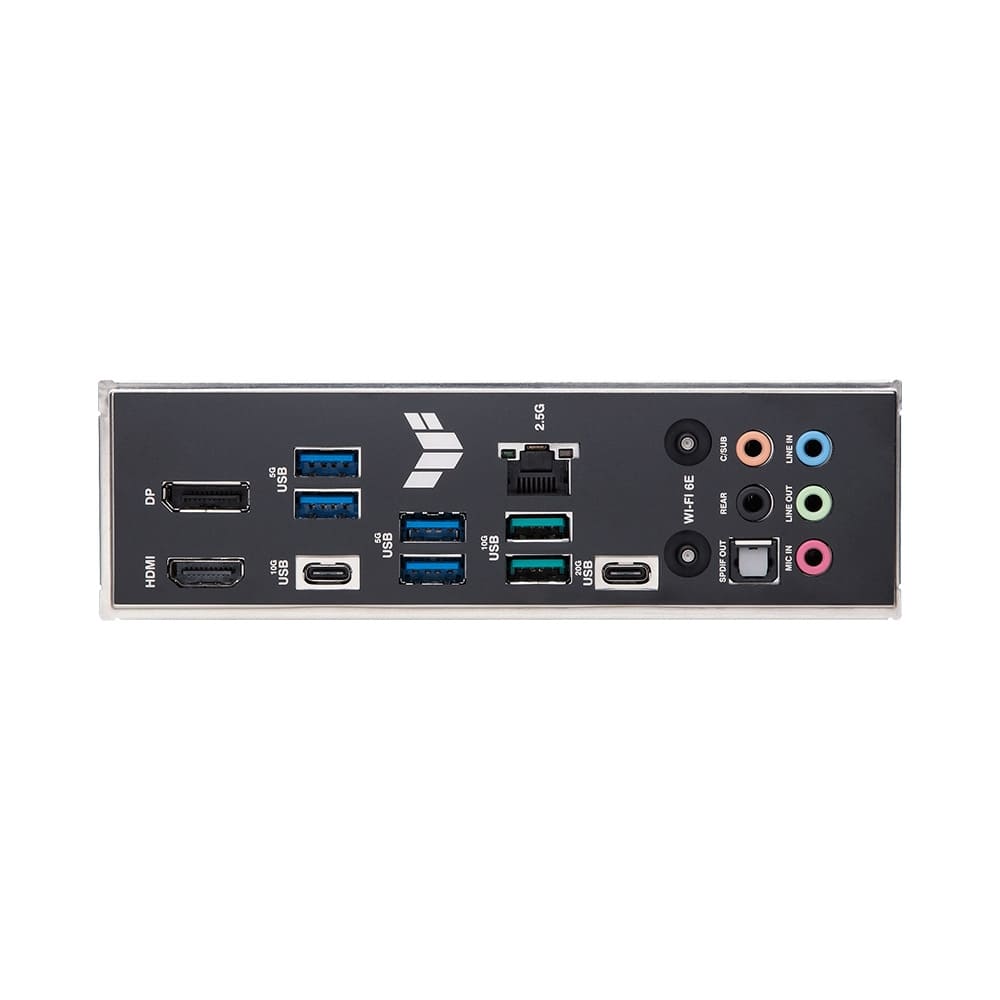

Cổng kết nối phía sau

1 x USB Type-C 20Gbps port (1 x USB Type-C®)

2 x USB Type-A 10Gbps ports

1 x USB Type-C 10Gbps ports

4 x USB Type-A 5Gbps ports

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Kiểu dáng

ATX (305 m x 244 mm )
