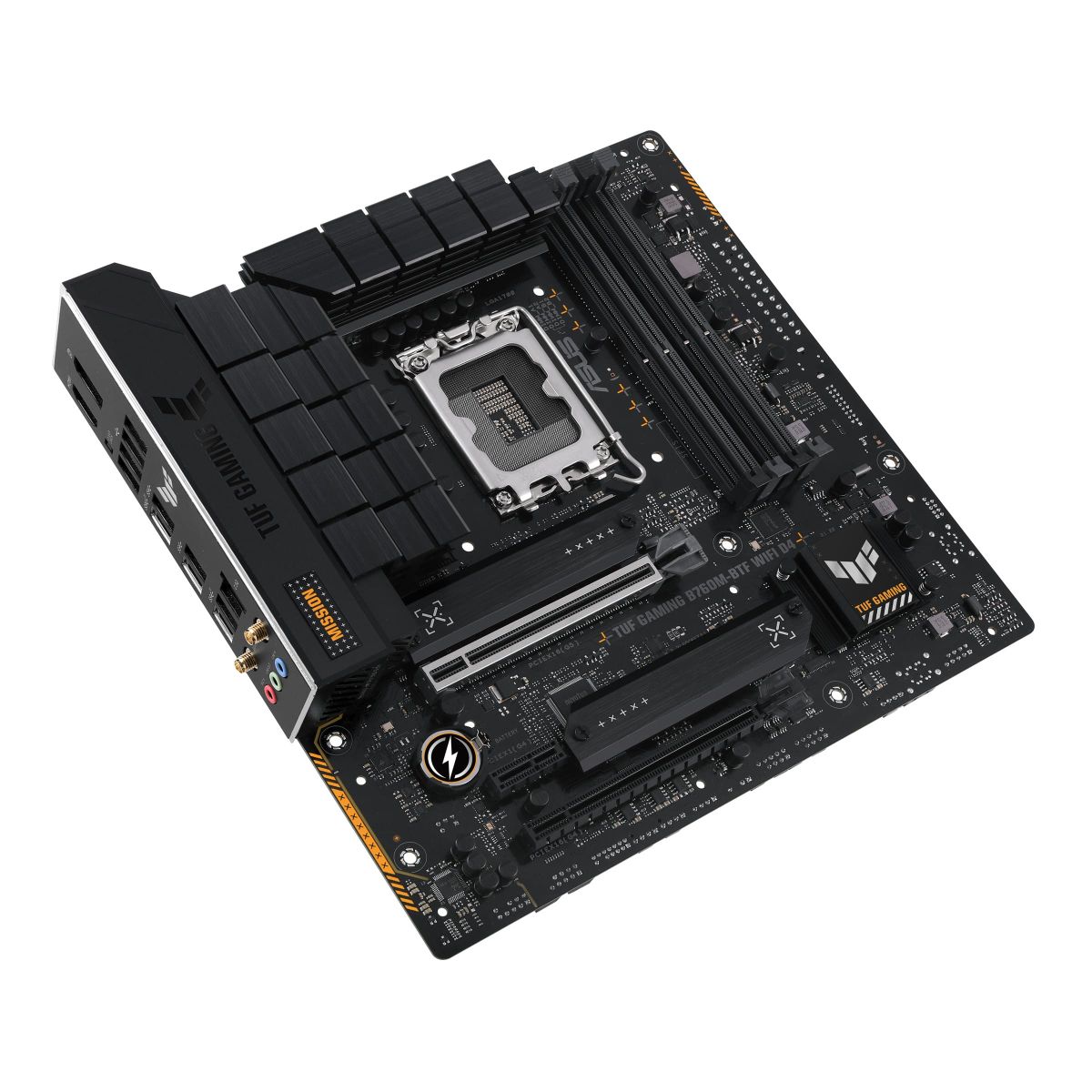

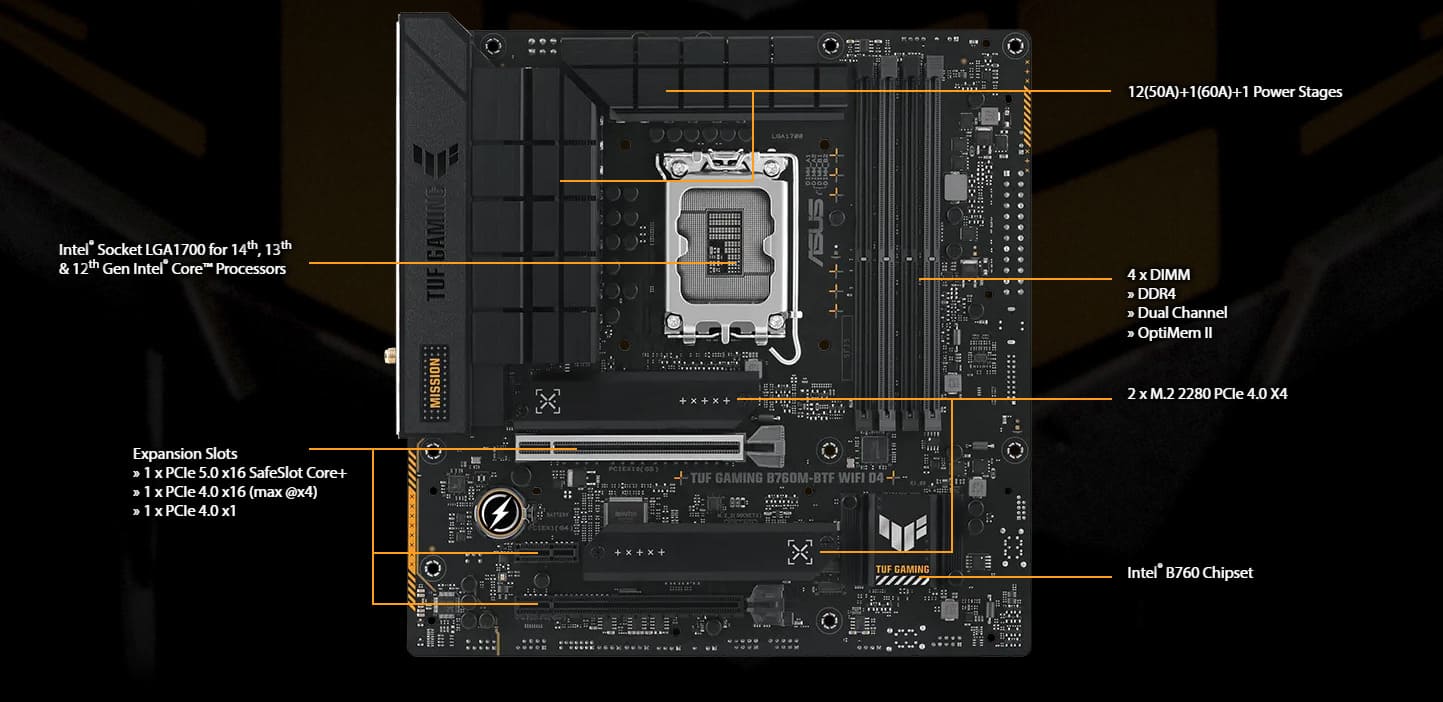

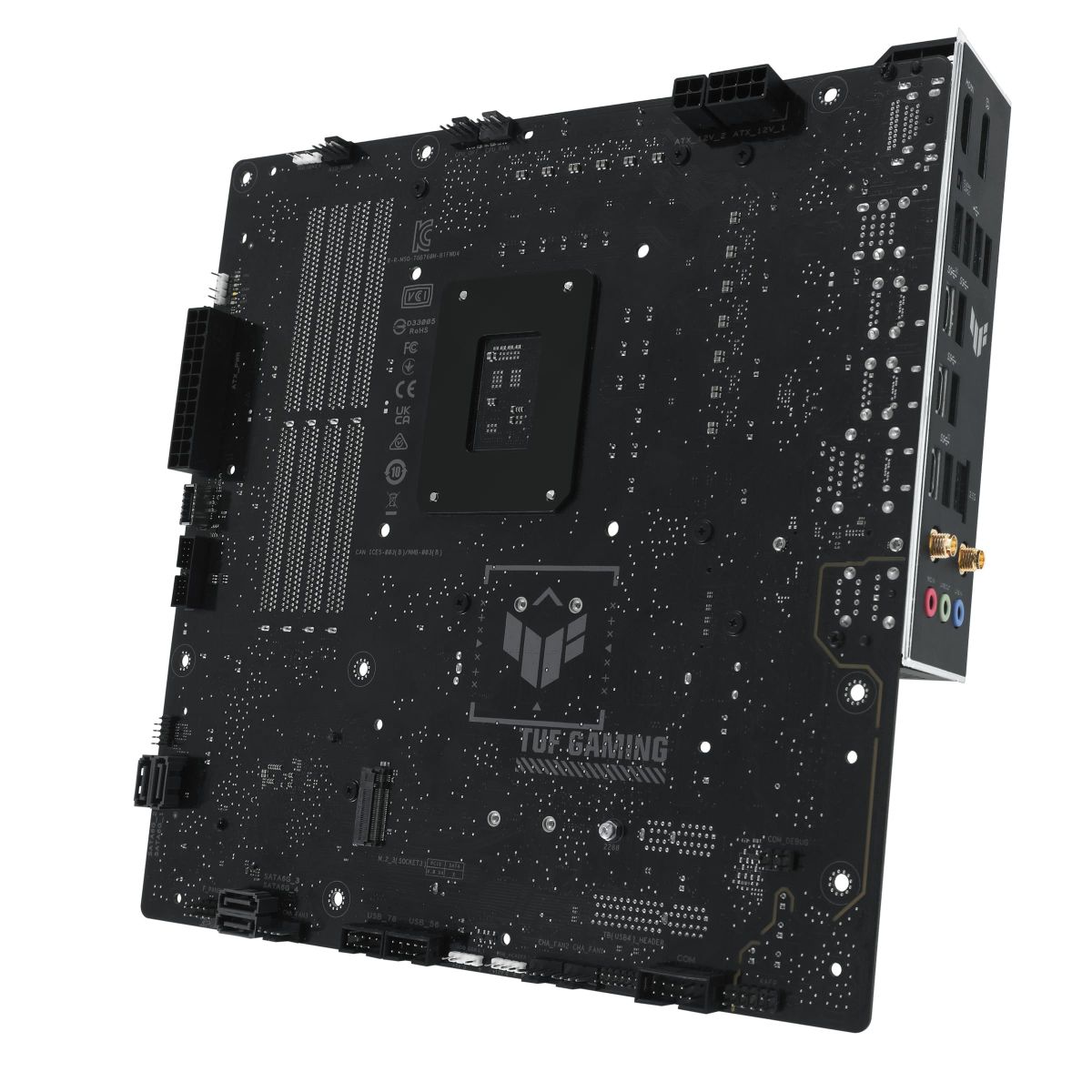

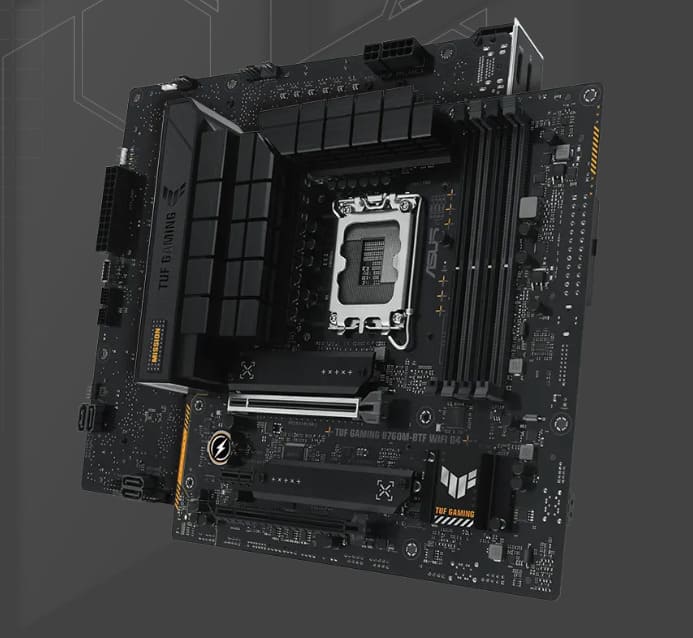

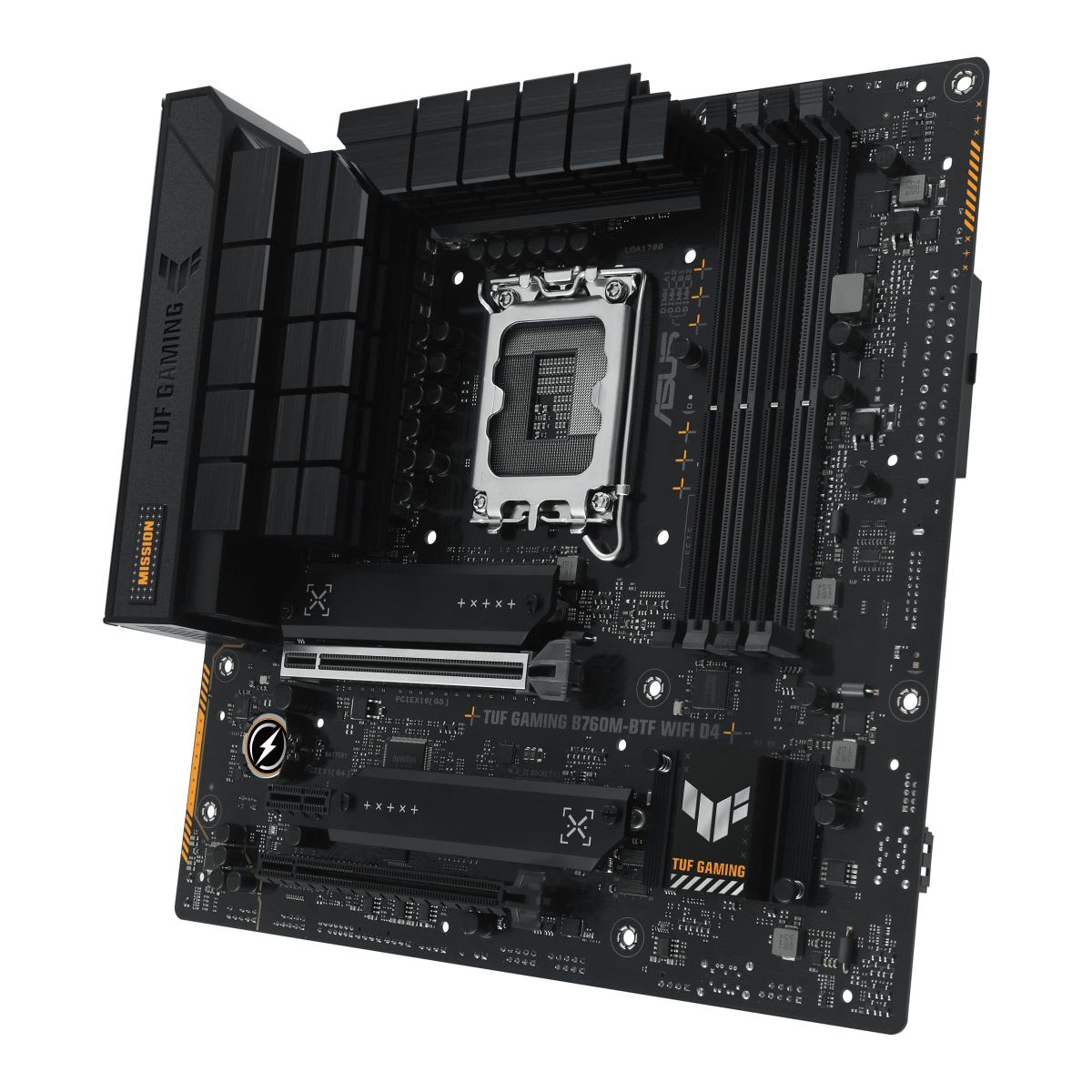

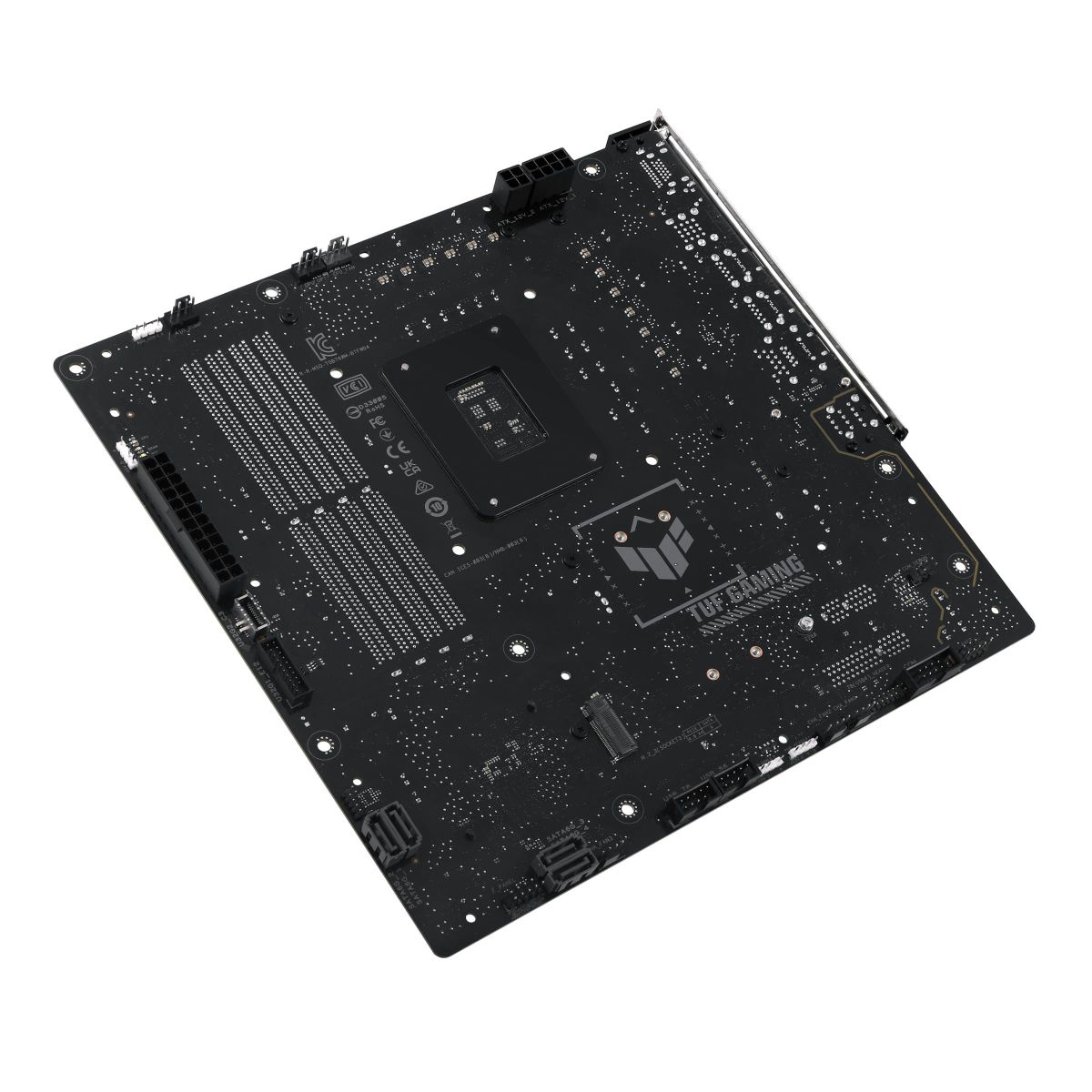

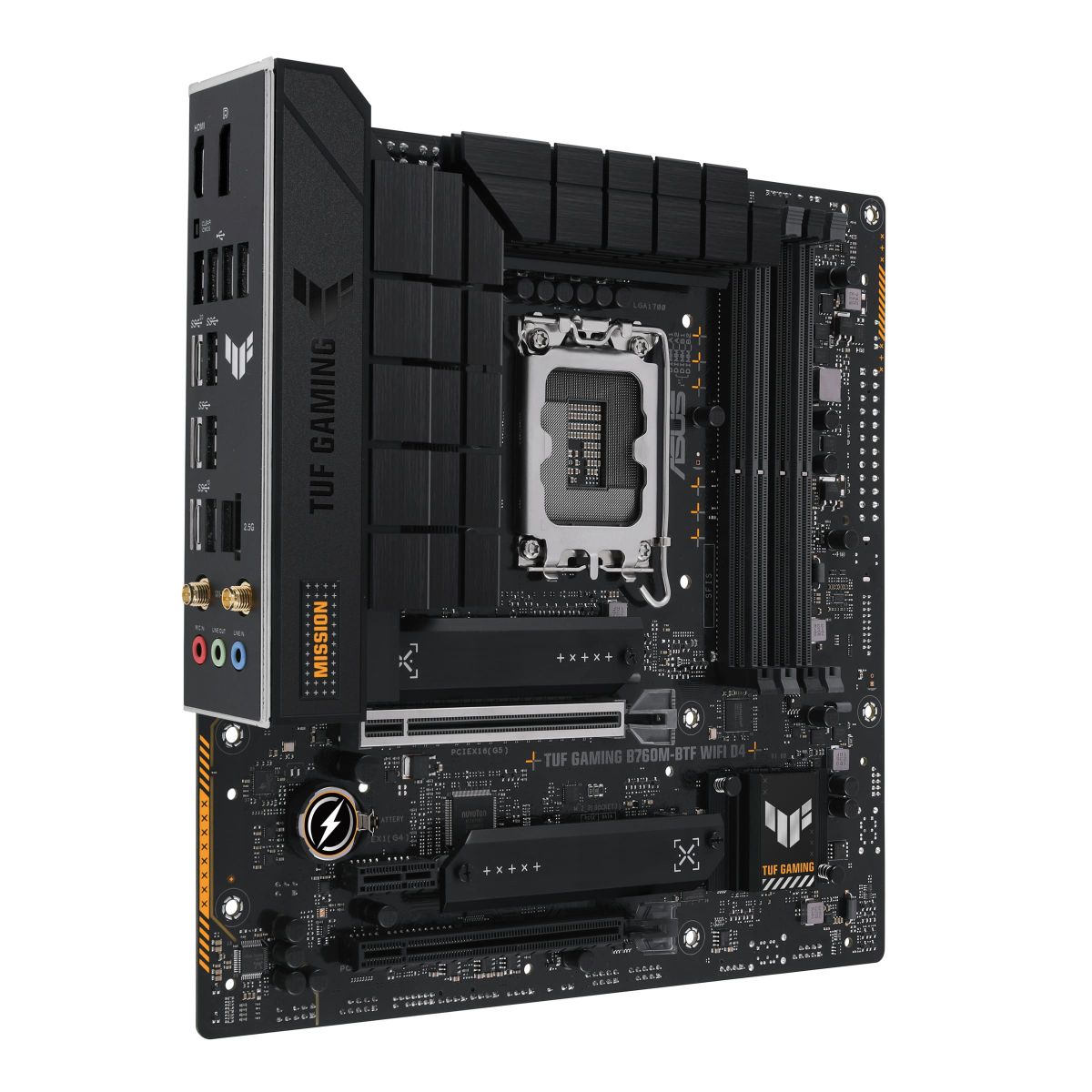

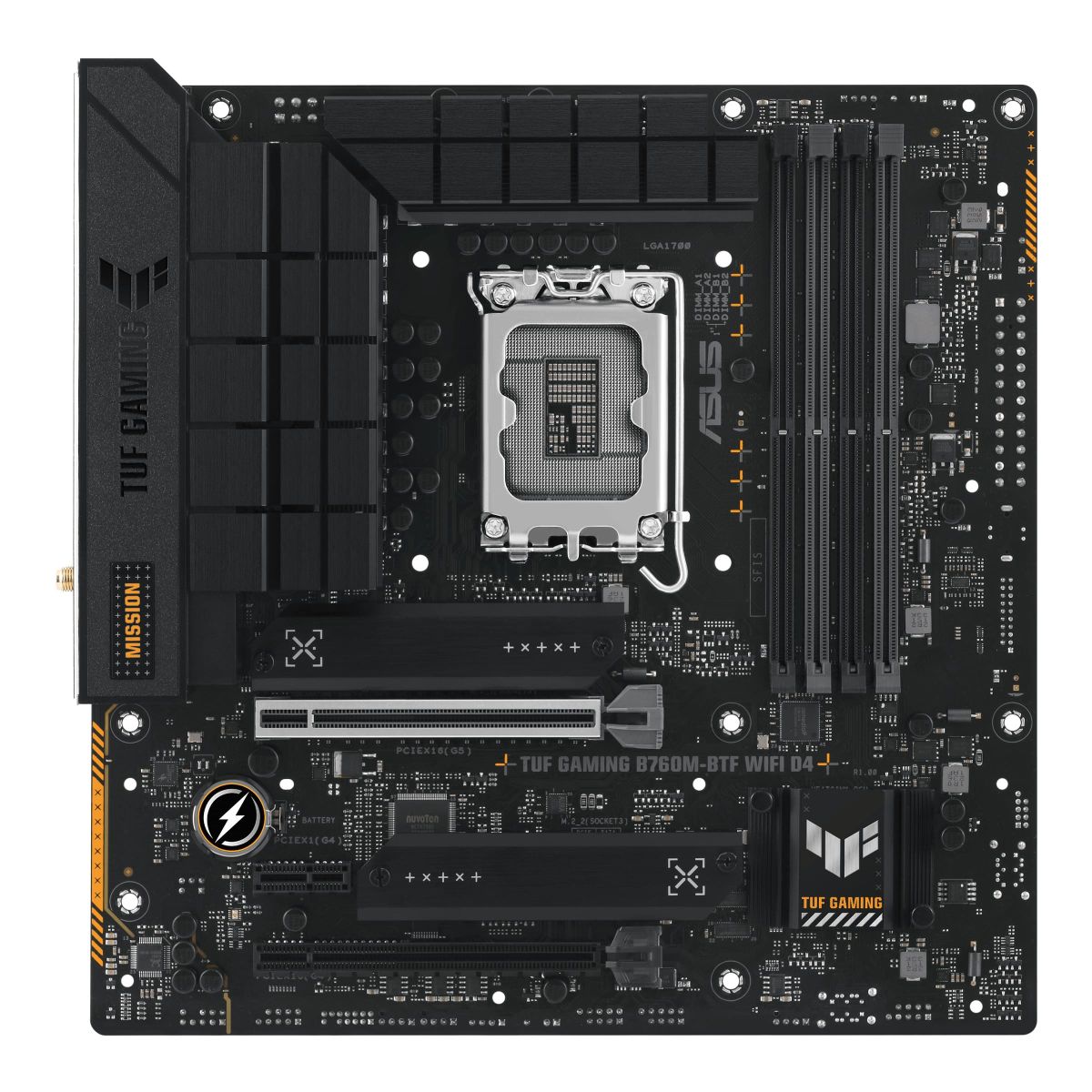

Mainboard Asus TUF GAMING B760M-BTF WIFI D4

CPU hỗ trợ

• Intel Core 12th/ 13th/

• Socket LGA1700

* Tham khảo www.asus.com để biết danh sách hỗ trợ CPU.

Chipset

Intel B760

Hỗ trợ Ram

4x DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133 MHz (Maximum 128GB)

Khe cắm mở rộng

1 x PCIe 5.0 x16

1 x PCIe 4.0 x16 (x4 mode)

1 x PCIe 4.0 x4 (x1 mode)

Hỗ trợ ổ cứng

• 2 x M.2 2242/2260/2280 PCIe 4.0 x4

• 1 x M.2280 PCIe 4.0 x4

• 4 x SATA 6Gbps

• *Support Raid 0, 1, 5, 10 cho SATA

LAN/Wireless

• LAN: Realtek 2.5Gb Ethernet

• Wireless: Wi-Fi 6 + Bluetooth 5.2

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Cổng kết nối bên trong

Fan and cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connectors

1 x 4-pin +12V Power connector

Storage

34 x M.2 slot

4 x SATA 6Gb/s

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 10-1 pin System Panel header

1 x Thunderbolt™ (USB4®) header

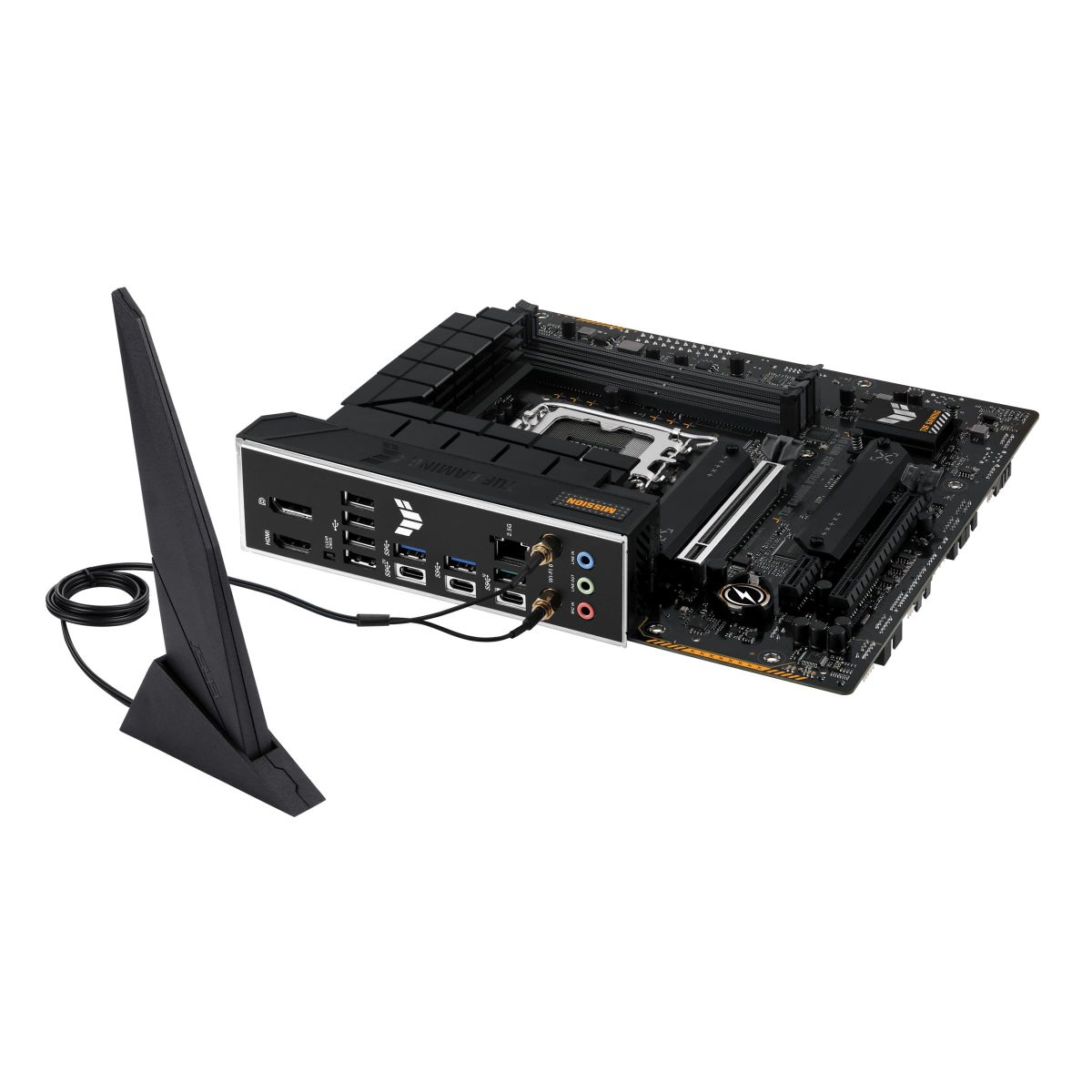

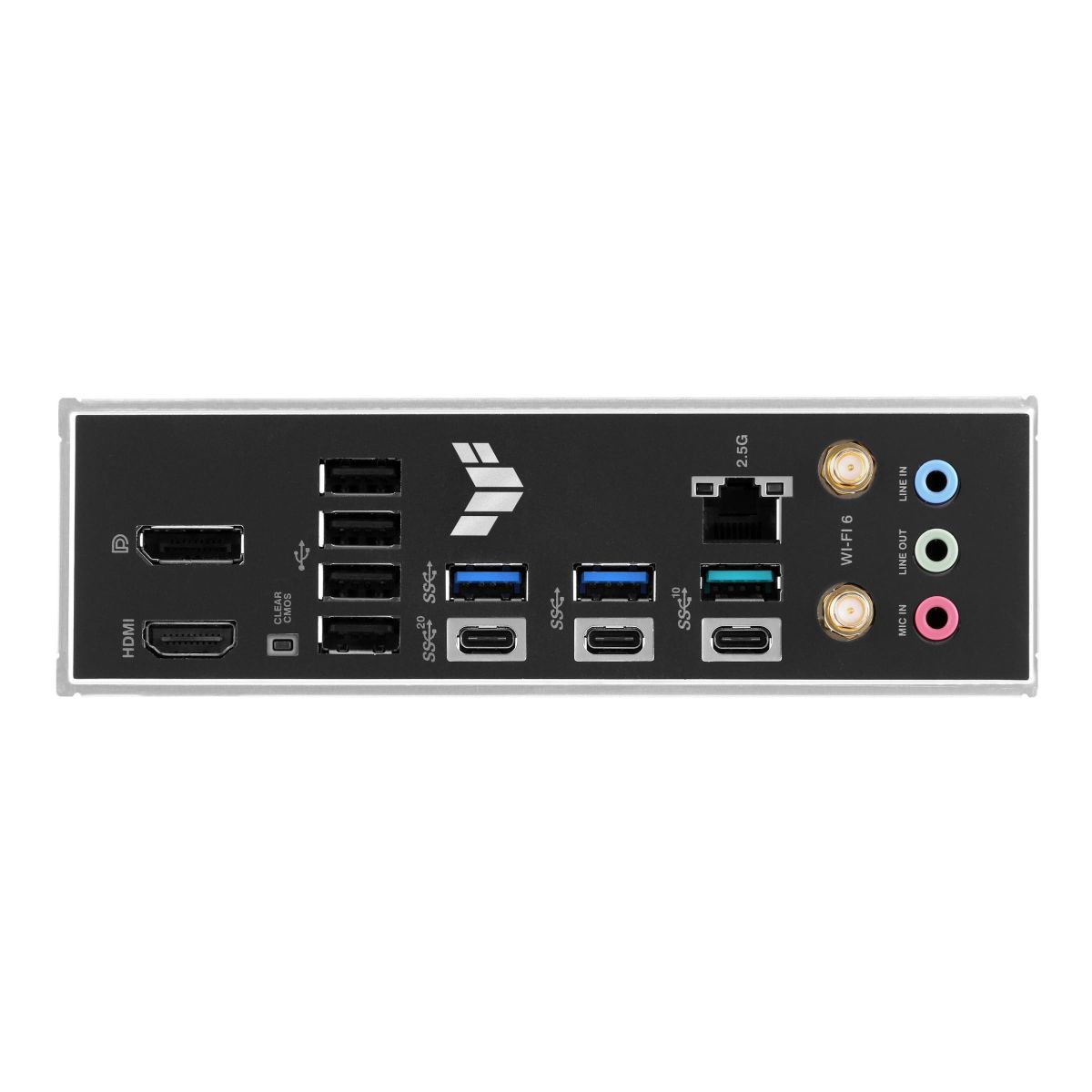

Cổng kết nối phía sau

1 x USB 3.2 Gen 2x2 Type-C port

1 x USB 3.2 Gen 2 Type-A ports

1 x USB 3.2 Gen 2 Type-C ports

2 x USB 3.2 Gen 1 Type-A ports

1 x USB 3.2 Gen 1 Type-C ports

4 x USB 2.0  Type-A ports

1 x DisplayPort

1 x HDMITM port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x Clear CMOS button

Kiểu dáng

m-ATX (244 m x 244 mm )
