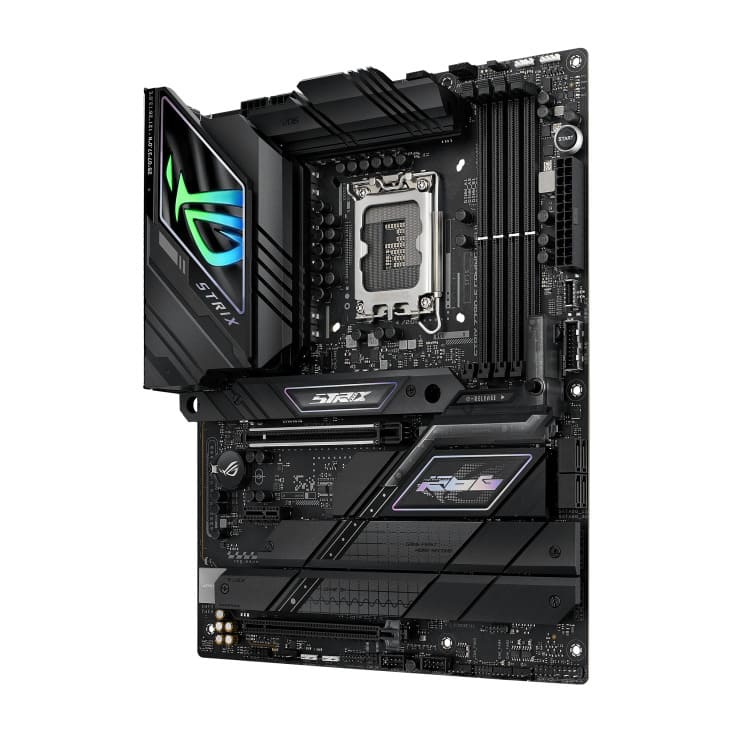

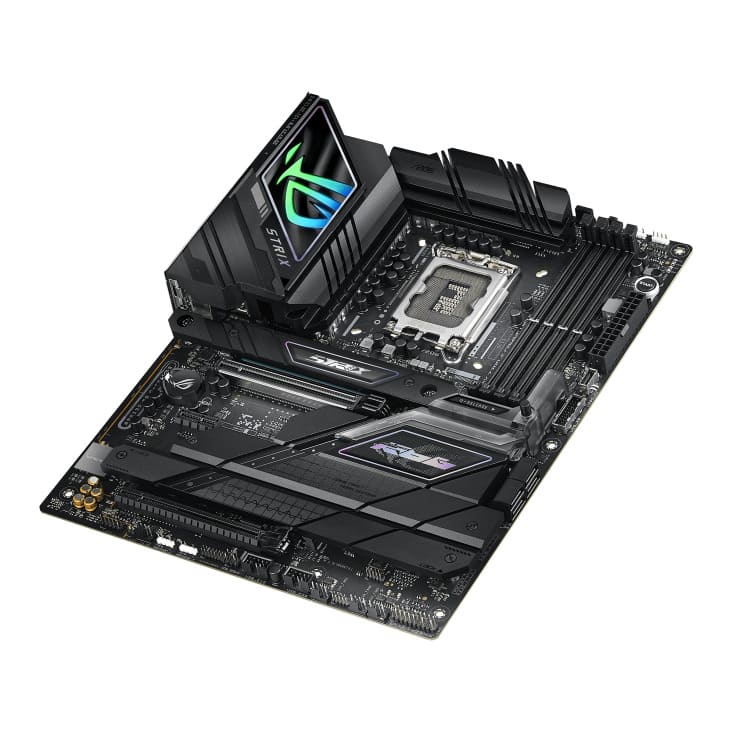

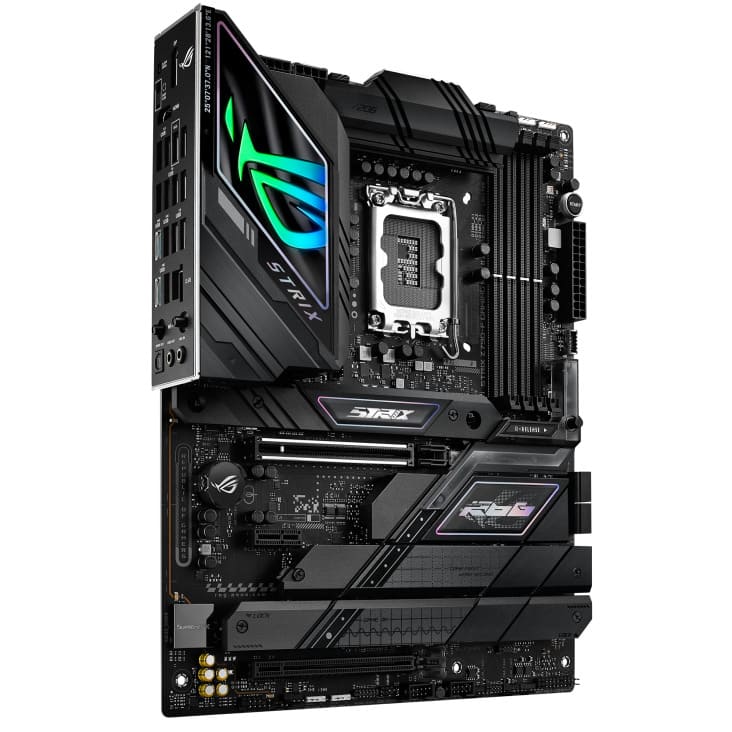

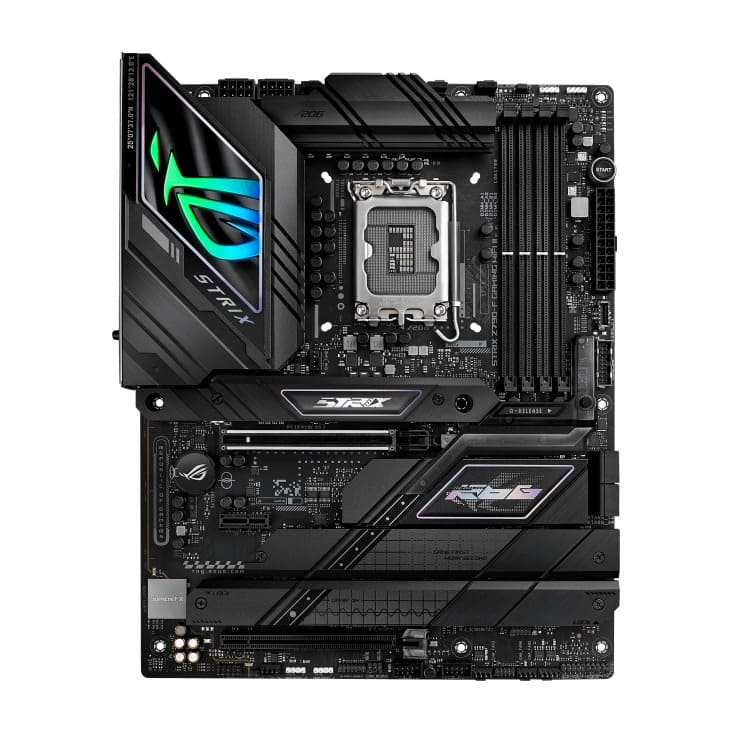

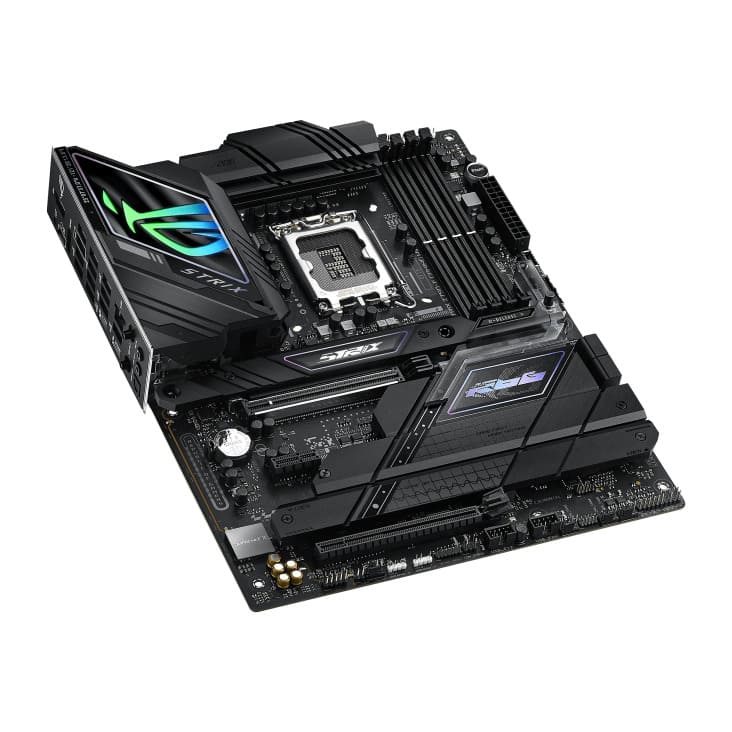

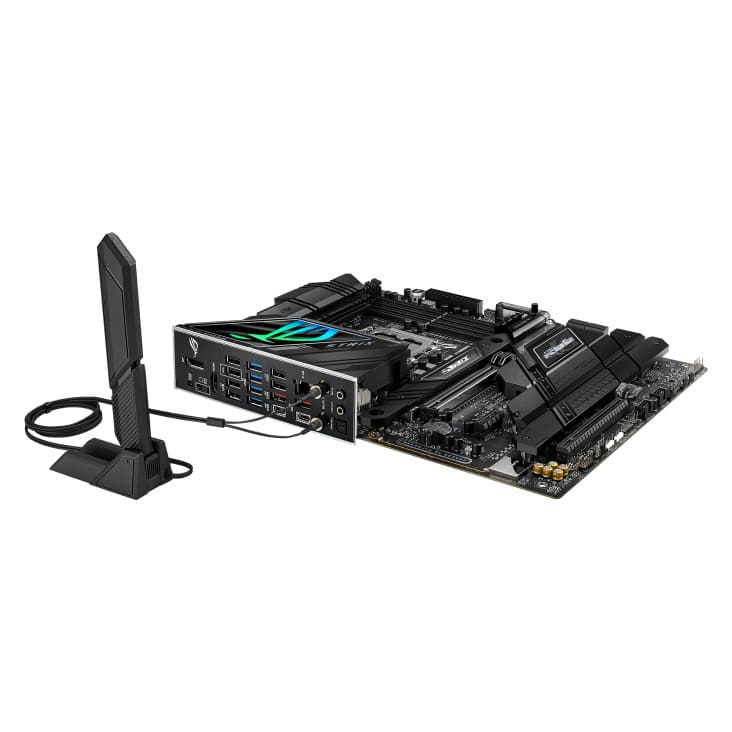

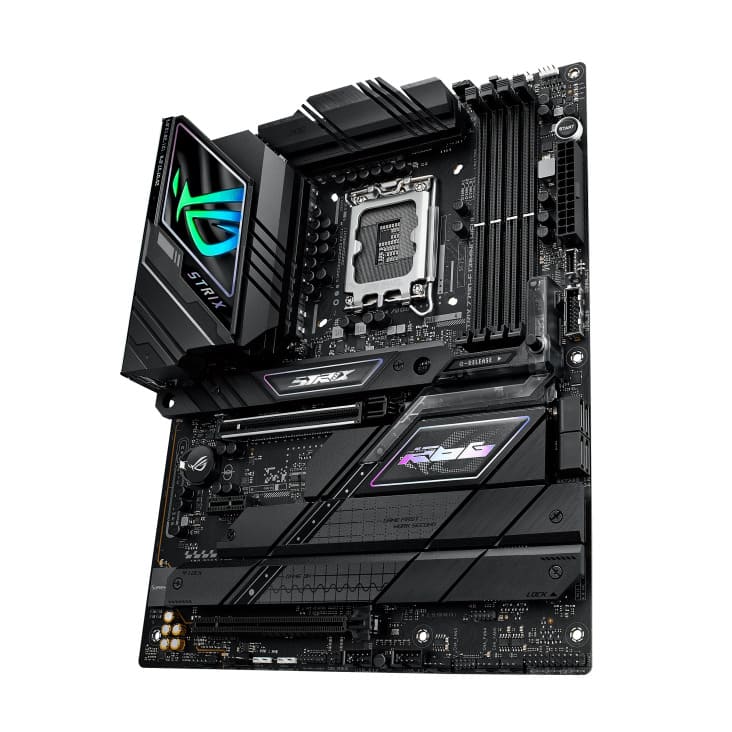

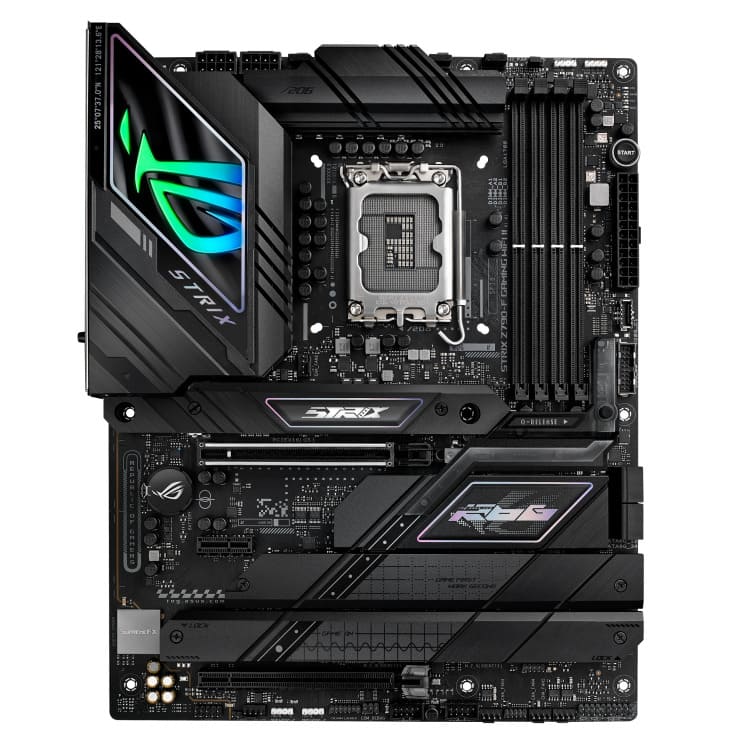

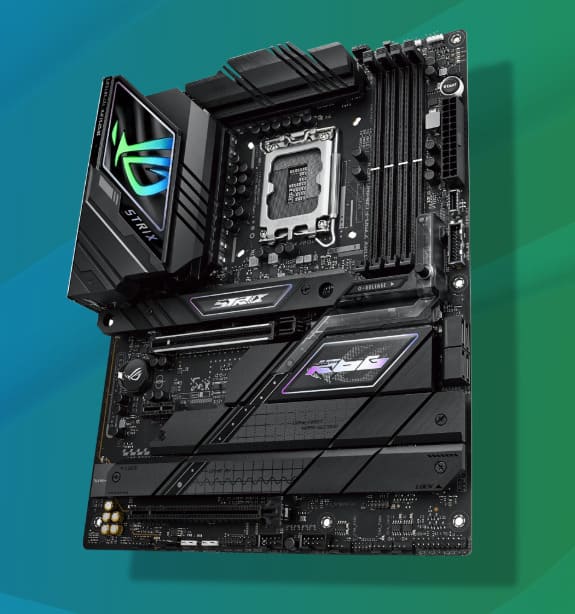

Mainboard Asus ROG STRIX Z790-F GAMING WIFI II

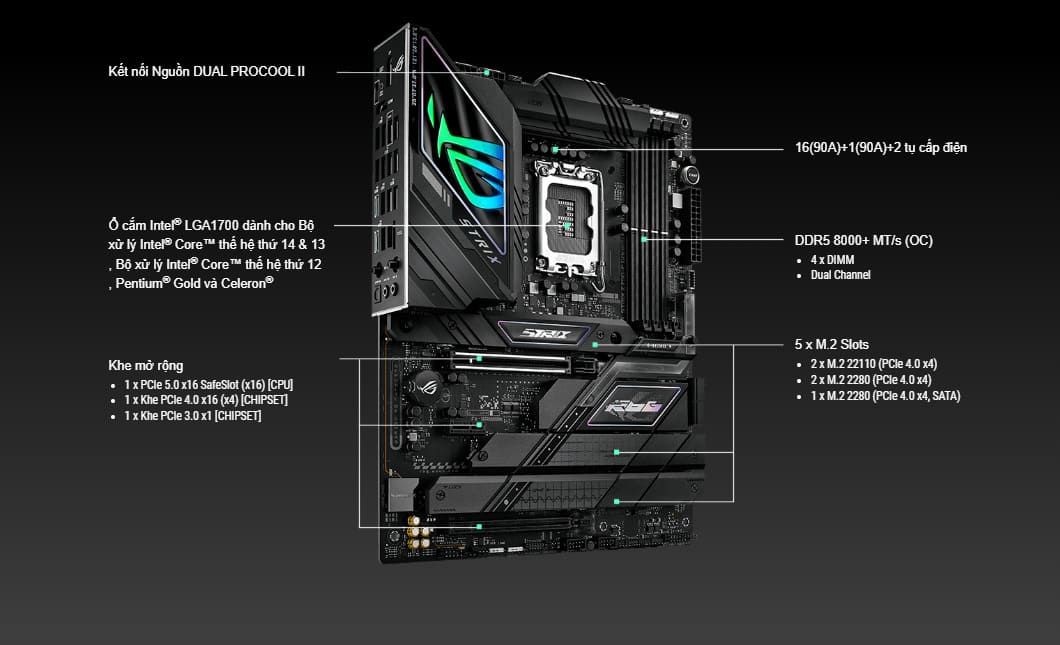

CPU hỗ trợ

• Intel Core 12th/ 13th/ 14th

• Socket LGA1700

Chipset

Intel Z790

Hỗ trợ Ram

4 x DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC) /6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz (Maximum 192GB)

Khe cắm mở rộng

• Intel Core 14th & 13th & 12th: 1 x PCIe 5.0 x16 (x16 mode)

• Intel Z690 chipset: 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1

Hỗ trợ ổ cứng

2 x M.2 2242/2260/2280/22110 PCIe 4.0 x4

2 x M.2 2280 PCIe 4.0 x4

1 x M.2 2242/2260/2280 PCIe 4.0 x4/ SATA

4 x SATA III 6Gbps

Support Raid 0, 1, 5, 10

LAN/Wireless

• LAN: Intel 2.5Gb Ethernet

• Wireless: Intel Wi-Fi 7 + BT 5.4

Audio

ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080

Cổng kết nối bên trong

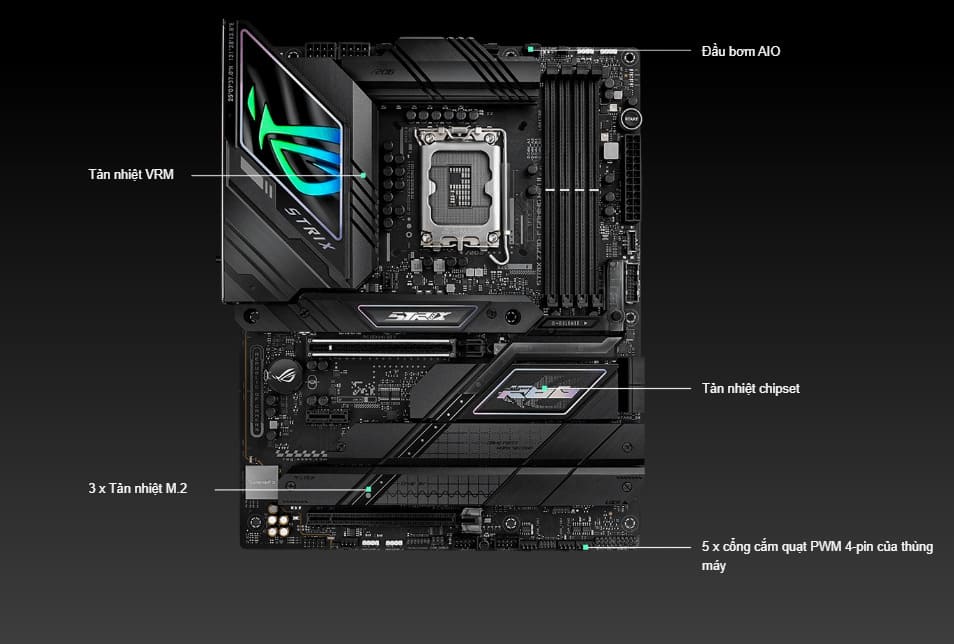

Fan and cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)

1 x USB 5Gbps header supports 2 additional USB 5G ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

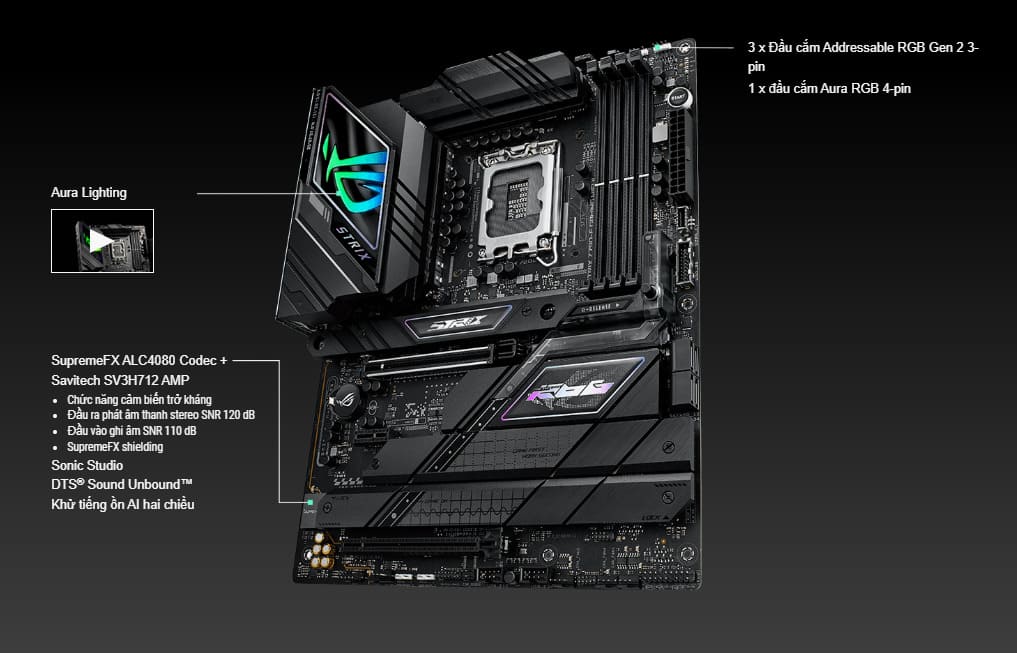

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

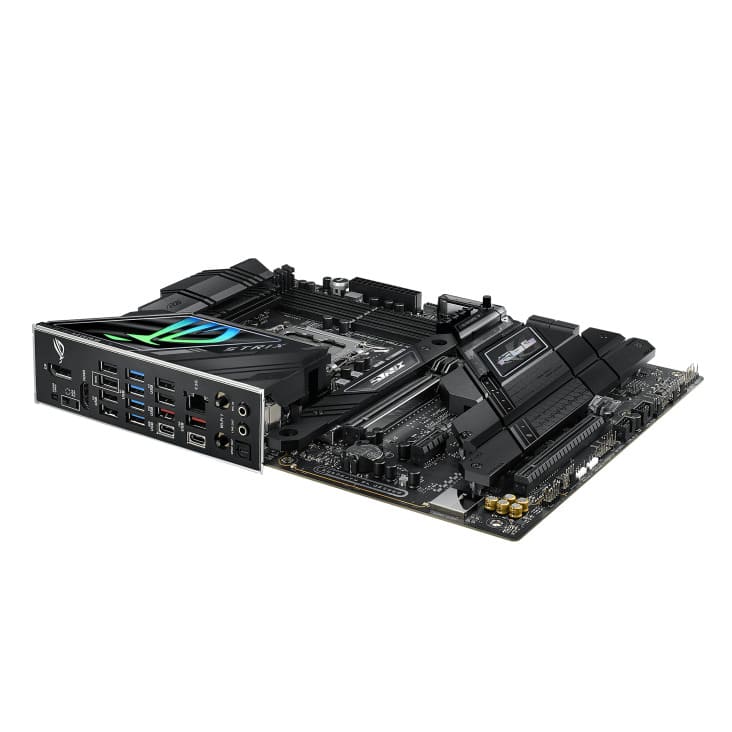

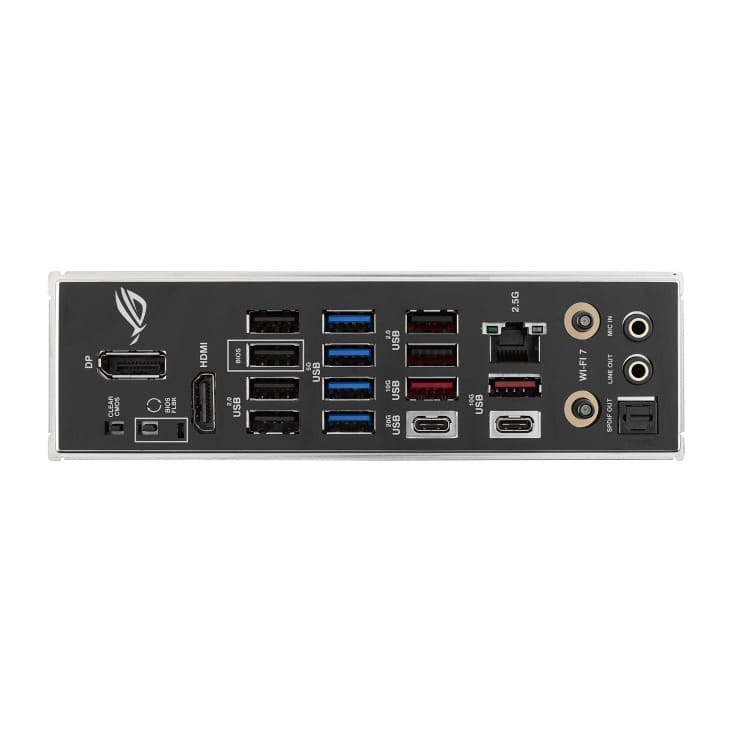

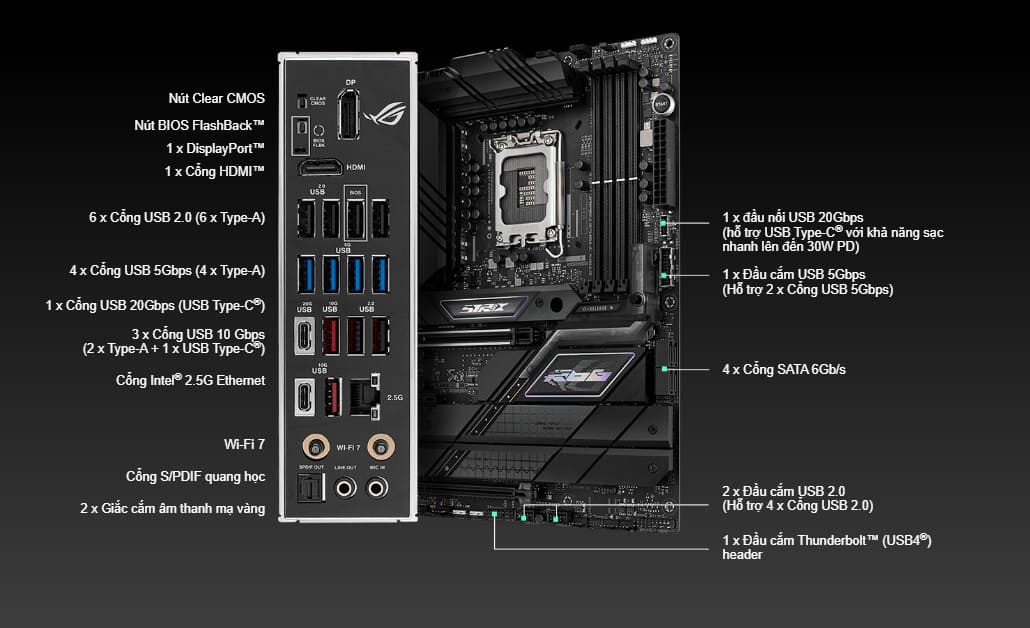

Cổng kết nối phía sau

1 x USB 20Gbps Type-C

2 x USB 10Gbps Type-A

1 x USB 10Gbps Type-C

4 x USB 5Gbps Type-A

6 x USB 2.0 Type-A

1 x DisplayPort

1 x HDMITM port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Kiểu dáng

ATX (305 mm x 244 mm)
