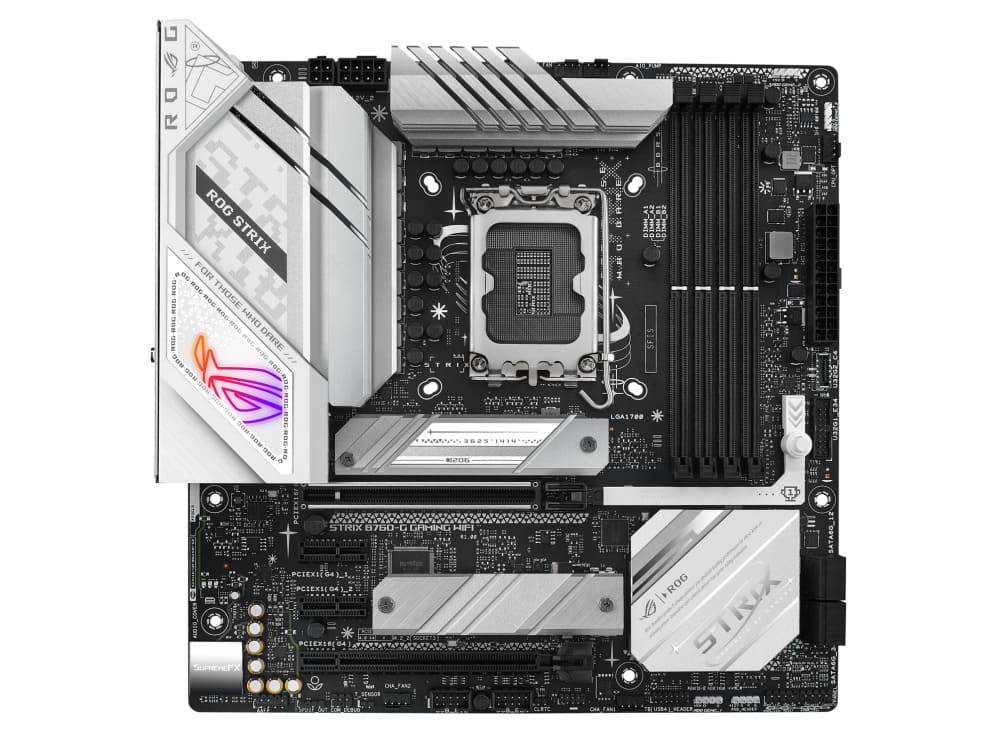

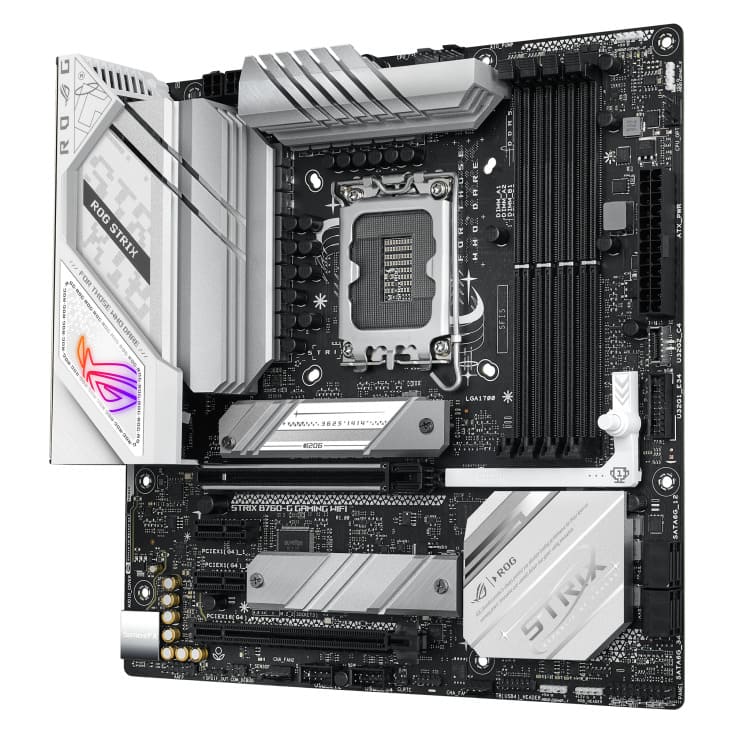

Mainboard Asus ROG STRIX B760-G GAMING WIFI

CPU hỗ trợ

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Chipset

B760

Hỗ trợ Ram

4 x DDR4 5333(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz (Maximum 128GB)

Khe cắm mở rộng

Intel® 14th & 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot(s)

Intel® B760 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 4.0 x1 slots

Hỗ trợ ổ cứng

Total supports 2 x M.2 slots and 4 x SATA

6Gb/s ports*

Intel® 14th & 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

Intel® B760 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports

SATA RAID 0/1/5/10.

LAN/ Wireless

• Wi-Fi 6E

• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5/6GHz frequency band*

• Bluetooth® v5.3

Audio

ROG SupremeFX 7.1-Channel High

Cổng kết nối bên trong

Fan and Cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 Type-C connector

1 x USB 3.2 Gen 1 header support 2 USB 3.2 Gen 1

1 x USB 2.0 header

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-5 pin System Panel header

1 x Thunderbolt™ (USB4®) header

Cổng kết nối phía sau

1 x USB 3.2 Gen 2x2 Type-C port

1 x USB 3.2 Gen 2 Type-A port

2 x USB 3.2 Gen 1 Type-A ports

1 x USB 3.2 Gen 1 Type-C ports

4 x USB 2.0 ports

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

Kiểu dáng

ATX (305 x 244 mm)
