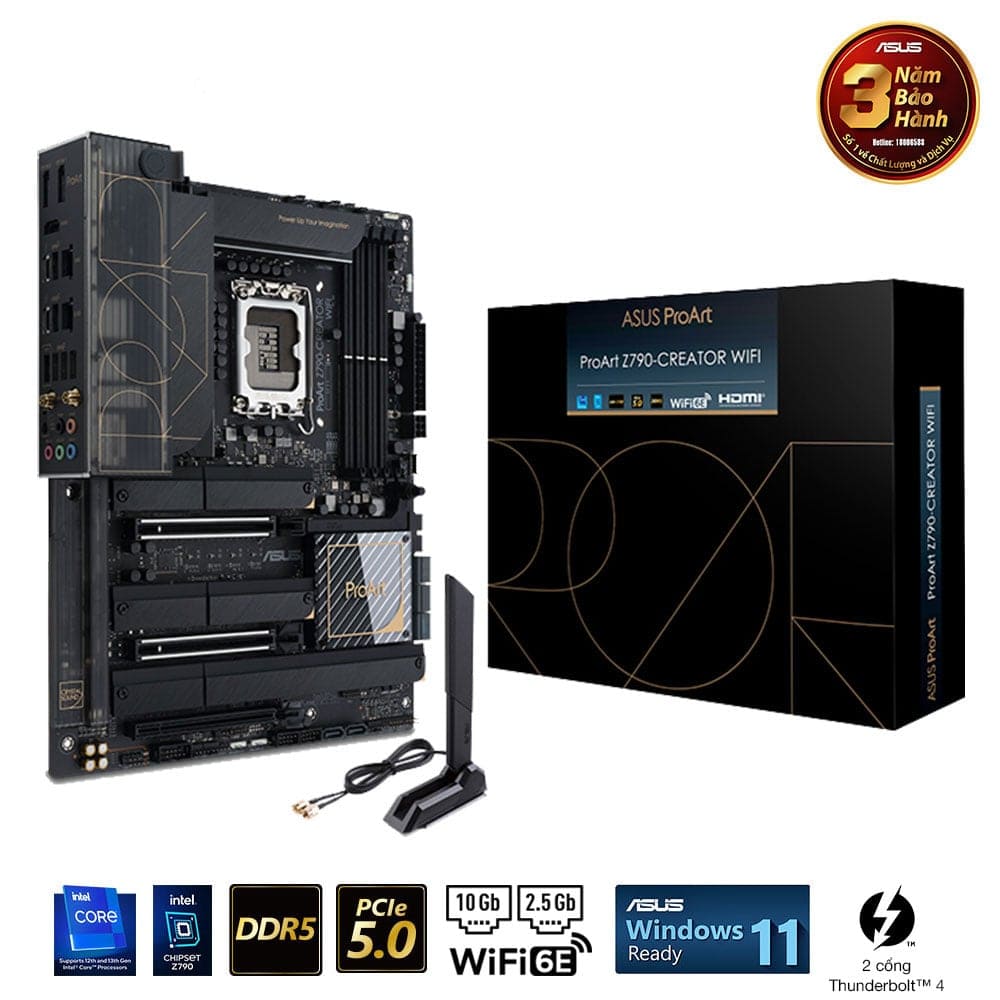

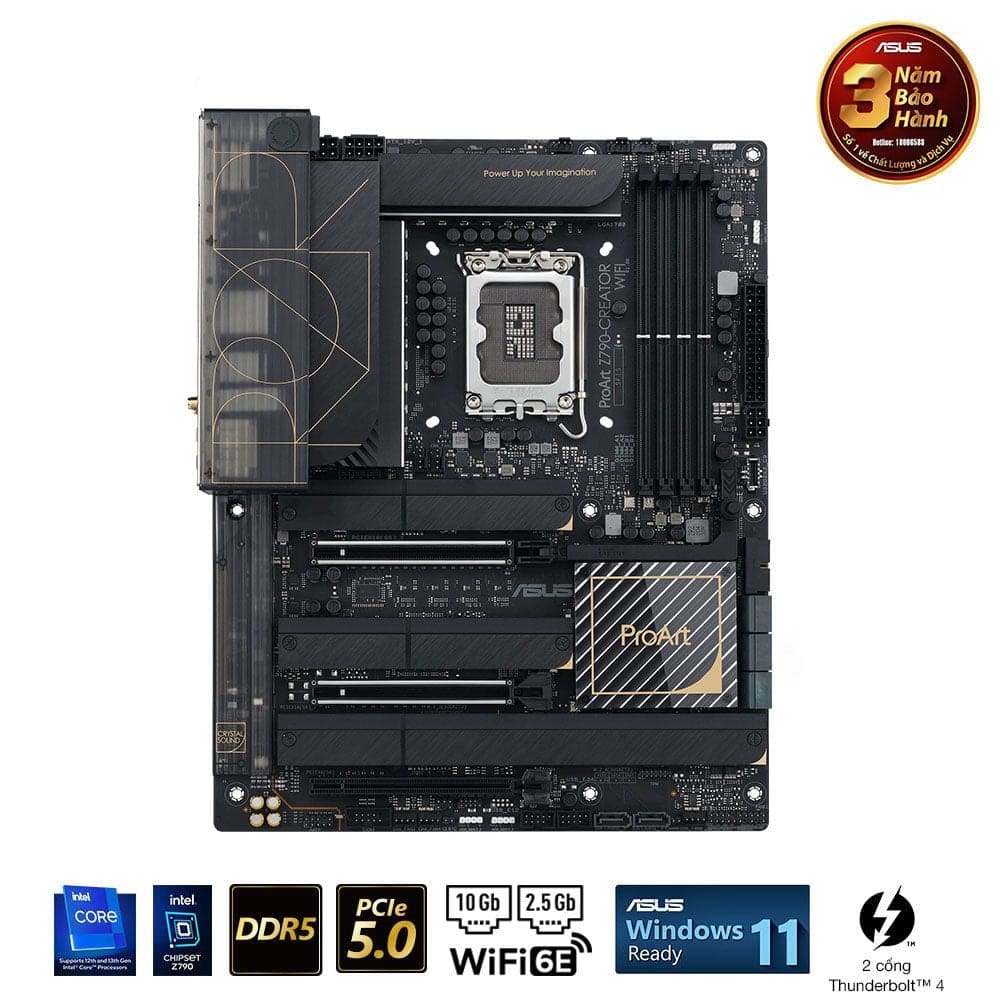

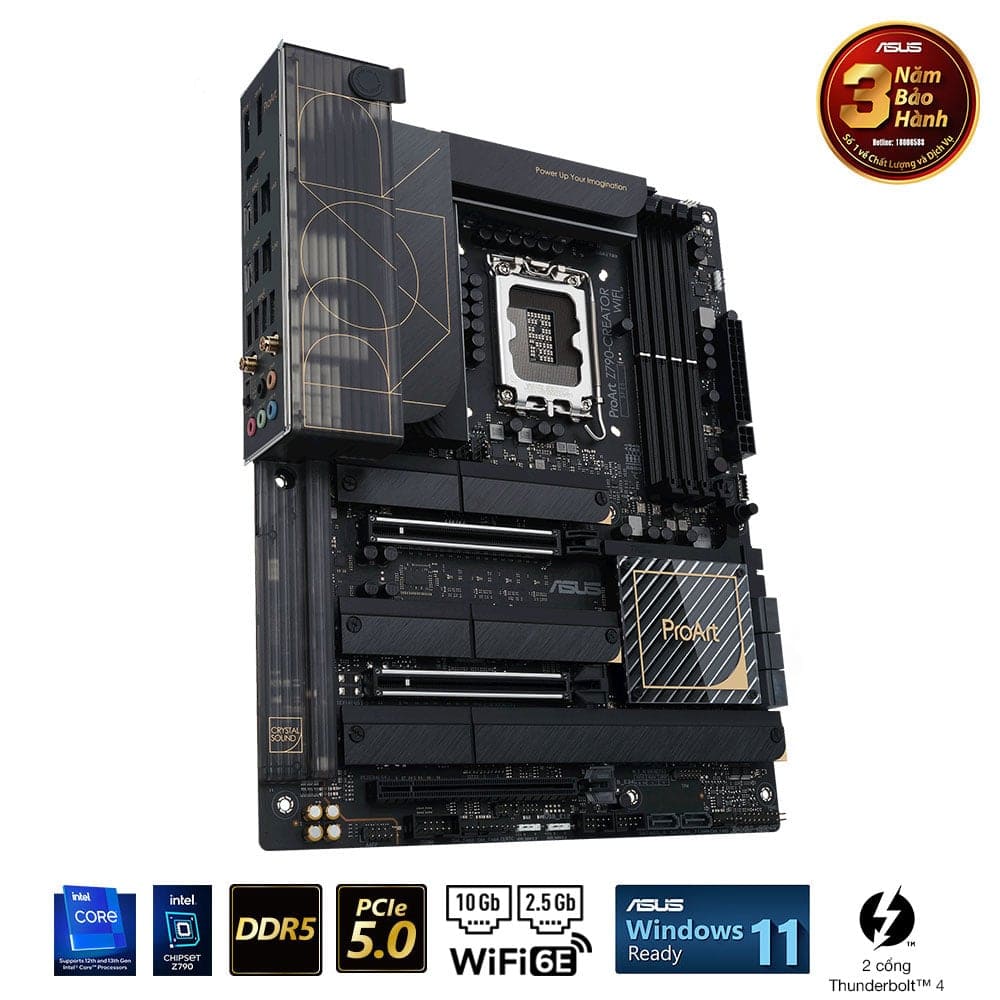

Mainboard Asus PROART Z790-CREATOR WIFI

CPU hỗ trợ

• Intel Core 12th/ 13th

• Socket LGA1700

Chipset

Z790

Hỗ trợ Ram

4 x DDR5 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz (Maximum 192GB)

Khe cắm mở rộng

Intel Core 13th & 12th:

2 x PCIe 5.0 x16 (supports x16 mode hoặc x8 mode)

Intel® Z790 Chipset:

1 x PCIe 4.0 x16 slot (supports x4 mode)

Hỗ trợ ổ cứng

2 x M.2 2242/2260/2280/22110 PCIe 4.0 x4

1 x M.2 2242/2260/2280 PCIe 4.0 x4

1 x 2242/2260/2280 (PCIe 4.0 x4 & SATA modes)

8 x SATA 6Gb/s

*Support RAID 0, 1, 5, 10

LAN/Wireless

• LAN: Intel 2.5Gb Ethernet + Marvell® AQtion 10Gb Ethernet

• Wireless: Intel Wi-Fi 6E + BT 5.3

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Cổng kết nối bên trong

-Fan and Cooling

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

5 x 4-pin Chassis Fan header(s)

-Power

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

1 x 6-pin +12V Power connector

-Storage

4 x M.2 slots

8 x SATA 6Gb/s ports

-USB

1 x USB 3.2 Gen 2x2 Type-C

1 x USB 3.2 Gen 1 header

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

-Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

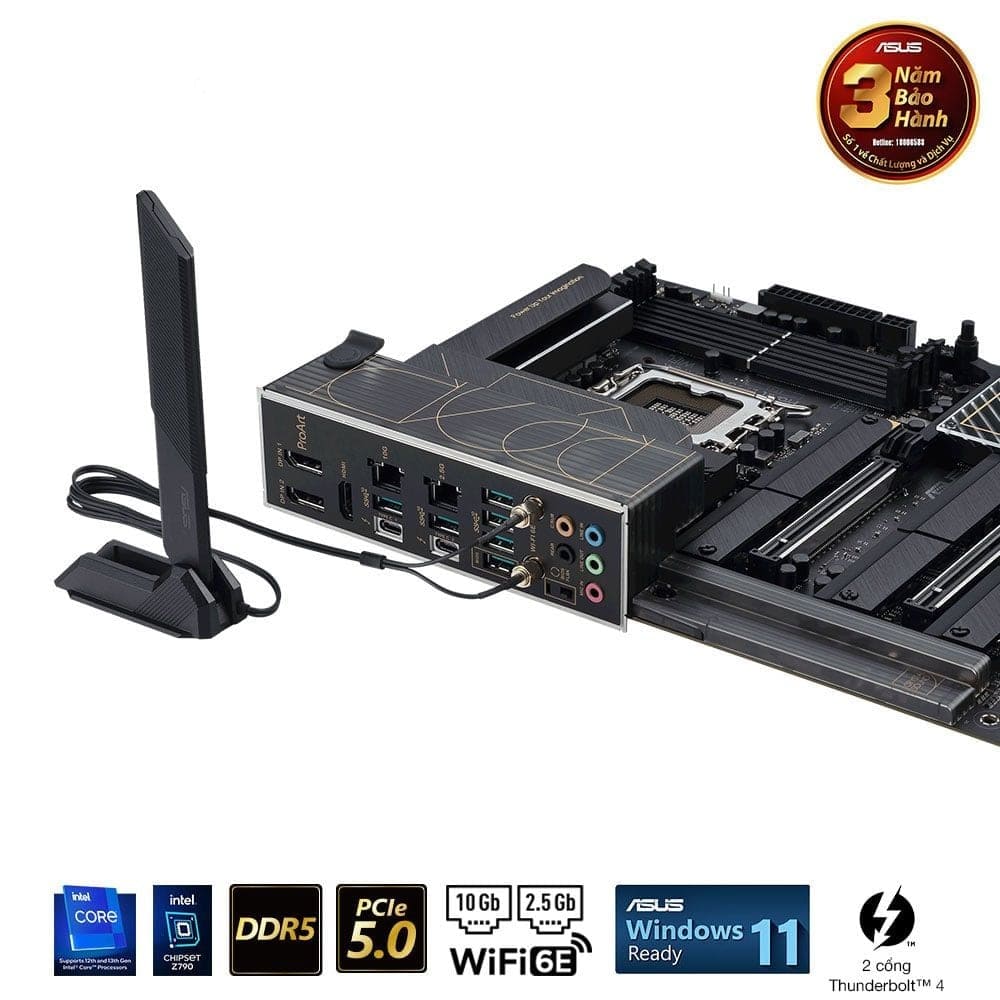

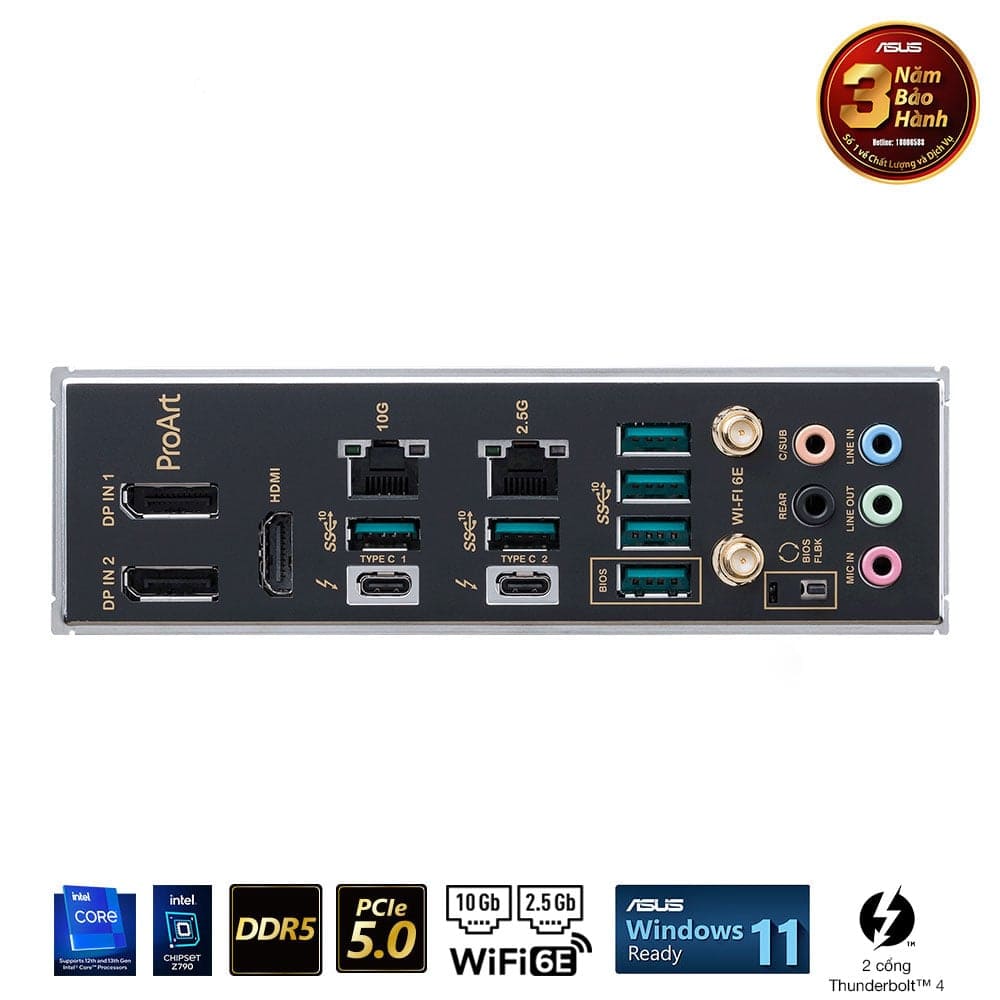

Cổng kết nối phía sau

2 x Thunderbolt™ 4 USB Type-C® port(s)

6 x USB 3.2 Gen 2 Type-A port

1 x HDMI® port

1 x ASUS Wi-Fi Module

1 x Marvell® AQtion 10Gb Ethernet port

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™  button

Kiểu dáng

ATX (305 x 244 mm)
