Mainboard ASUS PRIME Z790-A WIFI-CSM | LGA1700 - DDR5

  • Tên sản phẩm: Mainboard GIGABYTE Z790M AORUS ELITE AX
  • Socket: LGA1700
  • Chipset: Intel Z790M
  • Số khe RAM: 4x DDR5 DIMM, Dung lượng bộ nhớ tối đa 128GB
  • Khe cắm ổ cứng: 4 x Khe cắm M.2 & 4x Cổng SATA 6G
  • Số khe mở rộng: 5 x Khe cắm PCI-E
  • Tiêu chuẩn: ATX
  • Kích thước: 30.5 cm x 24.4 cm
Tình trạng: Còn hàng
  • Mã sản phẩm: ECDB73A707
  • Bảo hành: 36 tháng

10,000,000đ

Mua ngay

Địa chỉ: 52 Trần Minh Quyền, Phường 11, Quận 10, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 09h00 sáng cho tới 21h00

Hotline: 0889 575 775 - 0888 000 112

  • Thông số kỹ thuật
Thương Hiệu ASUS
Model ASUS PRIME Z790-A WIFI-CSM
Kích Cỡ ATX
CPU Socket Intel® Socket LGA1700
Chipset Intel® Z790 Chipset
Số Khe Ram 4
Bus Ram Hỗ Trợ

7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Un-buffered Memory

Dung Lượng Ram Tối Đa Hỗ Trợ 128GB DDR5
PCI Express 3.0 x16 1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x1 1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
Số Cổng SATA 4 x SATA 6Gb/s ports
M.2

Total supports 4 x M.2 slots

Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Chip Xử Lý Âm Thanh

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

LAN Chipset ASUS LANGuard
Tốc Độ LAN 1 x Intel® 2.5Gb Ethernet

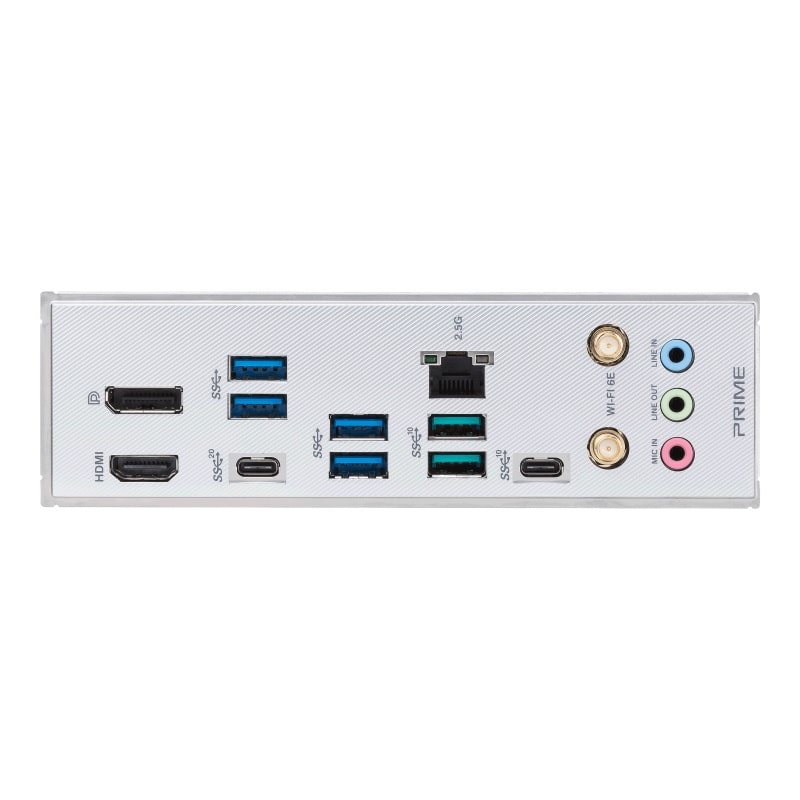

Cổng I/O Phía Sau 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
3 x Audio jacks
Onboard USB

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Cổng Kết Nối Khác

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

Kích Thước (W x L) 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chân Cắm Nguồn 1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
