Mainboard ASUS PRIME X670E - Pro Wifi-CSM | AM5 | DDR5

  • Tên sản phẩm: Mainboard ASUS PRIME X670E - Pro Wifi-CSM
  • Socket: AM5
  • Chipset: AMD X670
  • Số khe RAM: 4 x DIMM, Tối đa 128GB, DDR5
  • Khe cắm ổ cứng: 1 x M.2 SATA/NVMe, 4 x SATA 3 6Gb/s
  • Số khe mở rộng: 3 x M.2 NVMe
  • Tiêu chuẩn: ATX
  • Kích thước: 30,5 cm x 24,4 cm
Tình trạng: Còn hàng
  • Mã sản phẩm: 3091EEA758
  • Bảo hành: 36 tháng

10,500,000đ

Mua ngay

Địa chỉ: 52 Trần Minh Quyền, Phường 11, Quận 10, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 9h30 - 20h30

Hotline: 0.888.000.112

  • Thông số kỹ thuật
Sản phẩm Mainboard
Bảo hành 36 tháng
Hãng sản xuất ASUS
Model ASUS PRIME X670E-PRO WIFI
Đồ họa

1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Hỗ trợ CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Chipset AMD X670 Chipset
RAM 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Khe mở rộng

AMD Ryzen™ 7000 Series Desktop Processors*
-1 x PCIe 5.0 x16 slot
AMD X670 Chipset
-1 x PCIe 4.0 x16 slot (supports x4 mode)
-1 x PCIe 4.0 x4 slots
* Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.

Lưu trữ Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.
LAN 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Không dây

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.

Lưu trữ

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), hỗ trợ chế độ loại 2280 PCIe Gen5x4 (128 Gb / s) *
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), hỗ trợ loại 2230 / 2242/2260/2280/22110 chế độ SATA3 6.0 Gb / s & PCIe Gen4x4 (64 Gb / s) *
- 1 x Hyper M.2 Socket (M2_3, Key M), hỗ trợ loại 2280 PCIe Gen4x4 (64 Gb / s) chế độ *
- 1 x Hyper M.2 Socket (M2_4, Key M), hỗ trợ chế độ loại 2280 PCIe Gen4x4 (64 Gb / s) *
- 4 x SATA3 6.0 Gb / s Đầu nối
ASMedia ASM1061:
- 4 x SATA3 6.0 Gb / s Kết nối * *

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

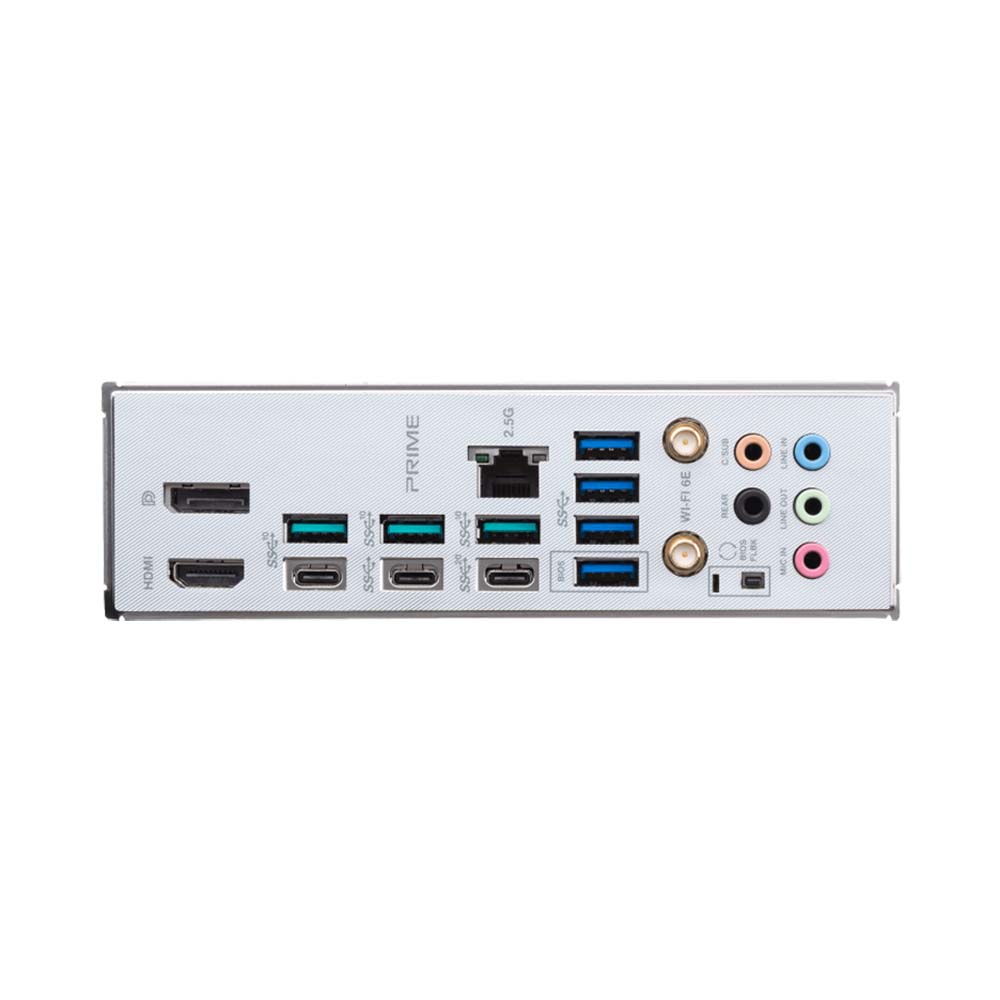

Cổng kết nối trước

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®)
5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Cổng kết nối phía sau


Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Kích thước ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Hệ điều hành Windows® 11, Windows® 10 64-bit
