Mainboard ASUS Prime X670-P Wifi CSM | AM5 | DDR5

  • Tên sản phẩm: Mainboard ASUS Prime X670-P Wifi CSM | AM5 | DDR5
  • Socket: AM5
  • Chipset: AMD X670
  • Số khe RAM: 4 x DIMM, Tối đa 128GB, DDR5
  • Khe cắm ổ cứng: 3 x M.2 slots and 6 x SATA 6Gb/s ports
  • Số khe mở rộng: 1 x PCIe 4.0 x16 slot| 2 x PCIe 4.0 x16 slots| 1 x PCIe 3.0 x1 slot
  • Tiêu chuẩn: ATX
  • Kích thước: 30,5 cm x 24,4 cm
  • Phần mềm hỗ trợ:  ASUS Exclusive Software/ UEFI BIOS
Tình trạng: Còn hàng
  • Mã sản phẩm: 3C48907B46
  • Bảo hành: 36 tháng

8,760,000đ

Mua ngay

Địa chỉ: 52 Trần Minh Quyền, Phường 11, Quận 10, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 09h00 sáng cho tới 21h00

Hotline: 0889 575 775 - 0888 000 112

  • Thông số kỹ thuật

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot**
* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports**
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

V-M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately.

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

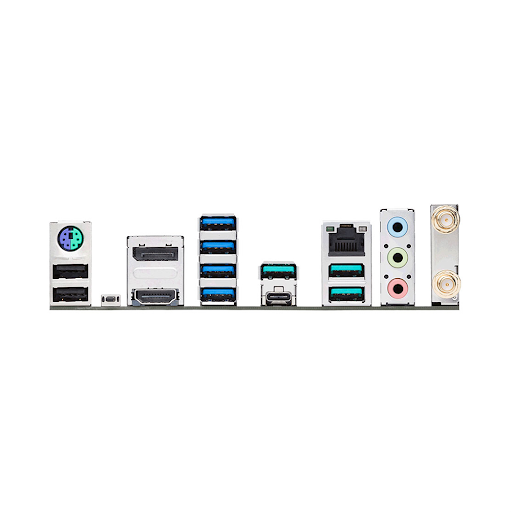

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

  • Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
  • Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
  • Storage related
    3 x M.2 slots (Key M)
    6 x SATA 6Gb/s ports
  • USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
    3 x Addressable Gen 2 headers
    2 x Aura RGB headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-5 pin System Panel header
    1 x Thunderbolt™ (USB4®) header

Special Features

  • ASUS 5X PROTECTION III
    – DIGI+ VRM (- Digital power design with DrMOS)
    – ESD Guards
    – LANGuard
    – Overvoltage Protection
    – Safeslot Core+
    – Stainless-Steel Back I/O
  • ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED Core
    – Q-Slot
  • ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
  • ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – ProCool
  • Aura Sync
    – Aura RGB headers
    – Addressable Gen 2 headers

Software Features

  • ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4 with AI Cooling II
    – Power Saving
  • AI Suite 3
    – TurboV EVO
    – DIGI+ VRM
    – PC Cleaner
  • ASUS CPU-Z
  • MyASUS
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Rubber Package for M.2
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
