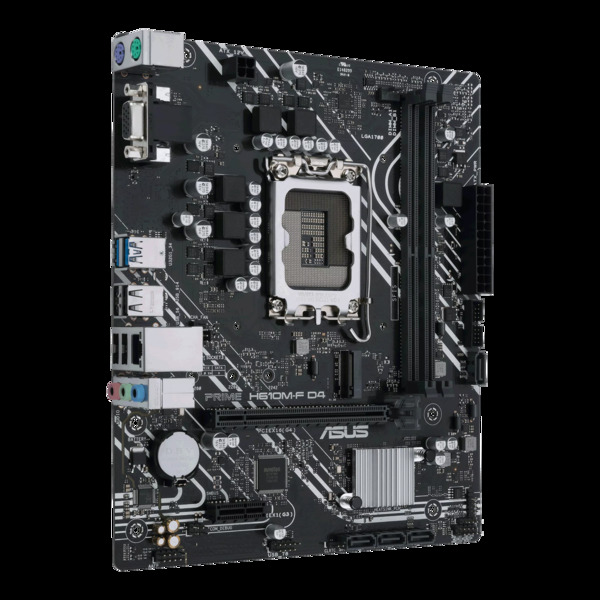

Mainboard Asus Prime H610M-F DDR4 | LGA1700 - mATX

CPU

• Intel^® Socket LGA1700 for 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
• Supports up to Intel^® 65W CPU
• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel^® H610 Chipset

Memory

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel^® Extreme Memory Profile (XMP)

Graphics

• 1 x D-Sub
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  • 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 4 ports)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback

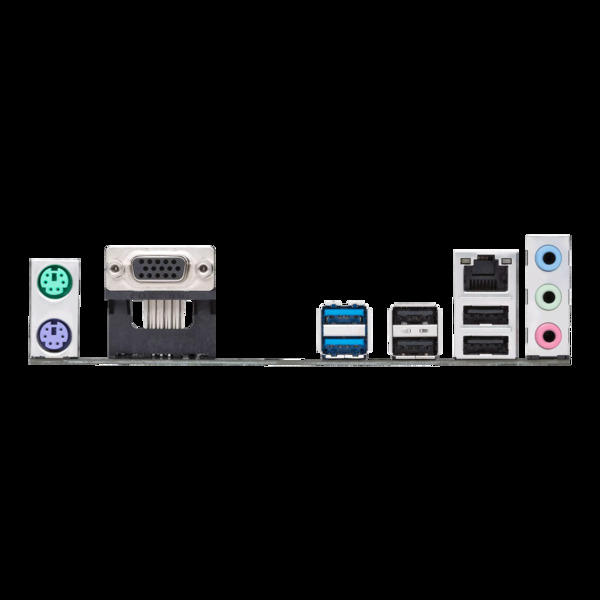

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x D-Sub port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port
• Internal I/O Connectors

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header

• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 4-pin + 12V Power connector
• Storage related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header support additional 2 USB 2.0 ports
• Miscellaneous
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header
• ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core

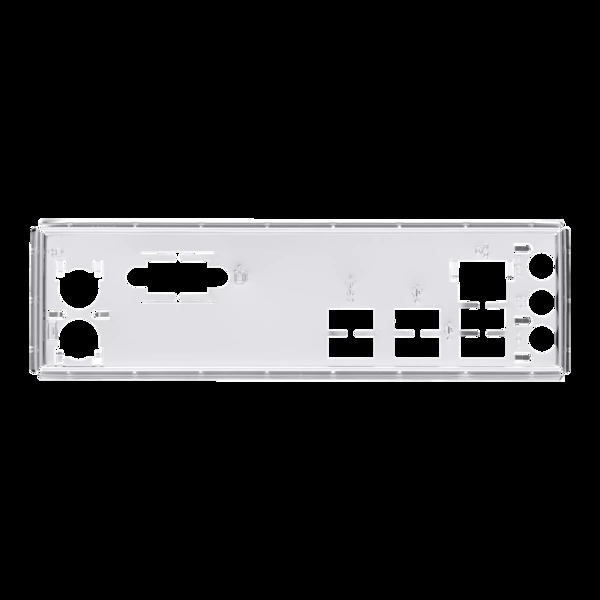

  • Stainless-Steel Back I/O
• ASUS Q-Design
  • Q-DIMM
  • Q-Slot
• ASUS Thermal Solution
  • Aluminum heatsink design
• ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
    • Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • ASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Operating System

• Windows^® 11 64-bit, Windows^® 10 64-bit

Form Factor

• mATX Form Factor
• 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
