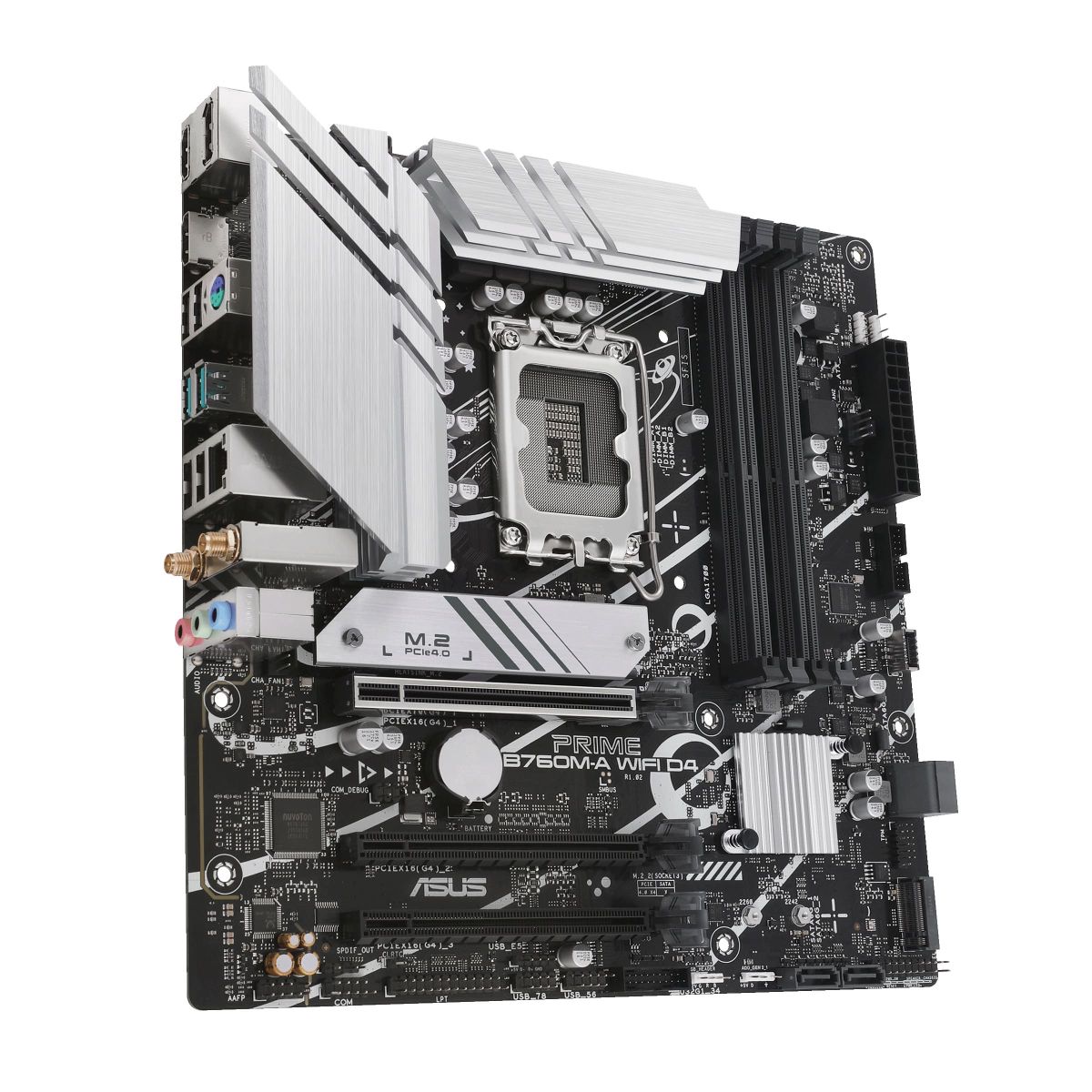

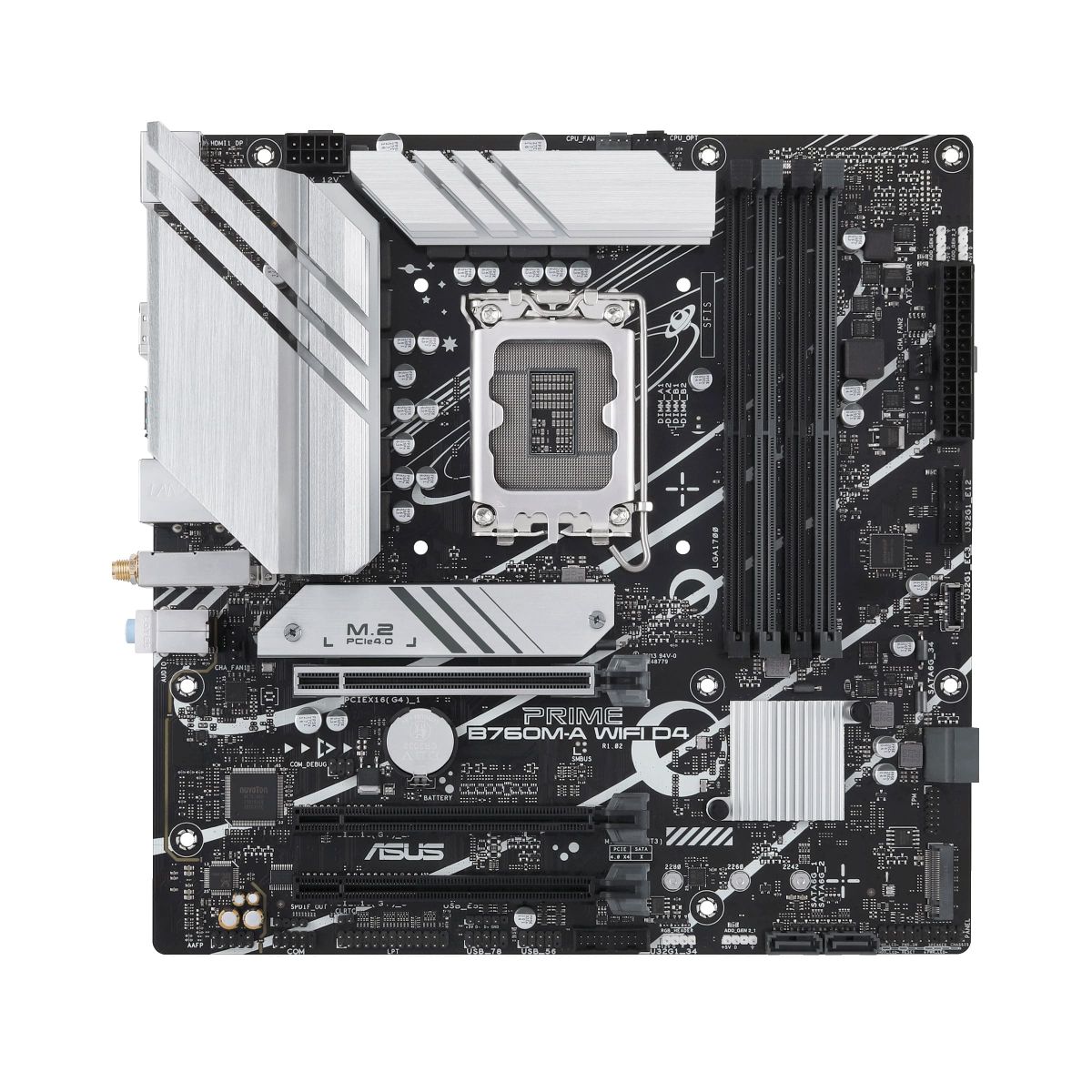

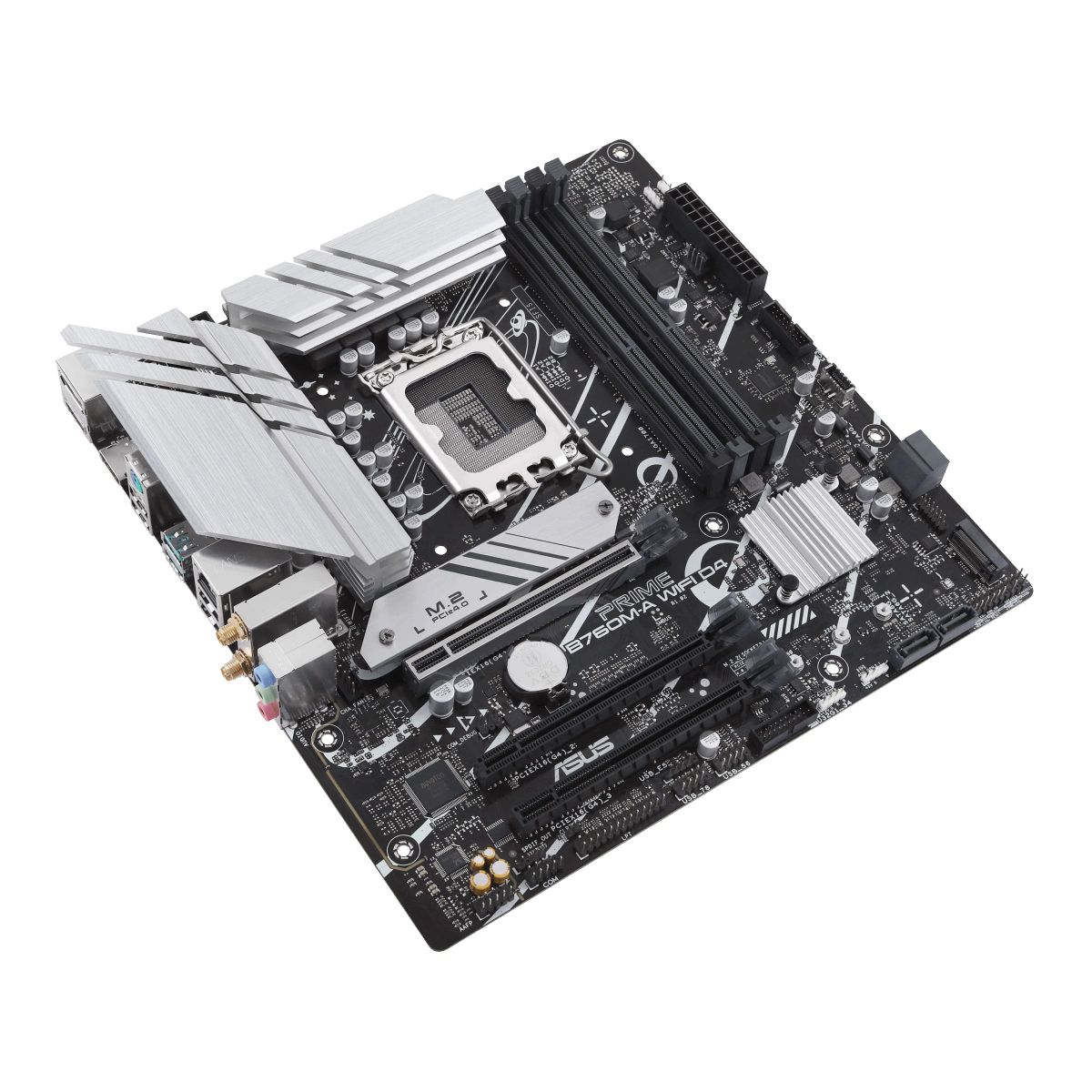

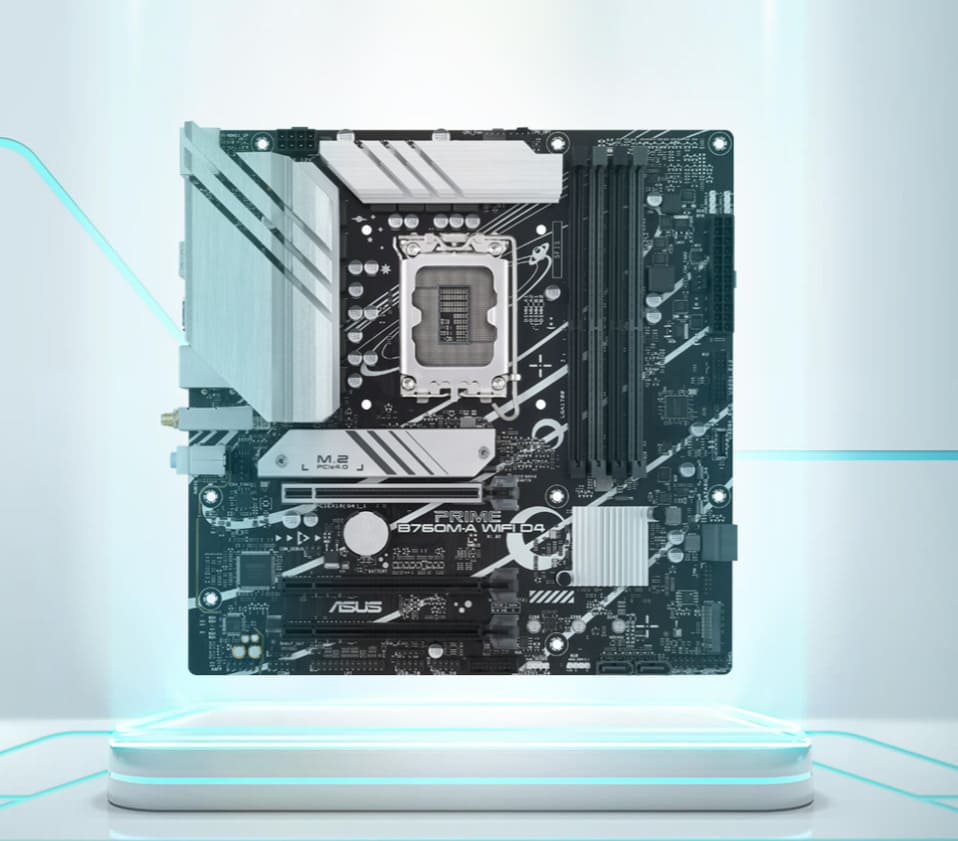

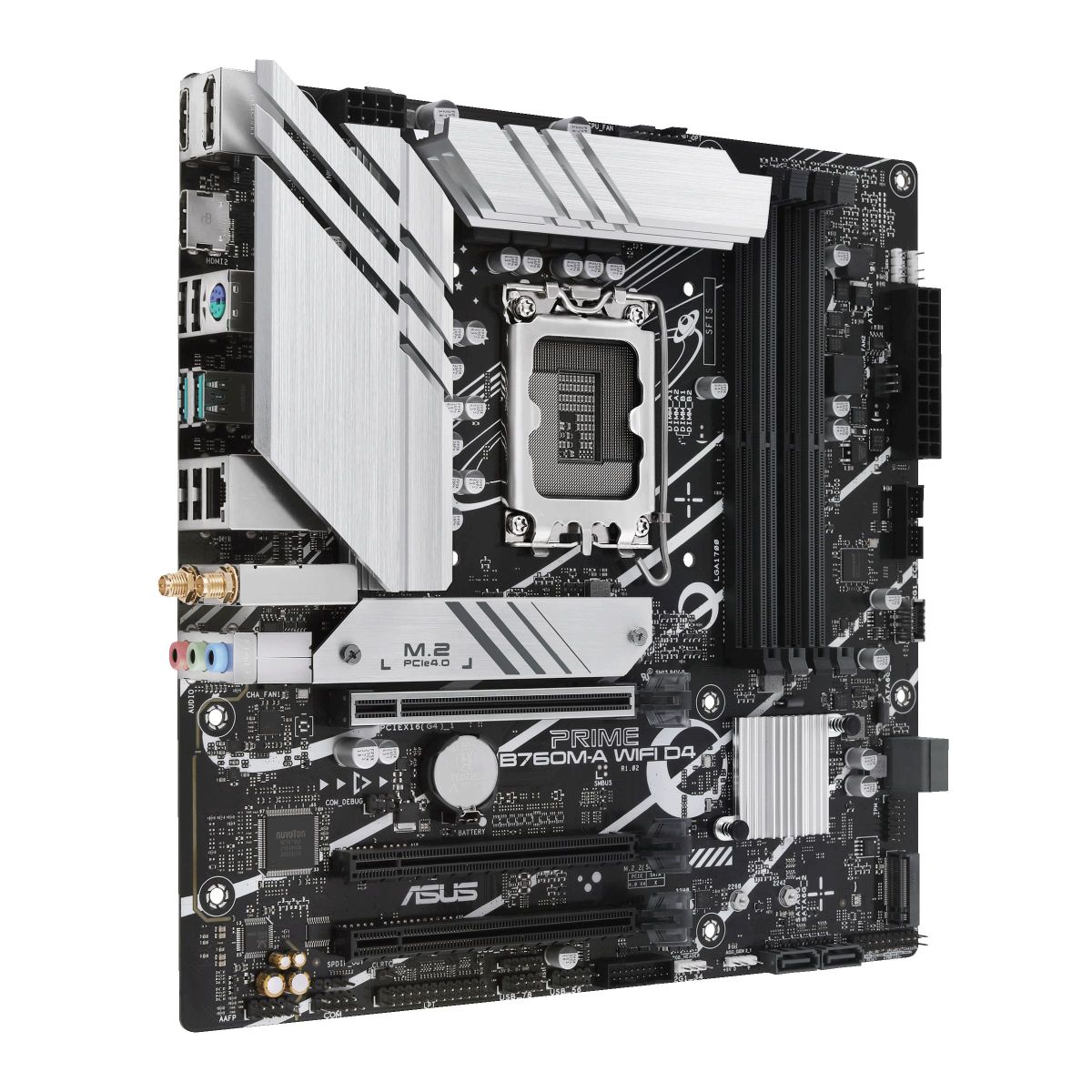

Mainboard Asus PRIME B760M-A WIFI

CPU hỗ trợ

• Intel Core 12th/ 13th/ Intel Pentium Gold và Celeron

• Socket LGA1700

Chipset

Intel B760

Hỗ trợ Ram

4 x DDR5 7200+(OC)/7000(OC)/ 6800(OC) /6600(OC)/ 6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC (Maximum 128GB)

Khe cắm mở rộng

• Intel Core 13th & 12th: 1 x PCIe 4.0 x16

• Intel B760 chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) & 1 x PCIe 4.0 x16 slot (supports x1 mode)

Hỗ trợ ổ cứng

• 2 x M.2 2242/2260/2280 PCIe 4.0 x4

• 4 x SATA III 6Gbps

• Support Raid 0, 1, 5, 10

LAN/Wireless

• LAN: 1 x Realtek 2.5Gb Ethernet

• Wireless: Intel Wi-Fi 6 + BT 5.2

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

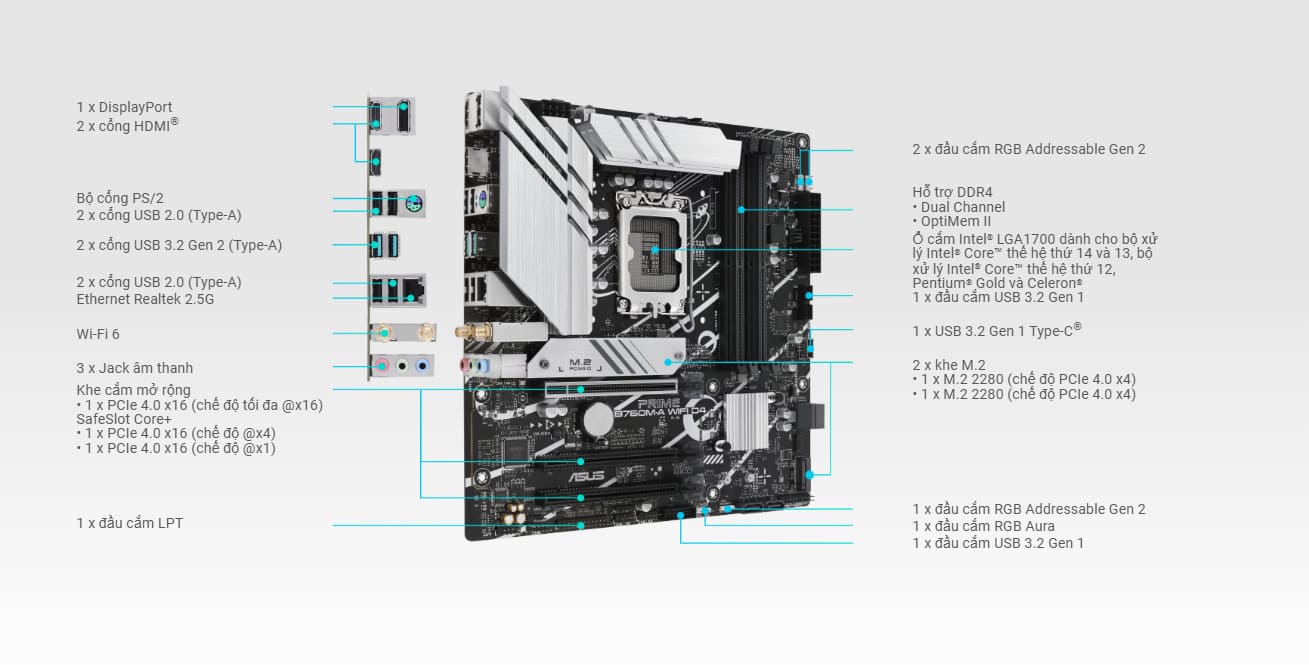

Cổng kết nối bên trong

Fan and cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

Power

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

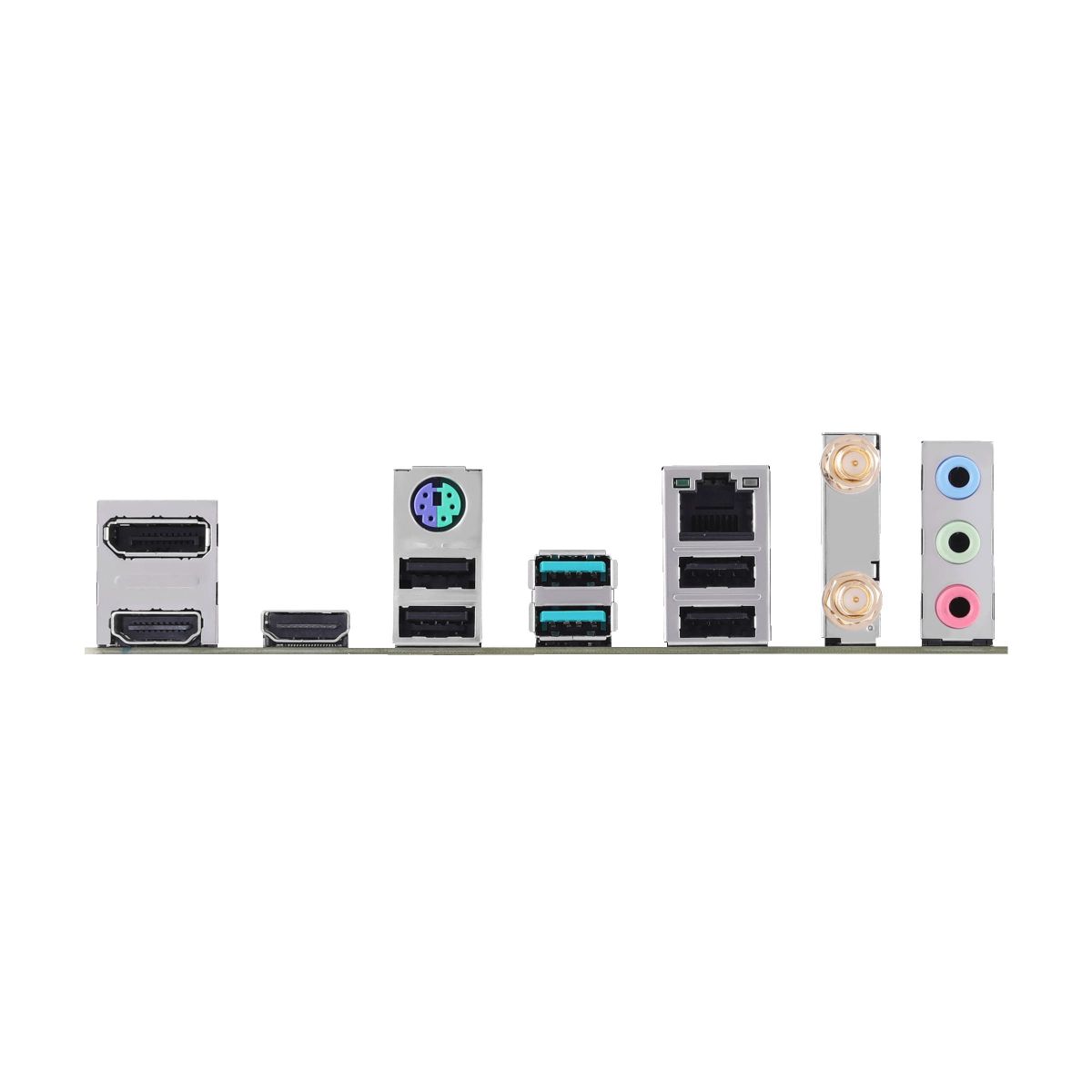

Cổng kết nối phía sau

2 x USB 3.2 Gen 2 Type-A ports

4 x USB 2.0 Type-A ports

1 x DisplayPort

2 x HDMITM ports

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Kiểu dáng

mATX (244 mm x 244 mm)
