Mainboard Asrock X670E PG Lightning | AM5

  • Tên sản phẩm: Mainboard Asrock X670E PG Lightning | AM5
  • Socket: AM5
  • Chipset: AMD X670
  • Số khe RAM: 4 x DIMM, Tối đa 128GB, DDR5
  • Khe cắm ổ cứng: 4 x M.2 slots and 4 x SATA3
  • Số khe mở rộng: 1 PCIe 5.0 x16 | 2 PCIe 4.0 x16 | 1 PCIe 4.0 x1 | 1 M.2 Key-E for WiFi
  • Tiêu chuẩn: ATX
  • Kích thước: 30.5 cm x 24.4 cm
  • Phần mềm hỗ trợ: ASRock Motherboard Utility (A-Tuning)/ ASRock Phantom Gaming LAN Software/ ASRock Polychrome SYNC
Tình trạng: Còn hàng
  • Mã sản phẩm: 028B4FE7A7
  • Bảo hành: 36 tháng

7,130,000đ

Mua ngay

Địa chỉ: 52 Trần Minh Quyền, Phường 11, Quận 10, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 9h30 - 20h30

Hotline: 0.888.000.112

  • Thông số kỹ thuật
  • Unique Feature
    Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    Rock-Solid Durability
    - Server-Grade Low-Loss PCB
    - 14+2+1 Power Phase, 70A SPS for VCore+SOC
    - Pre-Installed I/O Shield
    Ultrafast Connectivity
    - 2.5G LAN
    - ASRock Lightning Gaming Ports
    EZ Update
    - BIOS Flashback Button
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    -     ASRock Post Status Checker
  • CPU
    - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • Chipset
    - AMD X670
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)*
    - Max. capacity of system memory: 128GB
    - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Phantom Gaming LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
  • Slots
    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors


    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~4/WP support the fan power up to 2A (24W)
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

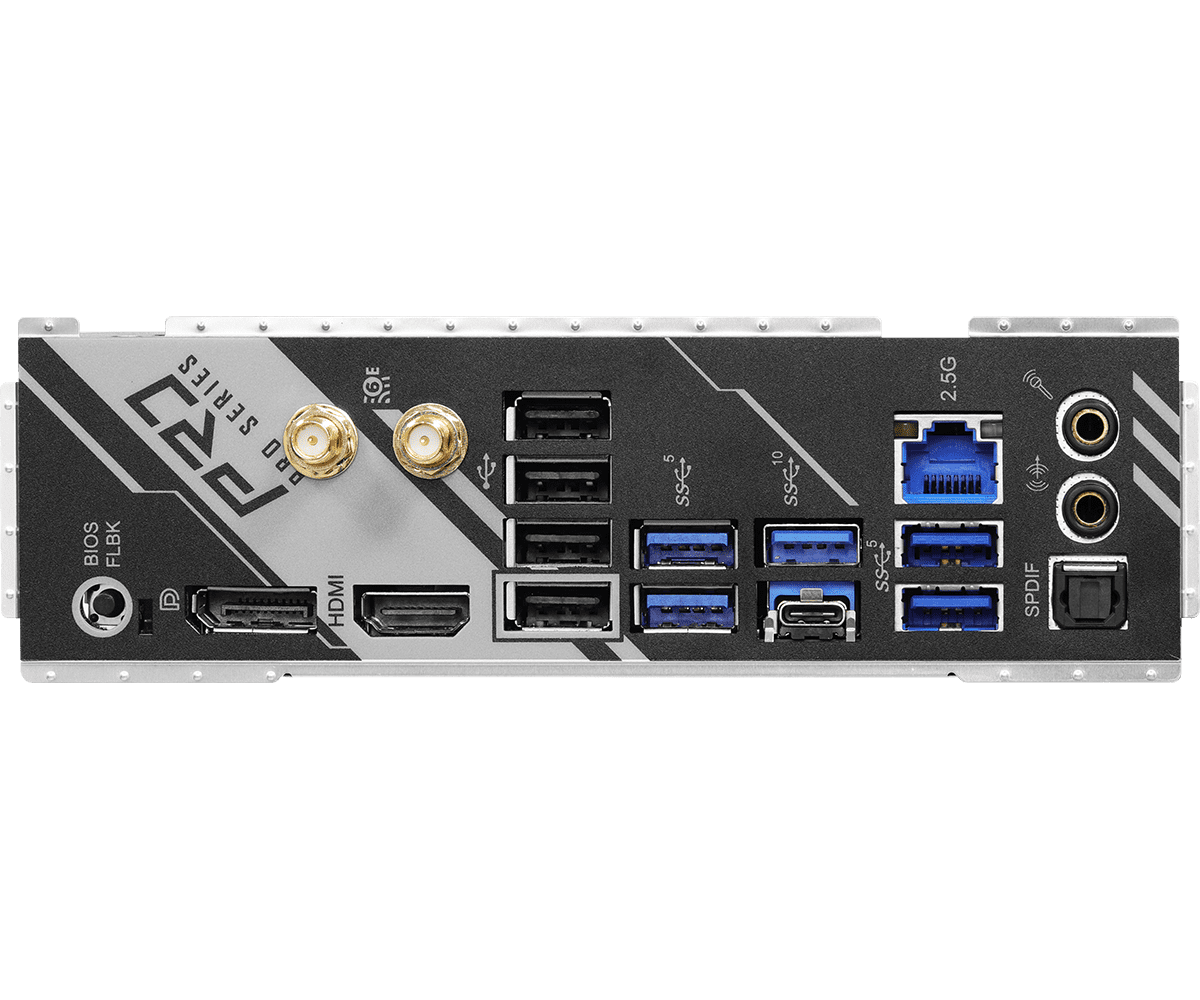

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

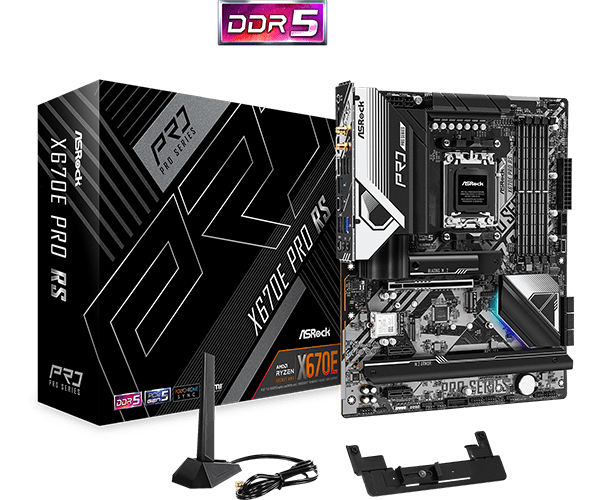

  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 4 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 8 Layer PCB
  • OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
