ASROCK

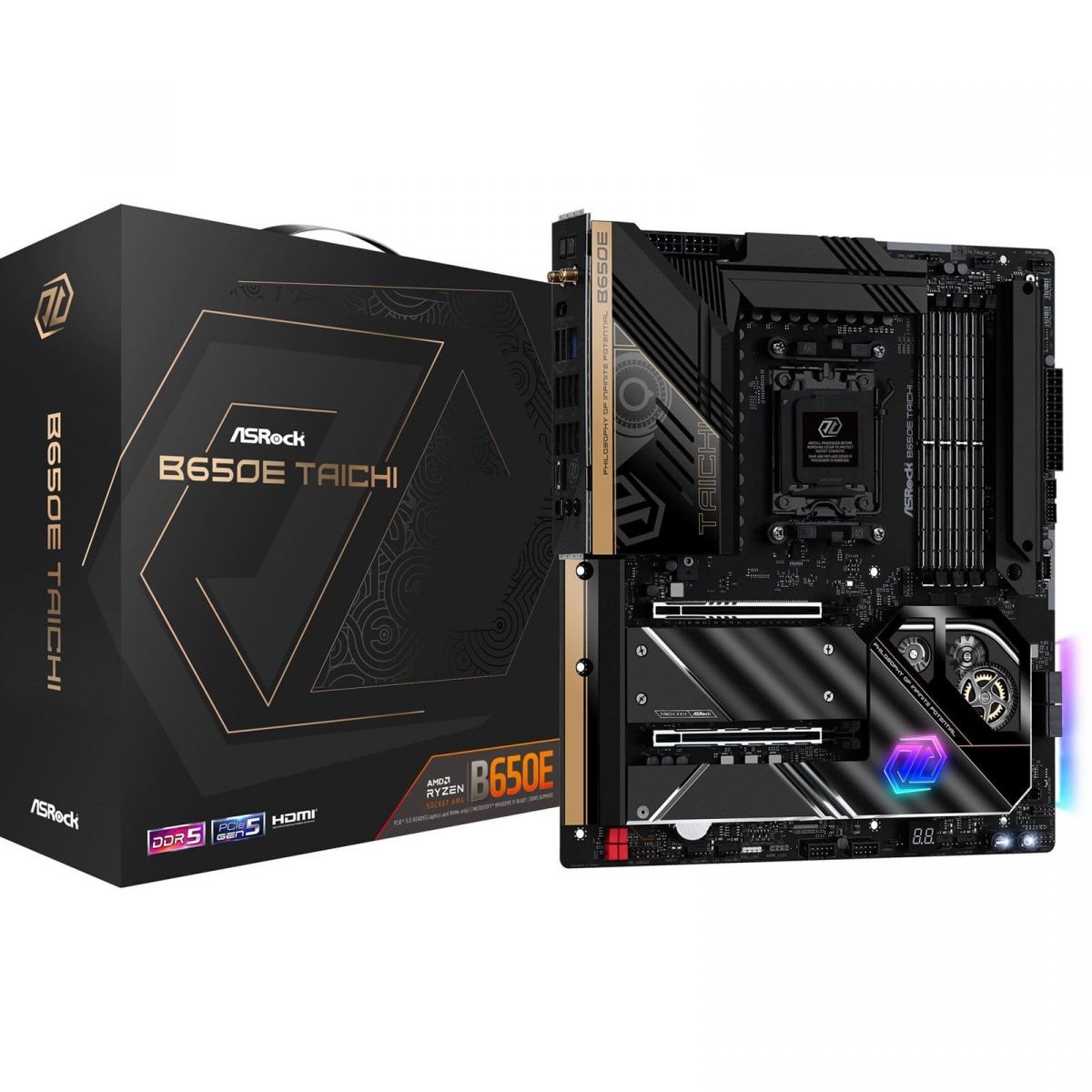

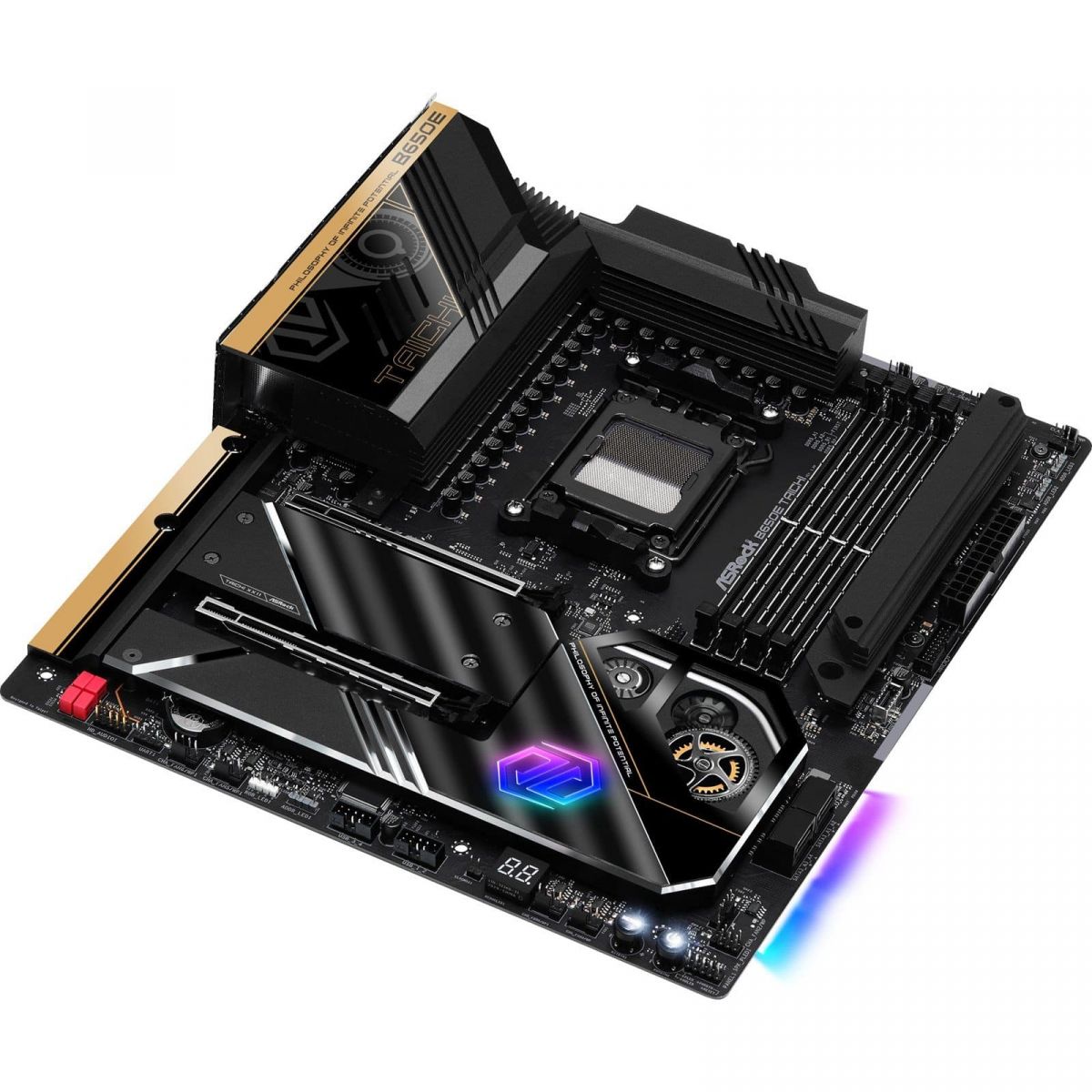

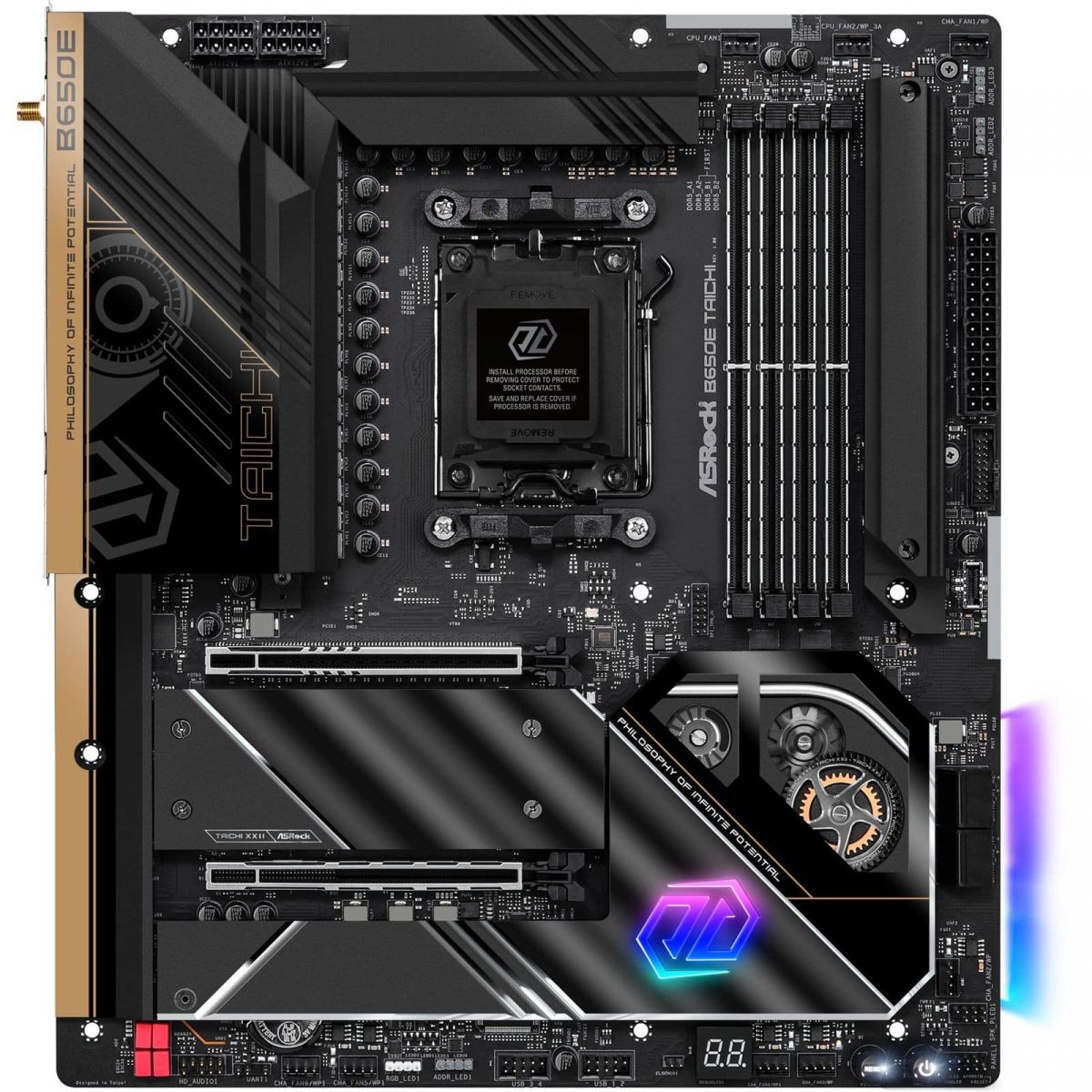

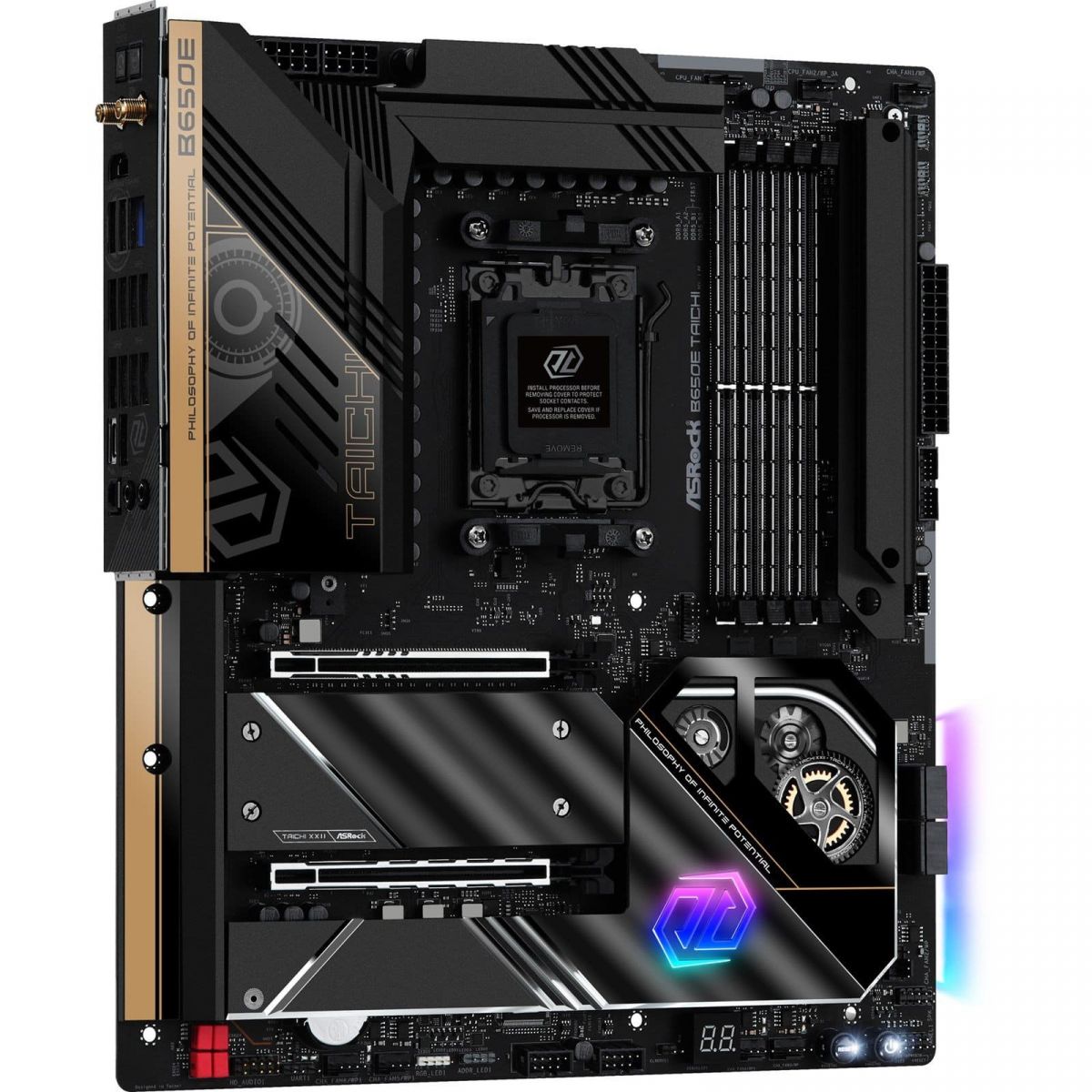

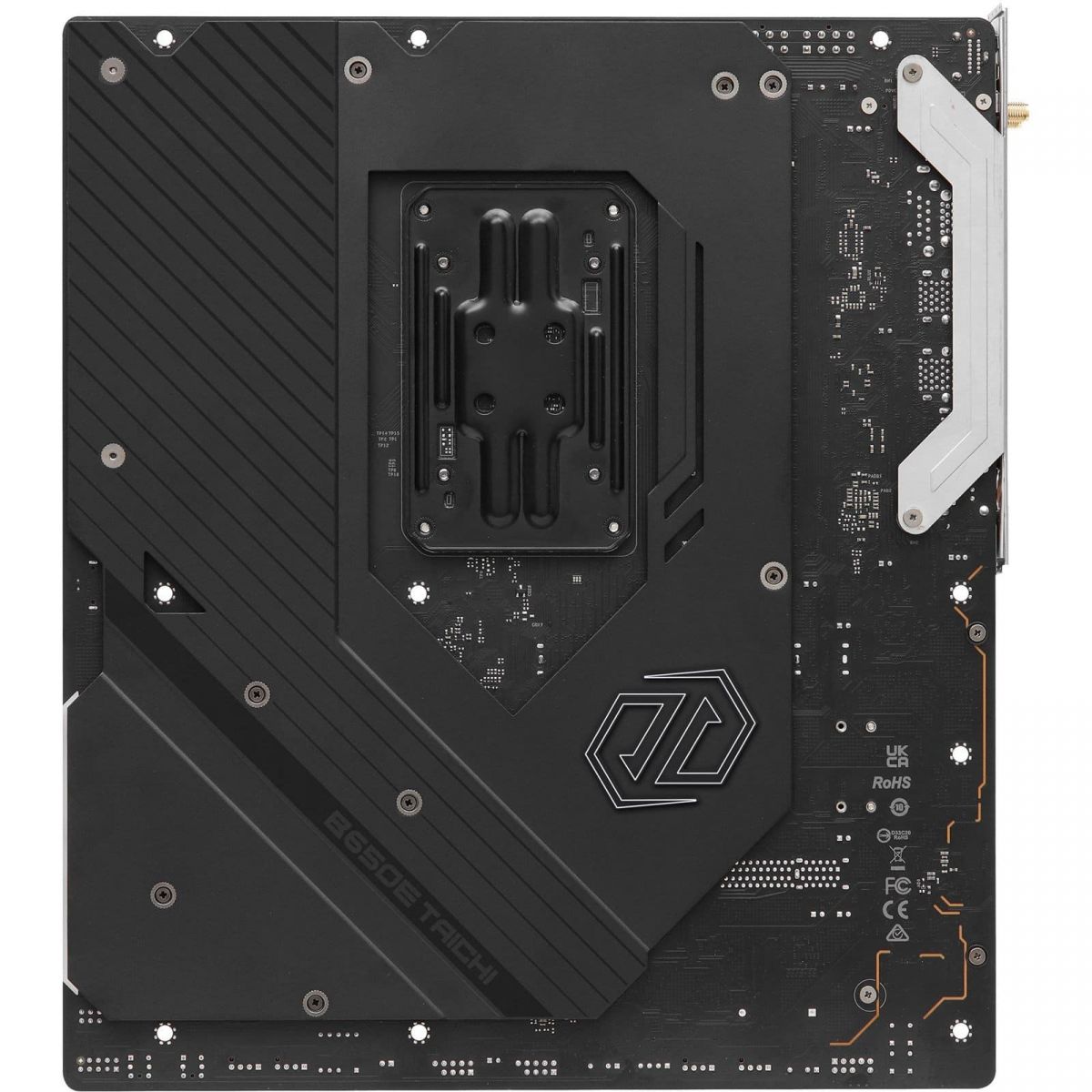

Mainboard Asrock B650E Taichi | AM5 - DDR5
- Tên sản phẩm: Mainboard Asrock B650E Taichi
- Socket: AM5
- Chipset: B650E
- Số khe RAM: 4x DDR5 DIMM, Dung lượng bộ nhớ tối đa 128GB
- Khe cắm ổ cứng: 3 x Khe cắm M.2 & 4x Cổng SATA III
- Số khe mở rộng: 5 x Khe cắm PCI-E
- Tiêu chuẩn: eATX
- Kích thước: 305.00 mm x 266.70 mm
Tình trạng: Còn hàng
- Mã sản phẩm: 2ED173627C
- Bảo hành: 36 tháng
14,399,000đ
Địa chỉ: 495/8/37 Tô Hiến Thành, Phường Diên Hồng, Tp Hồ Chí Minh
Thời gian: Thời gian bán hàng từ 9h30 - 20h30
Hotline: 0.888.000.112
- Thông số kỹ thuật
| CPU | |
| CPU Socket | Socket AM5 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Socket AM5 Ryzen 7000 Series Processors |
| 64-bit Support | Yes |
| Socket | AM5 |

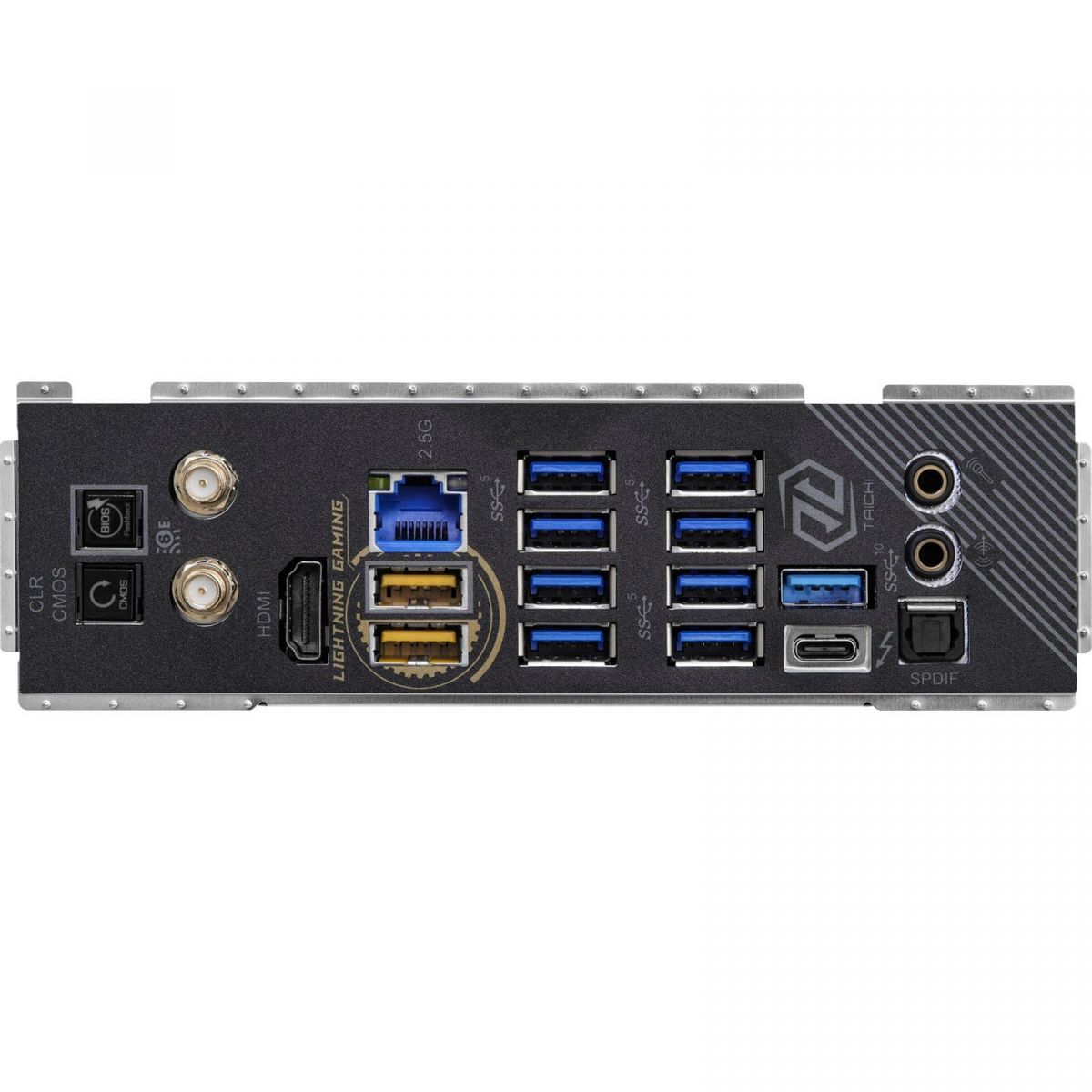

| Rear Panel I/O Ports | |
| USB Ports | 1 x USB-C 4.0 3 x USB 3.1 8 x USB 3.0 |
| DisplayPorts | Supported via USB-C 4.0 |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antenna |
| Internal I/O Connectors | |
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Speaker | 1 x Speaker header |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x CPU/Water Pump fan header 6 x Chassis/Water Pump fan headers |
| TPM Header | 1 x SPI TPM header |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS |
| Other Connectors |
1 x M.2 slot, Key M, Type 2230/2242/2260/228/22110 (PCIe Gen5) |
| Memory | |
| Memory Bus Speed | Up to 6400+ (OC) MHz |
| Memory Type | DDR5 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
| Motherboard | |
| Northbridge | B650E |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
| Expansion | |
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 1 x PCI Express 4.0 x16 slot (@ x4) |
| Graphics Device | |
| Integrated Graphics Supported | Yes |
| Sound | |
| Integrated Sound | Realtek ALC4082 |
| Warranty | |
| Warranty | 3 Years |
| Network | |
| Integrated Network | Killer E3100G |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6E) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.2 |
| System Requirements | |
| Operating Systems Supported | Microsoft Windows 11 64-bit |
| System | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| Physical | |
| Form Factor | E-ATX Motherboard |
| In The Box | Motherboard 1 x User Manual 4 x SATA Data Cables 1 x Wireless Dongle USB Bracket 1 x ASRock WiFi 2.4/5/6 GHz Antenna 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
| Width | 305 mm |
| Length | 267 mm |
| Key Features | |
| Firewire | |
| IDE/EIDE Supported | |
| SCSI/SAS Supported | |
| Wireless Network | Yes |
| Chipset Manufacturer | AMD |
| Number of PCI Slots | slot(s) |
| Number of PCI-X Slots | slot(s) |
| Main Colour | |
| Socket(s) | |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 12 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | eATX |
| Wake on LAN | |
| Motherboard Power Connectors | 8 + 8-Pin |
| Motherboard Chipset | AMD B650E |
| Thunderbolt | No |
| Motherboard Model | ASRock B650E Taichi |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| Cooler Height | mm |
| M.2 Support | Yes |
| On-board RGB Control | ASRock RGB LED |
| Memory Speed | 6400 MHz |
| Skip Audio Test | |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Radiator Length | mm |
| Microsoft Processor List | |
| Power Requirement (auto) | 100 W |
| Cooler count | |
| Max Memory Speed Supported (Non-overclocked) | 4800 MHz |
| Max Memory Speed Supported (overclocked) | 6400 MHz |
| CPU Power Pins (female) | 16 |
|
PCI Express Power Pins (female) |
|
| Total M.2 Slots | 3 |
| Maximum NVMe M.2 ports | 3 |
| PCI-e slots | |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
