ASROCK
Mainboard Asrock B650E PG Riptide Wifi | AM5 - DDR5
- Tên sản phẩm: Mainboard Asrock B650E PG Riptide Wifi
- Socket: AM5
- Chipset: B650E
- Số khe RAM: 4x DDR5 DIMM, Dung lượng bộ nhớ tối đa 128GB
- Khe cắm ổ cứng: 3 x Khe cắm M.2 & 4x Cổng SATA III
- Số khe mở rộng: 2 x Khe cắm PCI-E
- Tiêu chuẩn: ATX
- Kích thước: 305.00 mm x 24.4 mm
Tình trạng: Còn hàng
- Mã sản phẩm: 5E164E02C0
- Bảo hành: 36 tháng
7,399,000đ
Địa chỉ: 52 Trần Minh Quyền, Phường 11, Quận 10, Tp Hồ Chí Minh
Thời gian: Thời gian bán hàng từ 9h30 - 20h30
Hotline: 0.888.000.112
- Thông số kỹ thuật
| SPECIFICATIONS | |
| Brand | ASRock |
| Series | Phantom Gaming |
| Model | B650E PG Riptide WiFi |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 / B650E |
| Memory Support | |
| AMD Ryzen 7000 Series | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots Up to 128GB | |
| Supports DDR5 non-ECC, un-buffered memory up to 6600MT/s (OC) | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Integrated AMD RDNA 2 graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical Slot (PCIE1) |
| 1x PCIe 3.0 x16 Physical, x4 Electrical Slot (PCIE3) | |
| AMD B650E Chipset | 1 x PCIe 4.0 x1 Physical Slot |
| Supports AMD CrossFire | |
| Supports NVMe SSD as boot disk | |
| Storage | |
| CPU Direct | 1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| AMD B650E Chipset | 1x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes |
| 1x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 2x SATA3 6.0 Gb/s Connectors | |
| ASMedia ASM1061 Chipset | 2x SATA3 6.0 Gb/s Connectors |
| Supports ASRock U.2 Kit | |
| Supports RAID 0 and RAID 1 for SATA storage devices | |
| Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Requires additional M.2 NVMe expansion cards to support RAID 10 | |
| Networking | |
| LAN | Intel Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Killer LAN Software | |
| WiFi | AMD WiFi 6E 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Nahimic Audio | |

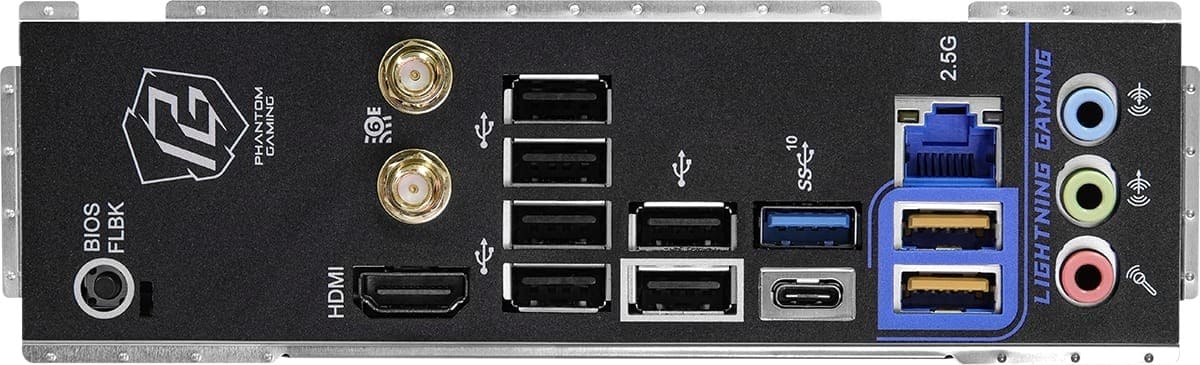

| Connectivity | |
| Ports | 2x Antenna Ports |
| 1x HDMI Port | |
| 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| 2x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports) | |
| 6x USB 2.0 Ports | |
| 1x RJ-45 LAN Port | |
| 1x BIOS Flashback Button | |
| 2x 3.5mm HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Buttons | 1x BIOS Flashback Button |
| General | |
| Internal Connectors | 1x SPI TPM Header |
| 1x Power LED and Speaker Header | |
| 1x RGB LED Header | |
| 3x Addressable LED Headers | |
| 1x CPU Fan Connector (4-pin) | |
| 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1x 24 pin ATX Power Connector | |
| 1x 8 pin 12V Power Connector | |
| 1x 4 pin 12V Power Connector | |
| 1x Front Panel Audio Connector | |
| 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
| 2x USB 2.0 Headers (Support 3 USB 2.0 ports) | |
| 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |
| LED Displays | ASRock LED Diagnostic Display |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 1x User Manual |
| 2x SATA Data Cables | |
| 2x ASRock WiFi 2.4/5/6 GHz Antennas | |
| 2x Screws for M.2 Sockets | |
| 1x Graphics Card Holder | |
| 1x Standoff for M.2 Socket | |
| 1x Graphics Card Holder | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
