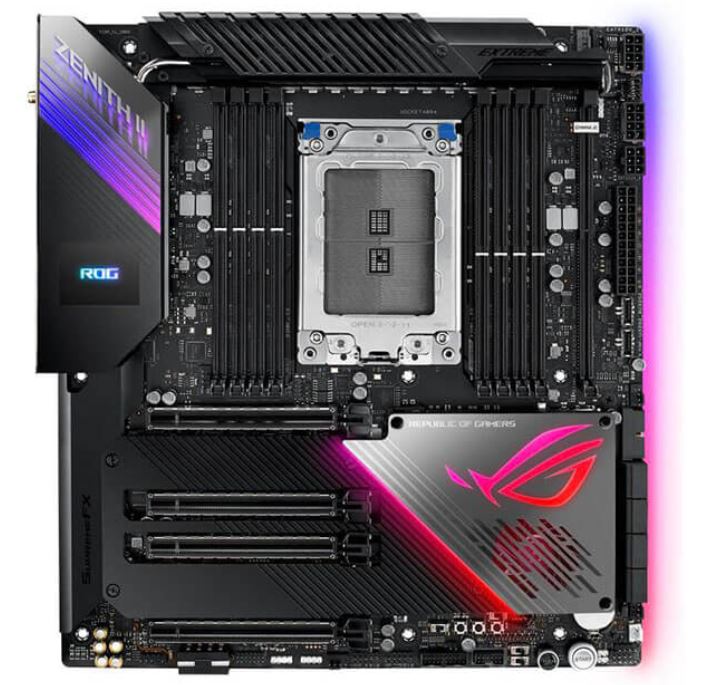

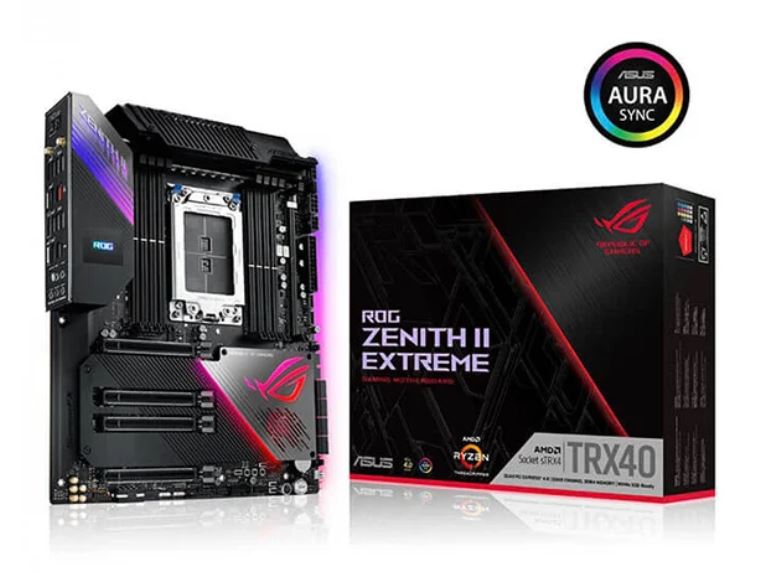

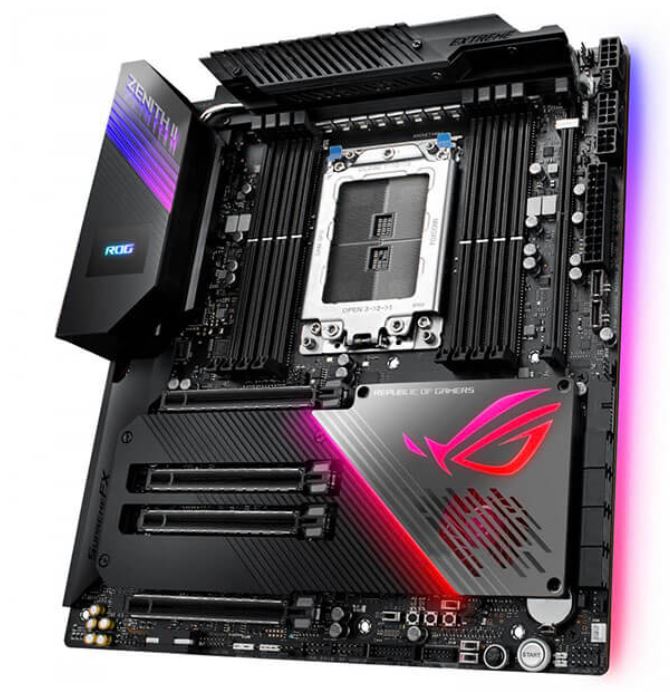

ASUS ROG Zenith II Extreme

PU

 AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
 Refer to www.asus.com for CPU support list

 Chipset

 AMD TRX40

  Bộ nhớ

 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors

 8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered   Memory

  Multi-GPU Support

 Supports NVIDIA® 2-Way SLI® Technology

 Supports AMD 2-Way CrossFireX Technology

  Expansion Slots

 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors

 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)

  Storage

 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :

 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage   devices support(SATA & PCIe 4.0 x4 mode)

 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1

 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :

 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2

 Support Raid 0, 1, 10

 AMD TRX40 chipset :

 4 x SATA 6Gb/s port(s),

 ASMedia® SATA 6Gb/s controller :

 4 x SATA 6Gb/s port(s),

  LAN

 Intel® I211-AT, 1 x Gigabit LAN Controller(s)

 Aquantia AQC-107 10G

 Anti-surge LANGuard

 ROG GameFirst V Technology

  Wireless Data Network

 Intel® Wi-Fi 6 AX200

 Wi-Fi 802.11 ax, Bluetooth® 5.0

 Supports dual band frequency 2.4/5 GHz

 Supports 2x2 MU-MIMO

 Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output 108 dB SNR recording input

- ESS® ESS9018Q2C

Audio Feature :

- SupremeFX Shielding™ Technology

- Sonic Studio III + Sonic Studio Virtual Mixer

- DTS® Sound Unbound

LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Sonic Radar III

USB Ports

3rd Gen AMD Ryzen™ Threadripper™ Processors :

4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)

AMD TRX40 chipset :

2 x USB 3.2 Gen 2 front panel connector port(s)

AMD TRX40 chipset :

3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C)

AMD TRX40 chipset :

3 x USB 2.0 port(s)

ASMedia® USB 3.2 Gen 1 controller :

8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)

ASMedia® USB 3.2 Gen2x2 controller :

1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)

ROG Exclusive Features

ROG Exclusive Software

- RAMCache III

- CPU-Z

- GameFirst V

- Sonic Studio III + Sonic Studio Link

- Sonic Radar III

- Overwolf

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :

- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

Gamer's Guardian:

- DRAM Overcurrent Protection

- 10K Black Metallic Capacitors

- DIGI+ VRM

- SafeSlot

- ESD Guards on LAN, Audio,and USB ports

LiveDash OLED 1.77 ”

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

- Addressable Gen 2 Header

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger+

- Pre-mounted I/O Shield

- ASUS EZ Flash 3

- ASUS C.P.R.(CPU Parameter Recall)

- BIOS FlashBack™ Button

- Clear CMOS Button

ASUS Q-Design :

- ASUS Q-Code

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Digi+VRM

MemOK! II

Armoury Crate

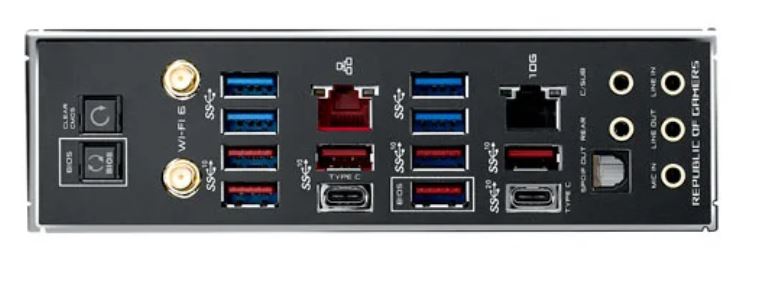

Back I/O Ports

1 x LAN (RJ45) port(s)

1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C)

4 x USB 3.2 Gen 1 blue

5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C)

1 x Optical S/PDIF out

1 x Clear CMOS button(s)

5 x LED-illuminated audio jacks

1 x Aquantia AQC-107 10G LAN port

1 x USB BIOS FlashBack™ Button(s)

Internal I/O Ports

2 x Aura RGB Strip Header

2 x Addressable Gen 2 header(s)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode)

1 x TPM header

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x H_AMP fan connector

2 x W_PUMP+ connector

1 x WB_SENSOR

1 x 6-pin EATX 12 V Power connector

1 x 24-pin EATX Power connector(s)

2 x 8-pin EATX 12V Power connectors

1 x 4-pin EZ_PLUG Power connector(s)

1 x Front panel audio connector(s) (AAFP)

7 x ProbeIt Measurement Points

1 x BIOS Switch button(s)

1 x Node Connector(s)

1 x LN2 Mode jumper(s)

1 x Safe Boot button

1 x ReTry button

1 x W_IN header

1 x W_OUT header

1 x W_FLOW header

2 x USB 3.2 Gen 2 front panel connector

1 x Speaker connector

1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)

1 x RSVD Switch

1 x Start button

1 x FlexKey button

1 x FS Mode switch

1 x M.2_3 cold storage Switch

1 x Chipset Fan Header

1 x VRM_HS_FAN Header

1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Hệ điều hành

Support for Windows 10 64-bit

Kích Thước

Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )
